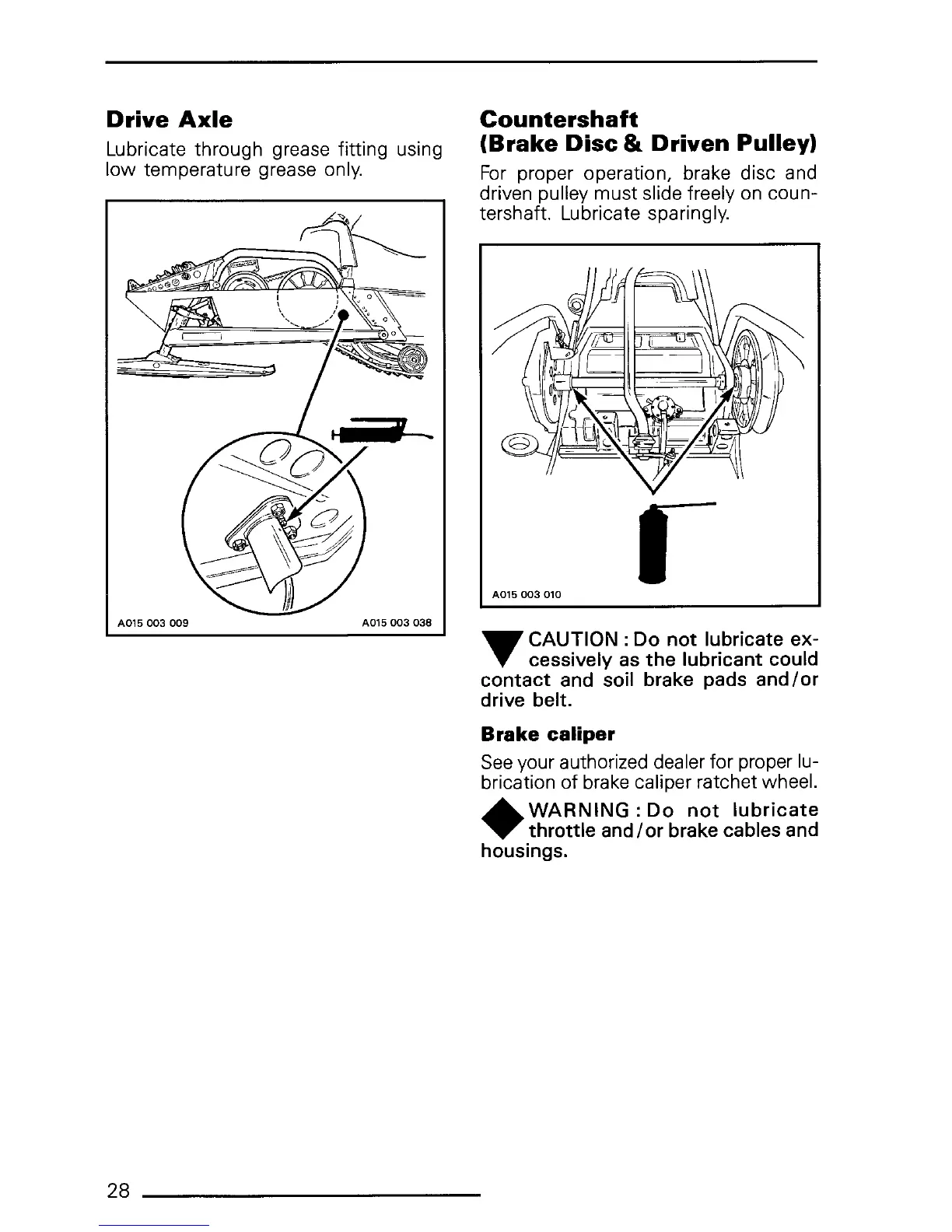

Drive
Axle
Lubricate through grease fitting using
low temperature grease
only.
28
Countershaft
(Brake
Disc
&
Driven
Pulley)
For
proper operation, brake disc and
driven pulley must slide freely
on
coun-
tershaft. Lubricate sparingly.
r
A015
003
010
"1llr CAUTION :
Do
not
lubricate ex-
T cessively as
the
lubricant could
contact
and soil brake pads and I
or
drive belt.
Brake
caliper
See
your authorized dealer for proper lu-
brication of brake caliper ratchet wheel.
•
WARNING:
Do
not
lubricate
throttle
and I or brake cables and
housings.
