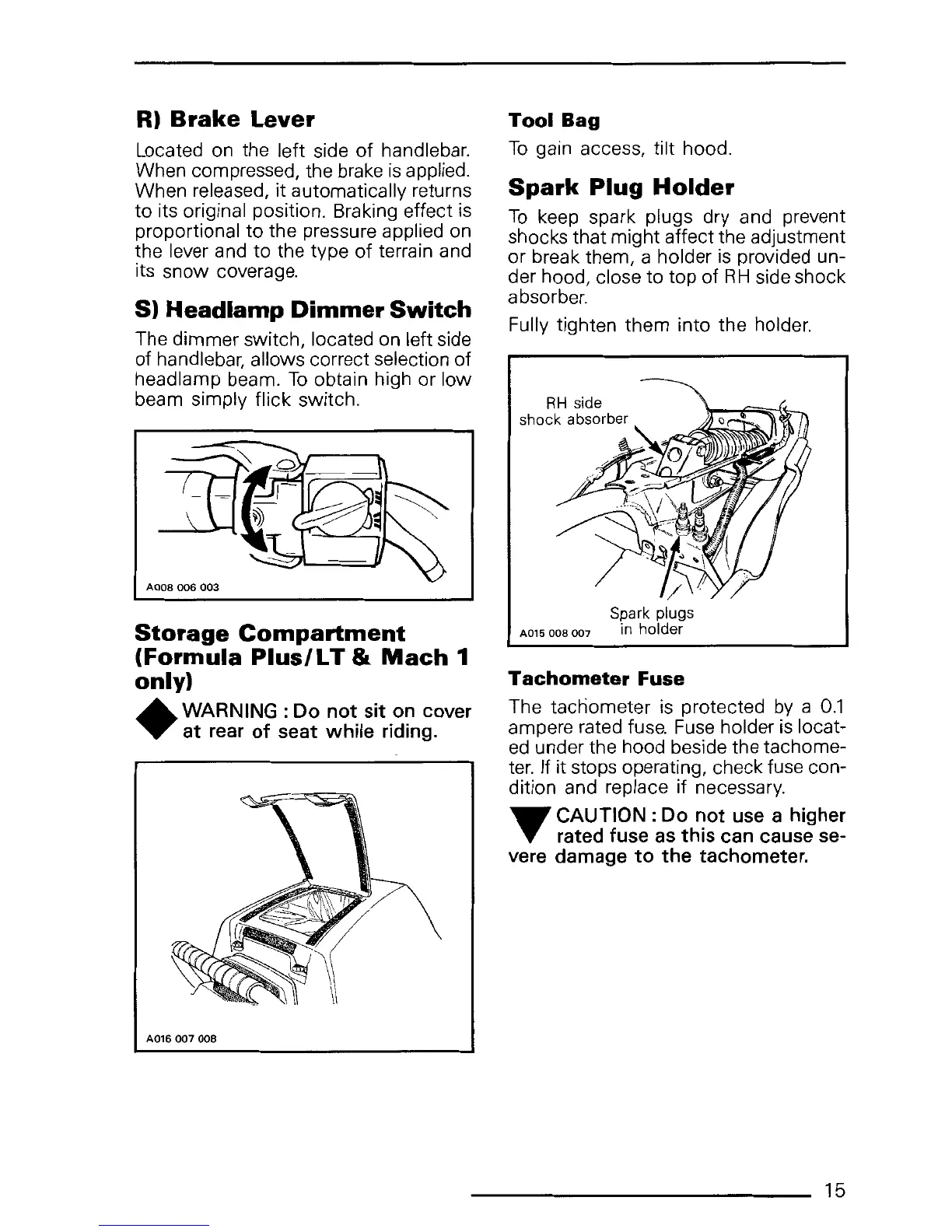

R)
Brake
Lever
Located
on
the left side
of
handlebar.
When compressed, the
brake
is
applied.
When released, it automatically returns
to its original position. Braking effect
is
proportional to the pressure applied
on
the lever and to the type
of
terrain and
its snow coverage.
S)
Headlamp
Dimmer
Switch
The dimmer switch, located
on
left side
of handlebar, allows correct selection of
headlamp beam.
To
obtain high or low
beam simply flick switch.
Storage
Compartment
(Formula
Plus/
L T &
Mach
1
only)
•
WARNING: Do not
sit
on
cover
at rear of seat while
riding.
A016
007 008
Tool
Bag
To
gain access, tilt hood.
Spark
Plug
Holder
To
keep spark plugs dry and prevent
shocks that might affect the adjustment
or break them, a holder
is
provided un-
der hood, close to top of
RH
side shock
absorber.
Fully tighten them into the holder.
A015
008 007
Spark plugs
in holder
Tachometer
Fuse
The tachometer
is
protected
by
a
0.1
ampere rated
fuse.
Fuse
holder
is
locat-
ed
under the hood beside the tachome-
ter.
If it stops operating, check fuse con-
dition and replace if necessary.
-.r
CAUTION : Do not
use
a higher
T rated fuse
as
this can cause se-
vere damage to the tachometer.
15
