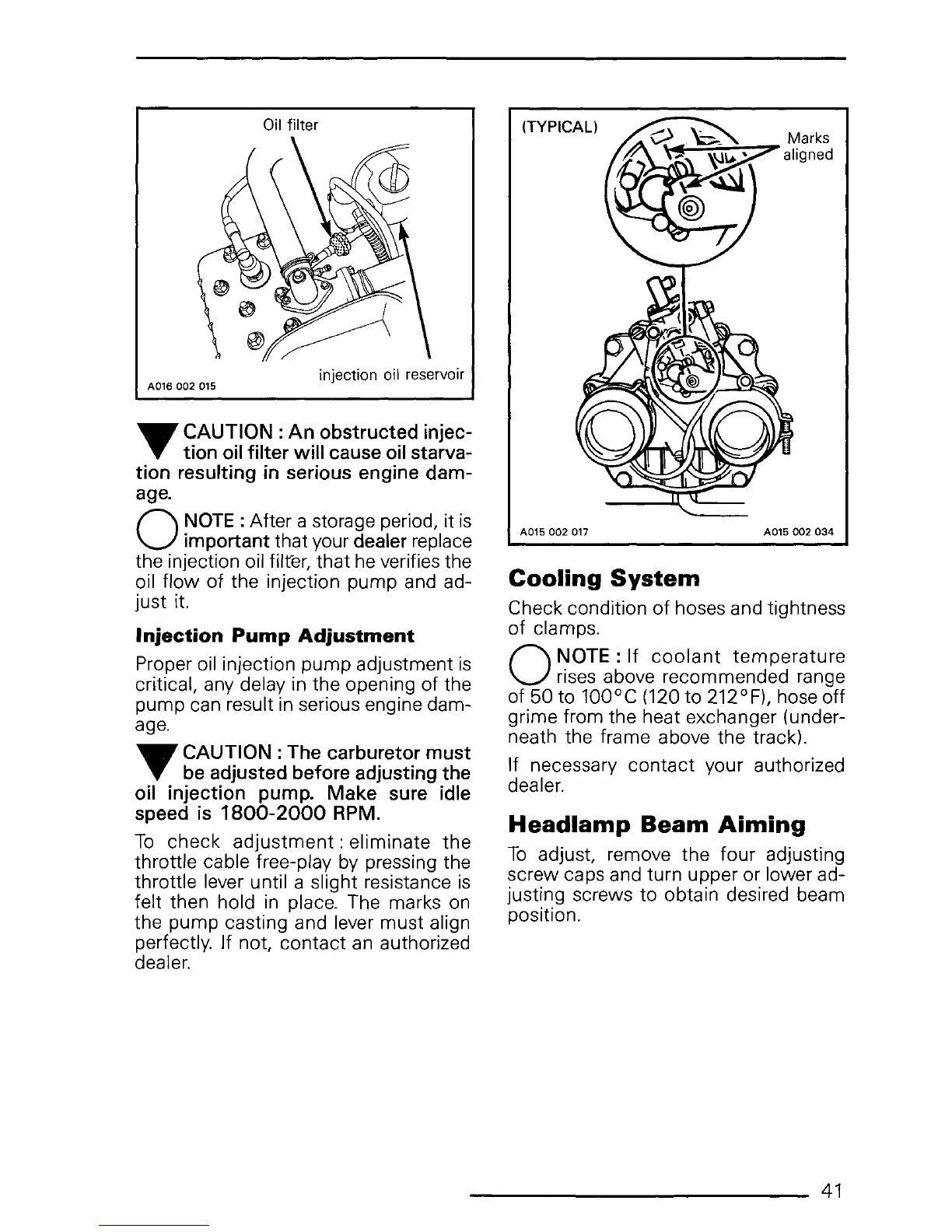

Oil
filter
A016
002
015
injection oil reservoir
,.,.
CAUTION : An obstructed injec-
T tion
oil
filter will cause
oil
starva-
tion resulting
in
serious engine dam-
age.
0
~OTE
: After a storage period, it
is
Important that your dealer replace
the injection oil filrer, that
he
verifies the
?il fl?w of the injection pump and ad-
JUSt
1t.
Injection
Pump
Adjustment
Proper oil injection pump adjustment
is
critical, any delay
in
the opening of the
pump can result
in
serious engine dam-
age.
,.,.
CAUTION : The carburetor must
"!f.
~e
a_djusted
before adjusting the
011
InJeCtion
pump. Make sure idle
speed
is
1800-2000
RPM.
To
check
adjustment:
eliminate the
throttle cable free-play
by
pressing the
throttle lever until a slight resistance
is
felt then hold
in
place. The marks
on
the pump casting and lever must align
perfectly. If not, contact
an
authorized
dealer.
(TYPICAL)
A015
002
017 A015
002
034
Cooling
System
Check condition of hoses and tightness
of
clamps.
0
NOTE:
If
coolant
temperature
rises above recommended range
of
50 to 100°C
(120
to 212°F) hose off
grime from the heat
exchang~r
(under-
neath the frame above the track).
If necessary contact your authorized
dealer.
Headlamp
Beam
Aiming
To
adjust, remove the four adjusting
screw caps and turn upper or lower ad-
justing screws to obtain desired beam
position.
41
