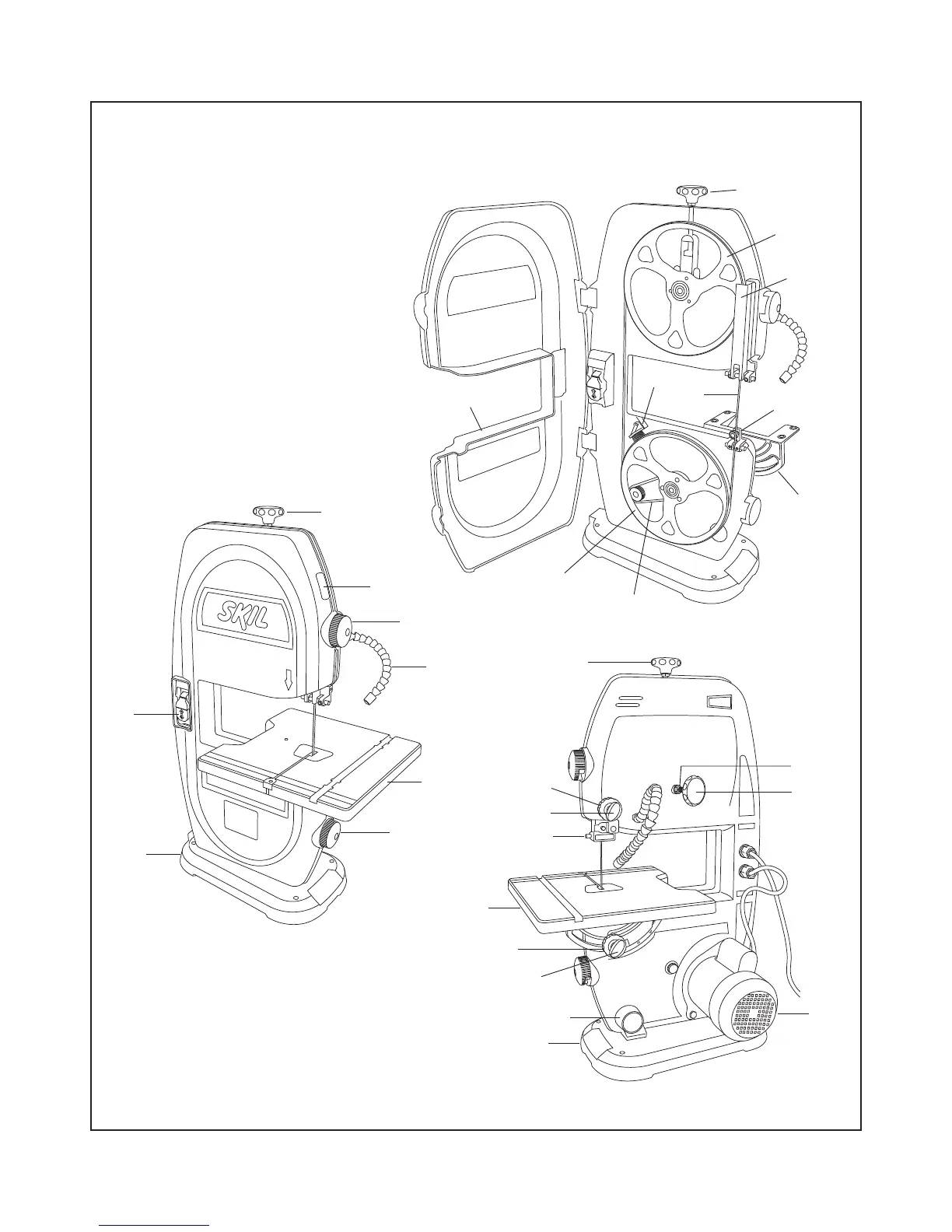

Skil 3386 - Getting to Know Your Band Saw

1 Blade tension knob
2 Blade guard
3 LED work light
4 Blade
5 Table support assembly
6 Lower blade guide
7 Drive belt
8 Lower wheel
9 Door
10 Wheel brush
11 Upper wheel
12 Blade tracking lock nut
13 Blade tracking knob
14 Motor assembly
15 Base
16 Dust port
17 Table tilt adjustment lock knob
18 Table tilt adjustment knob
19 Table
20 Upper blade guide
21 Upper blade guide lock knob
22 Upper blade guide adjustment knob
23 Upper viewing port
24 Upper door knob
25 Lower door knob
26 ON/OFF switch with safety key
