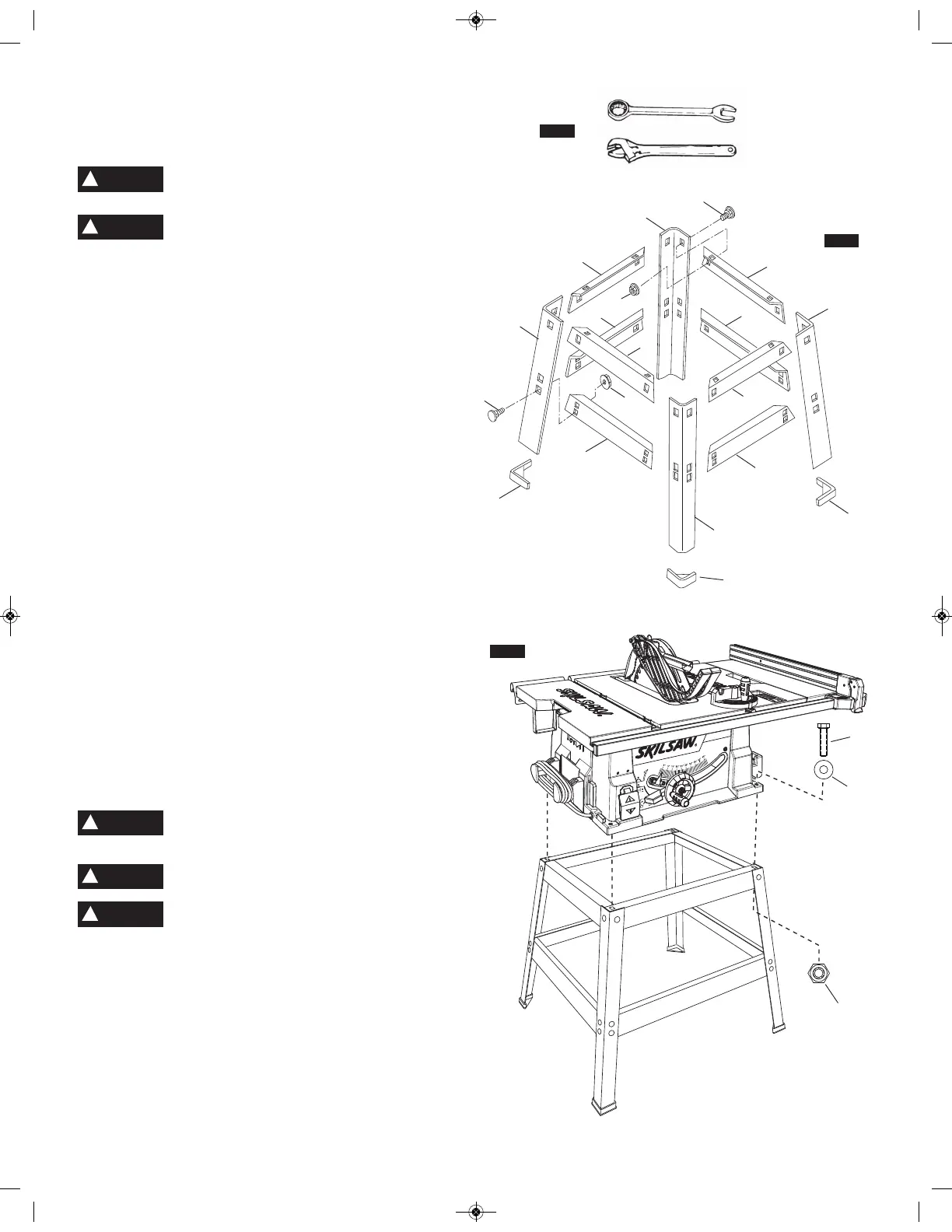

Assembling the Leg Stand
After completing adjustments, securely tighten
all fasteners. An unstable stand may shift in use
and cause serious personal injury.
The stamped rails may have sharp edges. Be
careful in handling the rails to prevent being cut.
NOTE: Use the screws 1 and lock nuts 2 supplied in the
hardware kit to attach the pieces of the leg stand together (Fig.
6). Do not tighten the hardware completely until the leg stand is
completely assembled.
The following letters are stamped on pieces for identification:
A - Legs (qty. 4).
B - Front and rear top plates (qty. 2).
C - Front and rear support plates (qty. 2).
D - Side top plates (qty. 2).
E - Side support plates (qty. 2).
1. Attach the side top plates D to the legs A.
2. Attach the side support plates E to the legs A.
3. Place the front and rear top plates B over the side top plates D
and attach to the legs A.
4. Attach the front and rear support plates C to the legs A.
5. Tap the four rubber feet 3 onto the bottom of the legs A.
Mounting the Table Saw
to the Leg Stand
NOTE: Mount the table saw to the leg stand using the hardware
supplied in the hardware kit.
1. Place the table saw onto the assembled leg stand so that the
four (4) mounting holes in the base of the saw are over
the four (4) mounting holes in the front and rear top plates
(Fig. 7).
2. Secure the table saw to the leg stand using four (4) bolts 4,
washers 5, and lock nuts 6.
IMPORTANT! When mounting the table saw to the leg stand,
DO NOT overtighten the mounting hardware.
Before operating table saw, securely fasten
table saw to stand and entire unit must be
placed on solid, level surface.
Do not stand on table saw stand or use as
ladder or scaffolding.
Do not use table saw if stand tips, slides, or
moves in any way.
