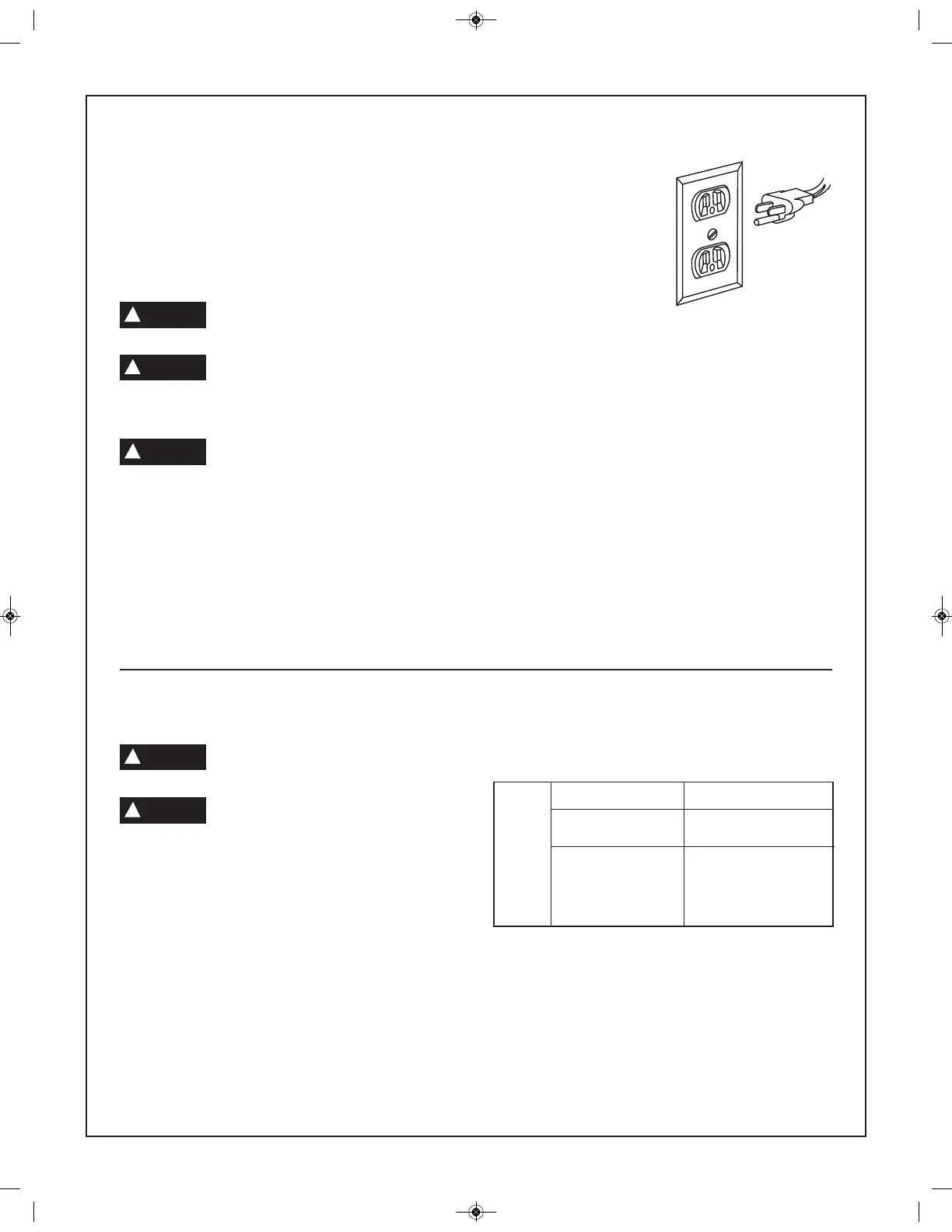

6.
Connection to a Power Source
This machine must be grounded while in use to protect the
operator from electric shock.
Plug power cord into a 110-120V properly grounded type
outlet protected by a 15-amp dual element time delay fuse or
circuit breaker.
Not all outlets are properly grounded. If you are not sure that
your outlet, as pictured on this page, is properly grounded,
have it checked by a qualified electrician.
To avoid electric shock, do not touch the
metal prongs on the plug when installing or
removing the plug to or from the outlet.
Failure to properly ground this power tool
can cause electrocution or serious shock,
particularly when used near metal plumbing or other metal
objects. If shocked, your reaction could cause your hands to
hit the tool.
If power cord is worn, cut or damaged in
any way, have it replaced immediately to
avoid shock or fire hazard.
Your unit is for use on 120 volts; it has a plug that looks like
the one shown on this page.
This power tool is equipped
with a 3-conductor cord and
grounding type plug, approved
by Underwriters Laboratories
and the Canadian Standards
Association. The ground
conductor has a green jacket
and is attached to the tool
housing at one end and to the
ground prong in the
attachment plug at the other end.
If the outlet you are planning to use for this power tool is of
the two-prong type, DO NOT REMOVE OR ALTER THE
GROUNDING PRONG IN ANY MANNER. Have a qualified
electrician replace the TWO-prong outlet with a properly
grounded THREE-prong outlet.
Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. The conductor with
insulation having an outer surface that is green with or
without yellow stripes is the equipment conductor. If repair or
replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live
terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt as to whether the tool is properly grounded.
Extension Cords
Replace damaged cords immediately.
Use of damaged cords can shock, burn or
elec trocute.
Always use proper extension cord. If an
extension cord is necessary, a cord with
adequate size con ductors should be used to prevent
excessive voltage drop, loss of power or over heating. The
table shows the correct size to use, de pending on cord
length and nameplate amperage rating of tool. If in doubt,
use the next heavier gauge. Always use U.L. and CSA listed
extension cords.
Always use proper extension cord. The use of any extension
cord will cause some loss of power. To keep this to a
minimum and to prevent overheating and motor burn-out,
use the table to determine the minimum wire size (A.W.G.)
extension cord. Use only 3-wire extension cords which have
3-prong grounding type plugs and 3-pole receptacles which
accept the toolʼs plug. Make sure your extension cord is in
good condition.
RECOMMENDED SIZES OF EXTENSION CORDS
120 VOLT ALTERNATING CURRENT TOOLS
NOTE: The smaller the gauge number, the heavier the cord.
“SAVE THESE INSTRUCTIONS”
WARNING
!
WARNING
!
Toolʼs
Ampere
Rating
Cord Size in A.W.G.
Wire Sizes in mm
2
3-6
6-8
8-10
10-12
12-16
25 50 100 150 15 30 60 120
18 16 16 14 .75 .75 1.5 2.5
18 16 14 12 .75 1.0 2.5 4.0
18 16 14 12 .75 1.0 2.5 4.0
16 16 14 12 1.0 2.5 4.0 —
14 12 — — — — — —
Cord Length in Feet Cord Length in Meters
DANGER
!
DANGER
!
DANGER
!
