Skil 5380 - Tool Description and Specs

-7-
?8->398+6/=-<3:>398+8.#:/-303-+>398=
3=-988/-> >2/ :6?1 0<97 >2/ :9A/< =9?<-/ ,/09</ 7+5381 +8C
+==/7,6C+.4?=>7/8>=9<-2+81381+--/==9<3/=. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

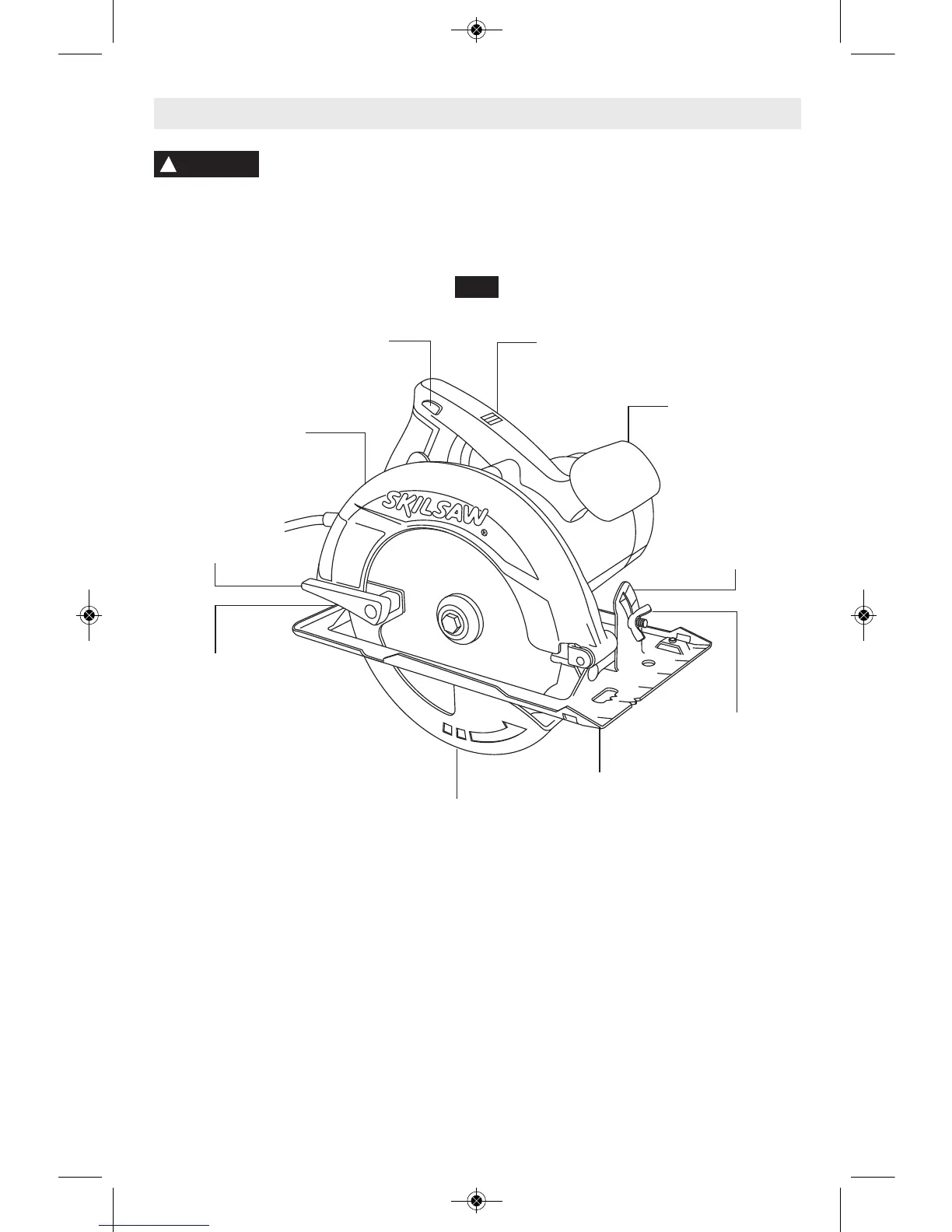

FIG. 1
LOWER GUARD
FOOT
LOWER
GUARD LIFT
LEVER
BLADE WRENCH &
STORAGE AREA
AUXILIARY
HANDLE
BEVEL
ADJUSTMENT
WING NUT
CALIBRATED
BEVEL
QUADRANT
SAFETY SWITCH
UPPER GUARD
3<-?6+<#+A=
9./68?7,/< 5380 5385 5480 5485
+B37?7+:+-3>3/=
Blade 7-1/4" 7-1/4" 7-1/4" 7-1/4"
Blade arbor hole Round Round Round Round
Depth of cut at 90° 2-7/16" 2-7/16" 2-7/16" 2-7/16"
Depth of cut at 45° 1-15/16" 1-15/16" 1-15/16" 1-15/16"
$ For tool specifications refer to the
nameplate on your tool.
POWER INDICATOR LIGHT
(Models 5480 & 5485 only)
