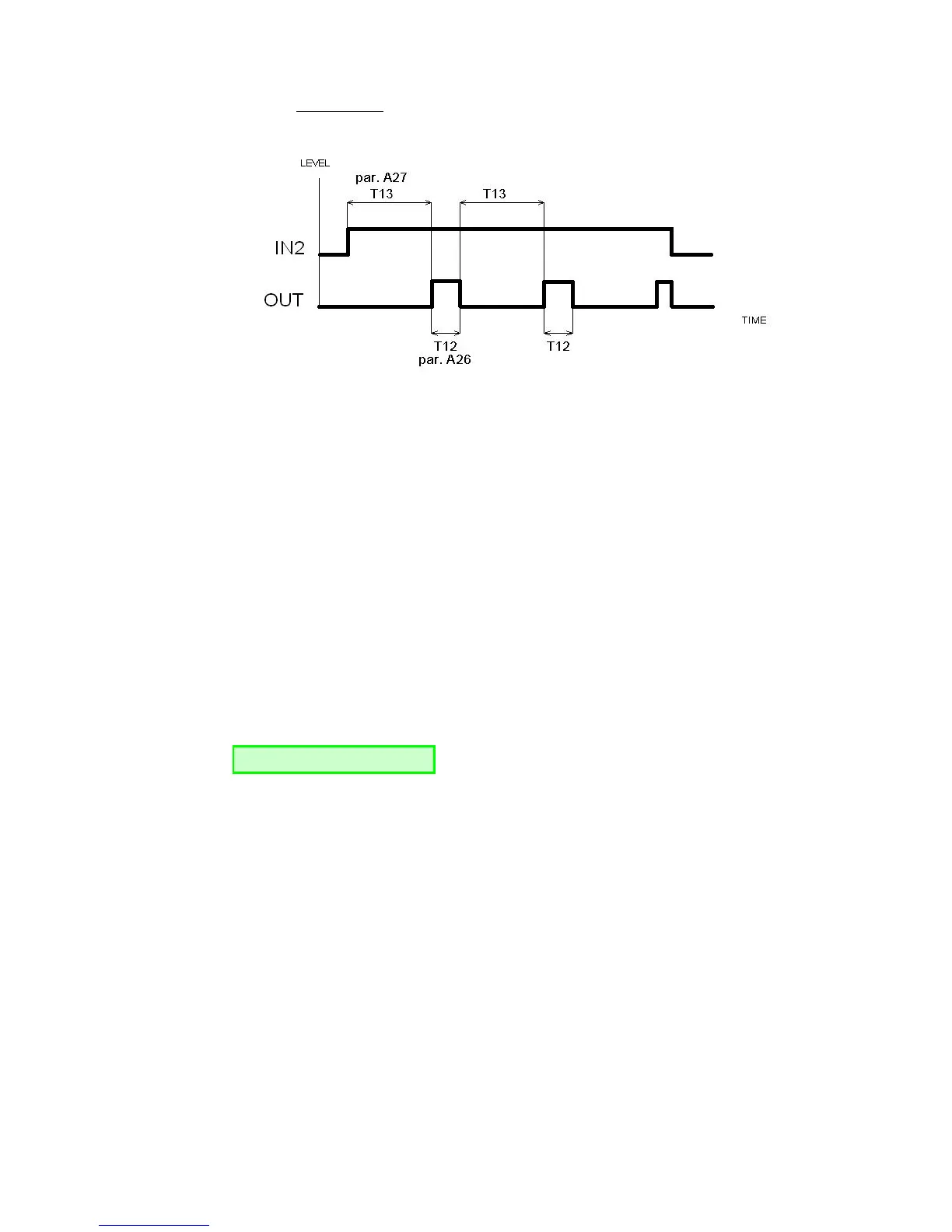

Fig. 9b – activity of the ejector E2
Monitor IN1 ON – The output monitors the activated
status of digital input IN1. This is only
monitored when the drive is in the status RUN -
operating. If during the period set by parameter
A27 (Timer T13), there is signal 24V on input
IN1, the output OUT switches on. The signal on
the monitored input can be protected from short
impulses, which are caused by the movement of
parts under the sensor. Impulses from status 0 to
status 1 are suppressed by setting parameter A25
(Timer T11). Impulses from status 1 into status 0
are suppressed by setting parameter A26
(Timer T12). All impulses which are shorter than
the set time, will be ignored.
 Tip for you: This setting can be used, for
example, if connecting the signalling beacon on
the input, to signal the shortage of components
in the magazine.
Monitor IN1 OFF – The output monitors the off status
of digital input IN1. The setting and functions
are the same as when monitoring input IN1 ON.
Monitor IN2 ON – The output monitors the on status of
digital input IN2. The setting and functions are
the same as when monitoring input IN1 ON.
Monitor IN2 OFF – The output monitors the off status
of digital input IN2. The setting and functions
are the same as when monitoring input IN1 ON.
