17 – Lubrication
1 Lubrication system
⇒ “1.1 Oil sump and oil pump - Summary of components”,
page 128
⇒ “1.2 Removing and installing oil sump bottom part”, page 129
⇒ “1.3 Removing and installing oil sump top part”, page 132
⇒ “1.4 Removing and installing oil pump”, page 135
1.1 Oil sump and oil pump - Summary of components
Note
♦
If considerable quantities of metal swarf or abrasion is found when carrying out an engine repair, this can
be subject to damage to the crankshaft and conrod bearings. In order to prevent consequential damage,
the following tasks must be performed after the repair: Clean oil channels carefully; change oil injection
nozzles, engine oil cooler and oil filter.
♦
Oil spray nozzle and pressure relief valve ⇒ page 72 .

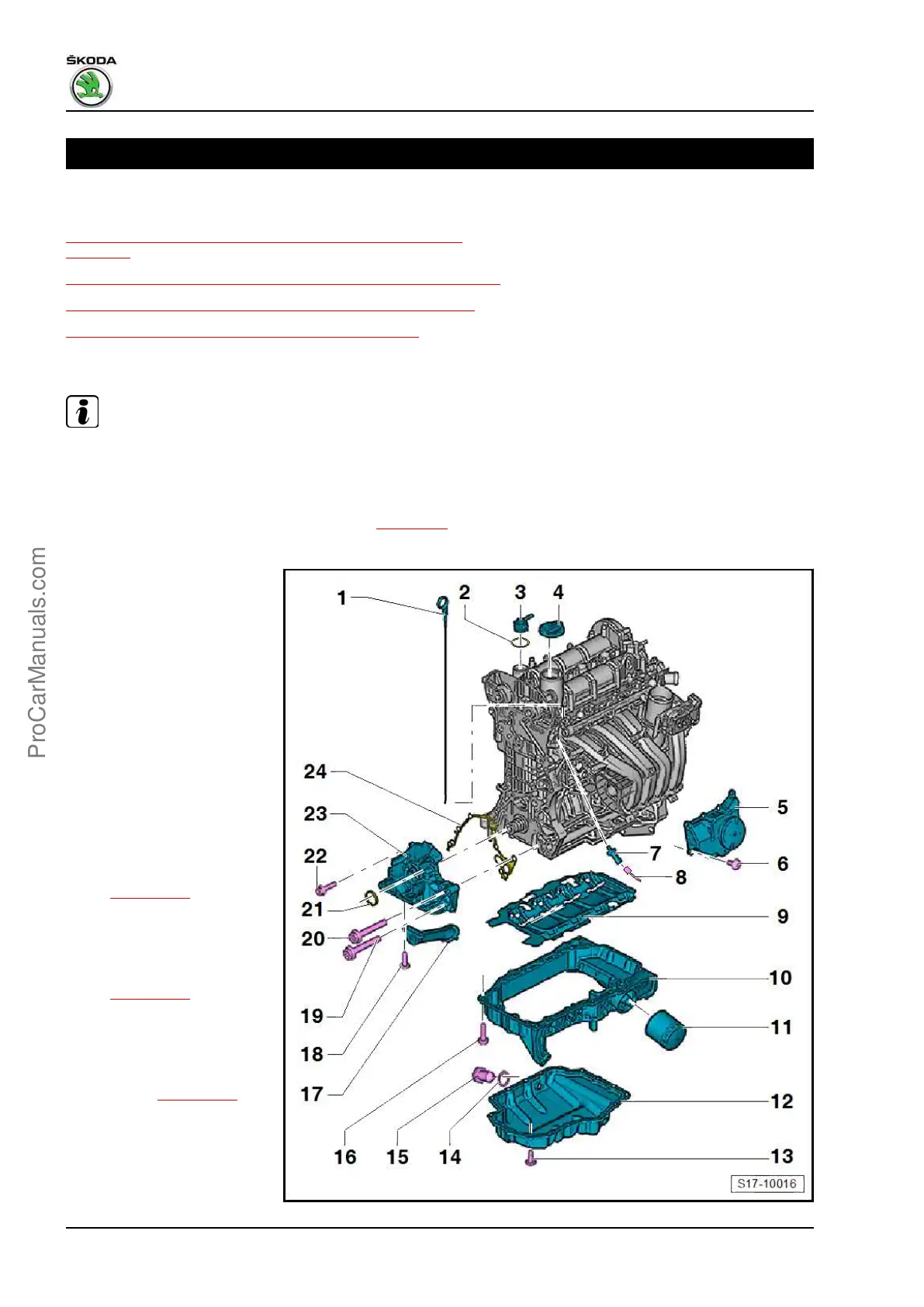

1 - Dipstick
❑ Oil quantity
♦ ⇒ Maintenance ; Booklet
Octavia III
♦ ⇒ Maintenance ; Booklet
Yeti
2 - O-ring
❑ replace
❑ oil before the assembly
3 - Vent valve
❑ Check fitting position
4 - Screw cap
5 - Oil separator
❑ removing and installing
⇒ page 140
❑ replace if damaged
6 - Screw
❑ Tightening torque and
tightening order
⇒ page 140
7 - Oil pressure switch - F1-
❑ 0.03 ... 0.06 MPa (0.3…
0.6 bar)
❑ Checking oil pressure
switch ⇒ page 144 .
❑ 20 Nm
Octavia III 2013 ➤ , Octavia III 2014 ➤ , Yeti 2010 ➤ , Yeti 2011 ➤
1.6/81 kW MPI engine - Edition 06.2014
128 Rep. gr.17 - Lubrication
