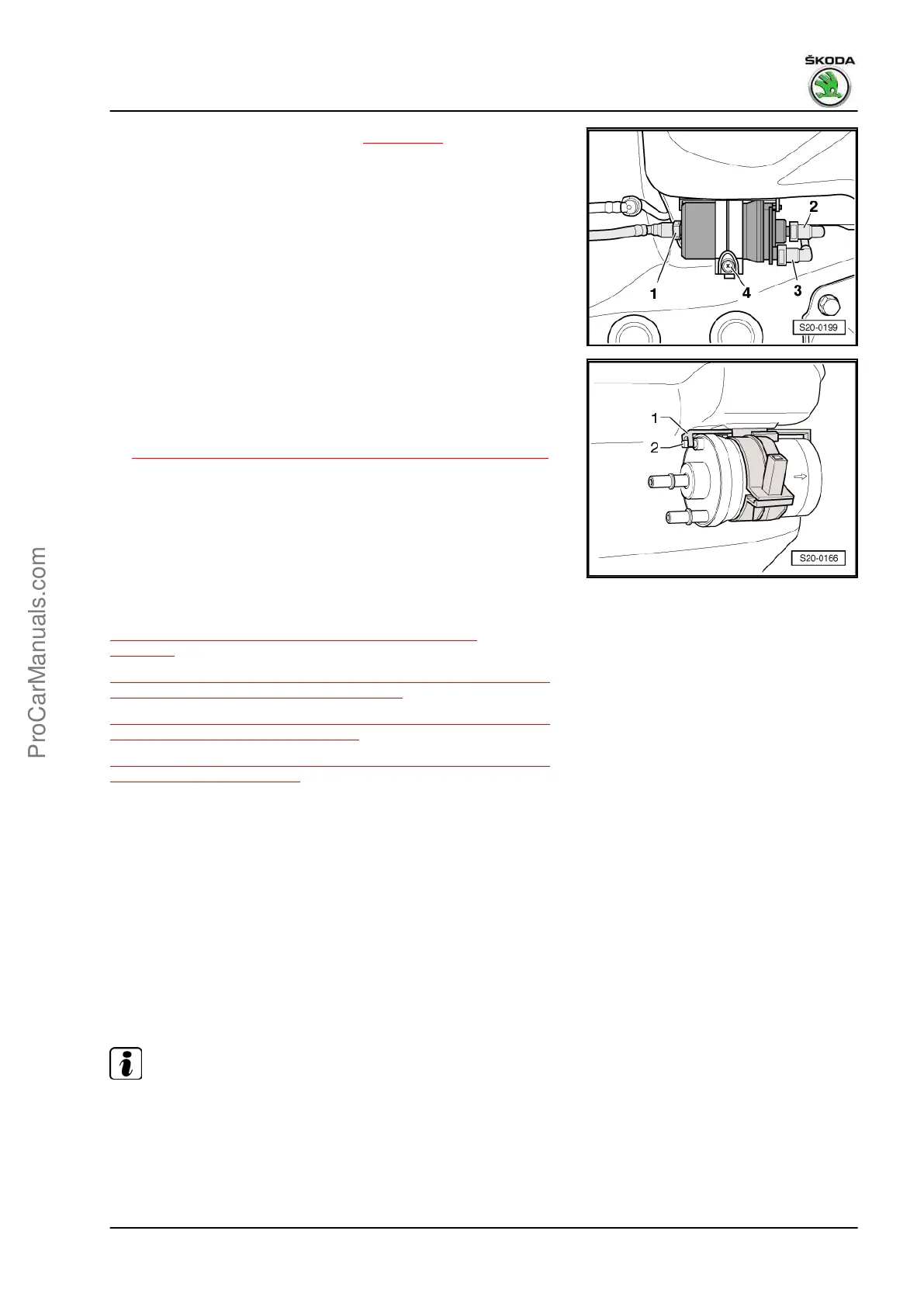

– Pull off fuel hoses -1-, -2- and -3- ⇒ page 216 .
– Unscrew screw -4-.
– Remove fuel filter.
Install
Installation is carried out in the reverse order.
The direction of flow is marked by arrows on the filter housing.
Fitting position
• Pin -2- at filter housing must engage in the recess of the guide
-1- at the filter holder.
Tightening torques
♦ Fixing screw
⇒ “1.3 Fuel filter - Summary of components (Yeti)”, page 184
1.5 Extract fuel from the fuel tank
⇒ “1.5.1 Emptying fuel tank when fuel pump is intact”,
page 185
⇒ “1.5.2 Emptying fuel tank when the fuel pump is damaged when
more than 3/4 full - (Octavia III)”, page 188
⇒ “1.5.3 Emptying fuel tank when the fuel pump is damaged when
more than 3/4 full - (Yeti)”, page 190
⇒ “1.5.4 Emptying fuel tank when the fuel pump is damaged when
less than 3/4 full”, page 191
1.5.1 Emptying fuel tank when fuel pump is
intact
Special tools and workshop equipment required
♦ Fuel extraction device , e. g. -VAS 5190-
♦ Adapter for fuel extraction - VAS 5190 /3-
♦ Disassembly wedge - 3409-
♦ Remote control - V.A.G 1348/3A-
♦ Measuring tool set , e.g. -V.A.G 1594 C-
♦ Adapter - VAS 5565-
Note
If the fuel extraction device - VAS 5190- is still fitted with an ex‐
traction hose with a fixed tip, replace it by the version with a screw-
type tip.
Octavia III 2013 ➤ , Octavia III 2014 ➤ , Yeti 2010 ➤ , Yeti 2011 ➤
1.6/81 kW MPI engine - Edition 06.2014
1. Fuel tank and fuel delivery unit 185
