5.5 Connection to the house controller

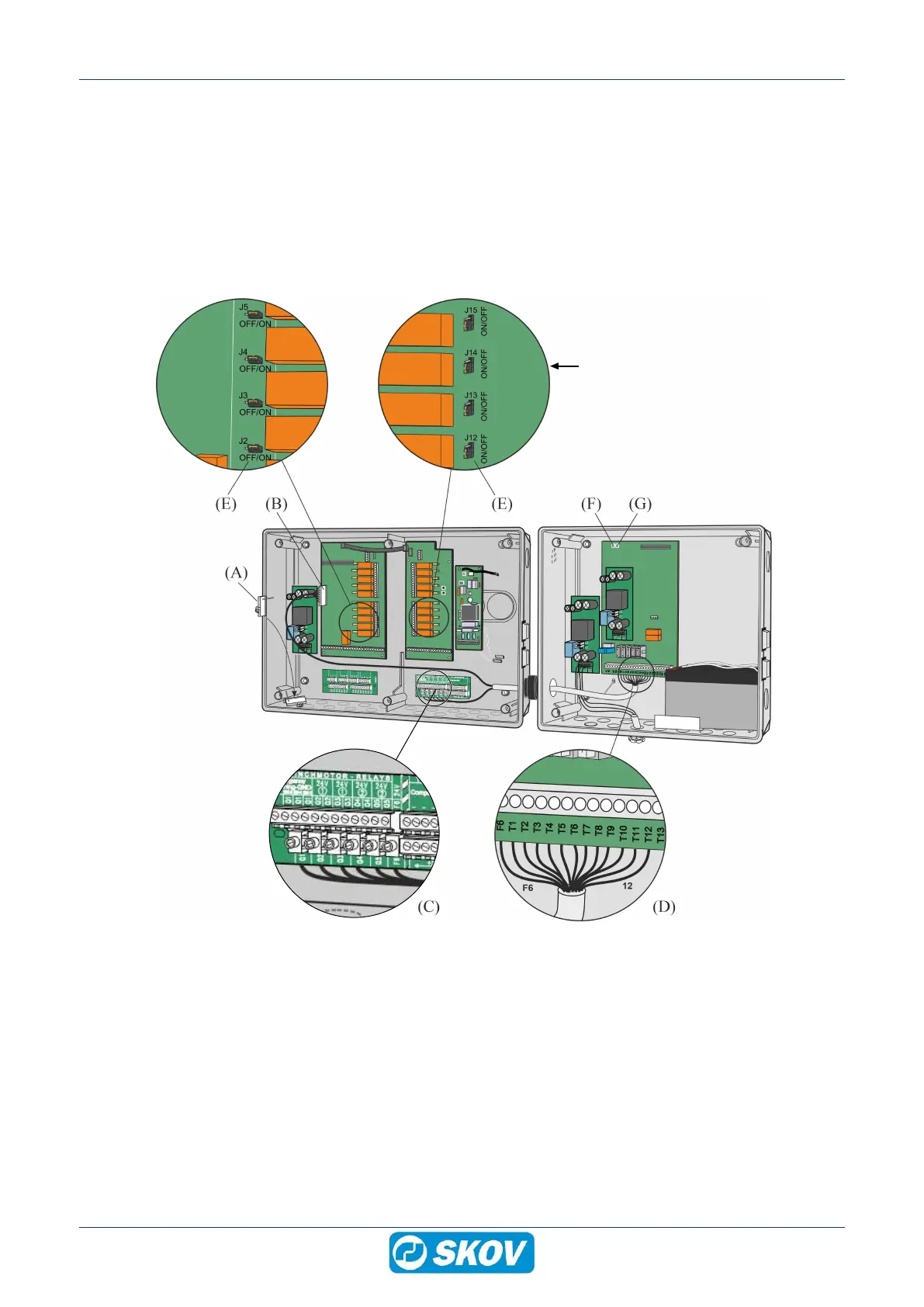

1. Remove the jumper plug (A) (place it in the bottom of the cabinet).
2. Connect the enclosed connecting cable (B).
3. Fasten the six conductors in the terminal block (C) Q1-Q5 and F6.
4. Connect the thirteen-pole cable in the emergency opening (D) in the terminal block F6 and T1-T12 (the ca-
ble can be replaced by a longer one (max. 3 m.), run it through the cable glands). Connect wire 1 to T1 etc.
See sectionWiring diagrams [}16].
5. Set jumpers (E) in the house controller, see section Setting of house controller [}19].
Additional I/O module type 3
For additional I/O module type 15,
the jumper is factory set to ON.
