DOL 278T
Technical Manual 27
DOL 278T-1 Medium
DOL 278T-2 Medium
DOL 278T-1 Large
DOL 278T-2 Large
Environment
Operating temperature
°C (°F) -10 to +45 (+14 to +113)
Storage temperature
°C (°F) -25 to +60 (-13 to +140)
Protection class
IP
54 (splash-proof)
It is assumed that the base surface is flat, i.e. ≤ there is a 1.5 mm dif-
ference in height, and the front panel screw is tightened to a minimum
of 1.5 Nm. 1.5 Nm.
Immunity Electromagnetic compatibility (EMC) - Part 6-2: Generic standards -
Immunity standard for industrial environments IEC 61000-6-2
Emission Electromagnetic compatibility (EMC) – Part 6-4: Generic standards –
Emission standard for industrial environments IEC 61000-6-4
Shipment
Cable knockouts
20 x M25 For metrical cable glands
Dimensions (H x W x D)
[mm] 381 x 400 x 170
Dimensions crated H x W x
D
[mm] 425 x 555 x 195
Weight
[g] 8500 9000
Shipping weight
[g] 10000 11000

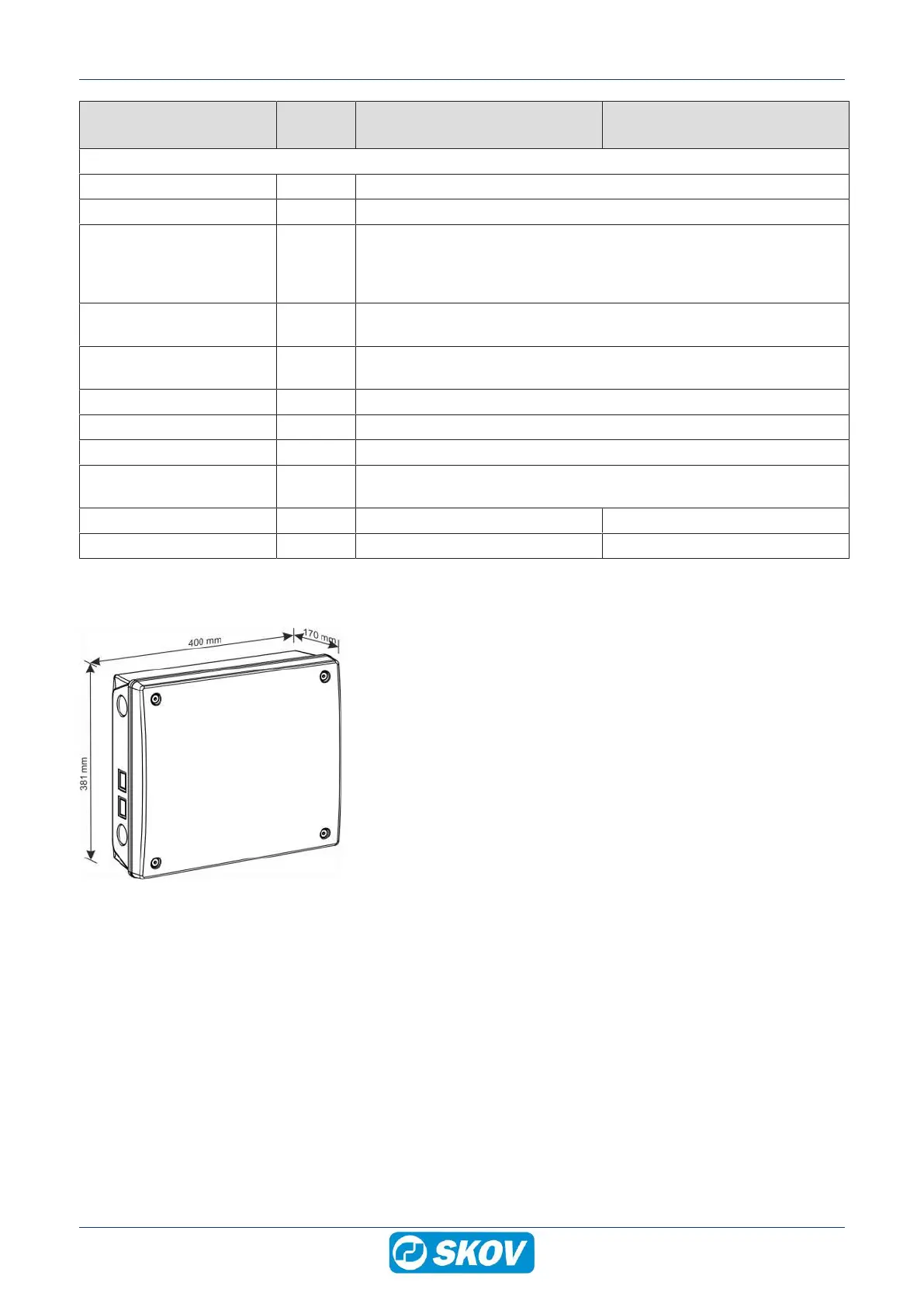

8.1 Dimensioned sketch
