5.8.3 Emergency opening - Temperature controlled and with DOL 278 ON/
OFF

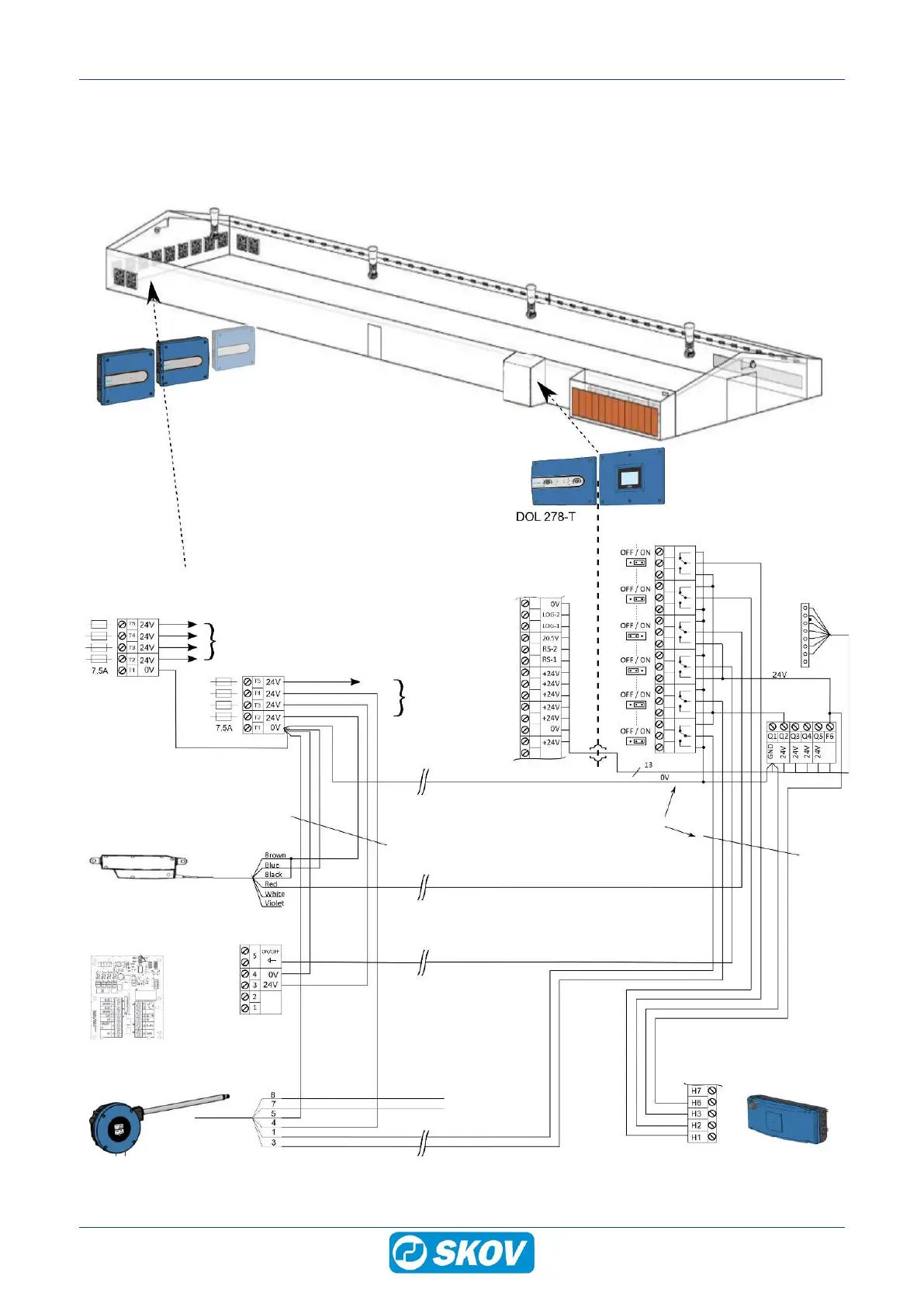

DOL 278T placed at climate controller and DOL 278 ON/OFF placed at fan. DOL 278 ON/OFF is used as extra
power supply.
No. 2
No. 1
No.
xx
Fuse
DOL 278 ON/OFF no. 2
BF 50 LPC actuator
(ON/ OFF emergency opening)
DA 1700 dual actuator
(ON/OFF emergency opening)
DOL 278 ON/OFF no. 1
Supply for
actuators
24 V DC supply cables
See table 5.3 cable dimensions
Control signal
1.5 mm2 (16AWG)
DA 600/ 820 with
DA 74C winch motor
(Temperature controlled
emergency opening)
DA 175 actuator
(Temperature controlled
emergency opening)
Emergency opening
Jumper in climate controller
Climate controller
Fuse
Supply for
actuators
Fuse
