DOL 278T
Technical Manual
15
5.7

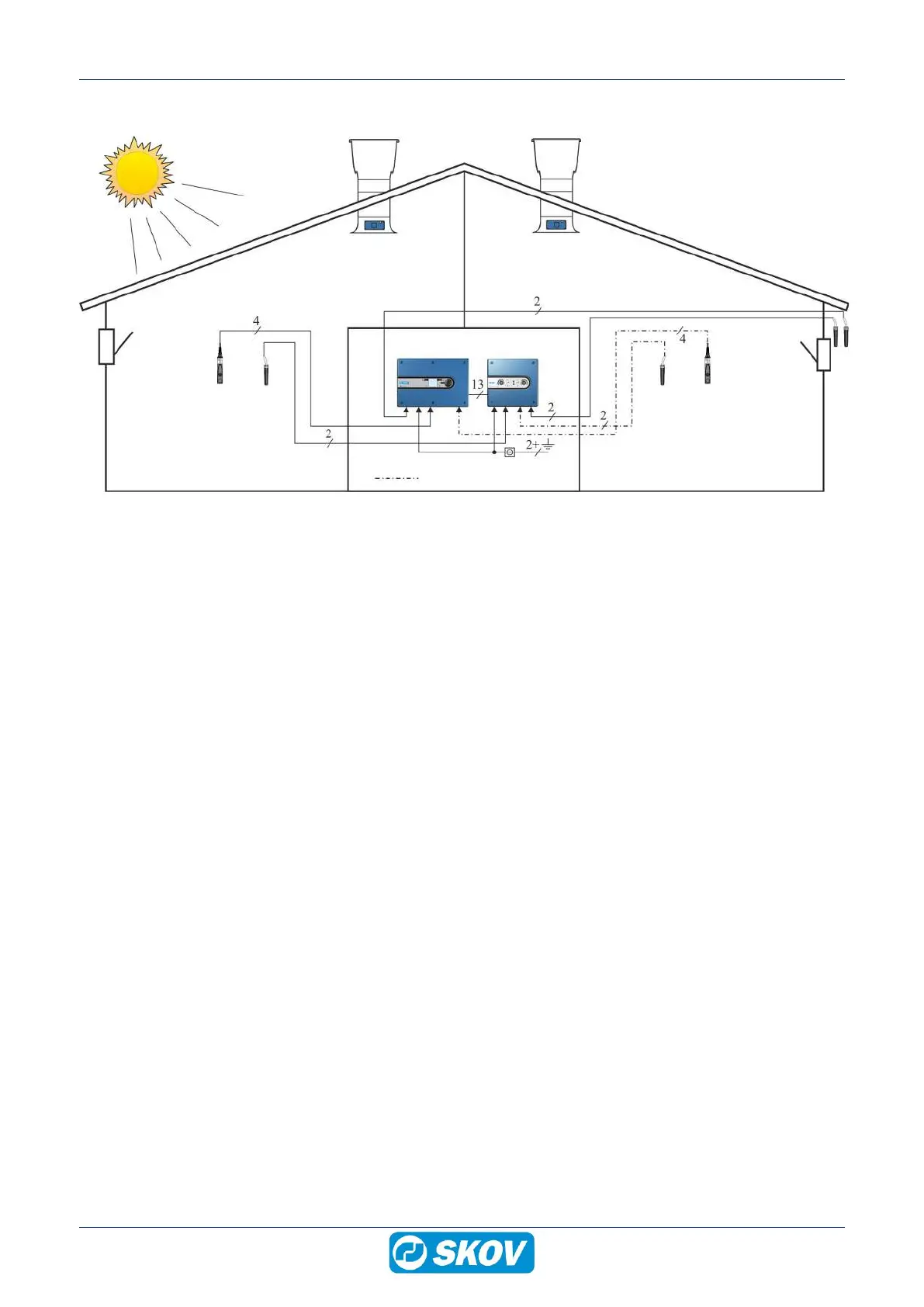

Cable plan
House 1
House 2
Shady side
DOL 12 outside temperature
DOL 12 temperature
DOL 114
temperature /
humidity
DOL 114
temperature / humidity
DOL 12 temperature
Service room
Controller
Emergency opening
Power supply
Only two-house
14
16
Table of Contents
Table of Contents
4
Product Description
5
Procedure
6
Product Survey
7
Mounting Guide
8
Mounting of Climate Sensors
9
Installation Guide
10
Installation of Battery
10
Installation of the TEST Supply Separator
10
Cable Dimensions for 24V DC Depending on Length
11
Setting the Supply Voltage on the Power Supply
11
Connection to the House Controller
12
Setting of Jumpers
13
Jumper Setting for Combi-Tunnel Mode
13
Setup Options at High Power Consumption
14
Cable Plan
15
Wiring Diagrams
16
Emergency Opening - Medium
16
Emergency Opening - Large
17
Emergency Opening - Temperature Controlled and with DOL 278 ON/OFF
18
Number of Fans and Actuators on Emergency Opening
19
Setting of House Controller
19
Active Functions When the Control Fails
19
Testing
21
Lamp Indications
21
Testing the Installation
22
Testing Battery Capacity
23
Testing Battery Voltage
23
Testing the Battery Capacity with Disconnected Supply Voltage/Phase Break
23
Temperature Sensor Control Table
24
Troubleshooting Guide
25
Technical Data
26
Dimensioned Sketch
27
