DataTranslationandTransmission

The measured values are digitized in the Data Transmitters, converted into signals and transmitted time-

delayed as impressed current via the common dual-line data bus to the central unit.



TransmitterBoards

All transmitter Boards fitted on a machine are the same part number. The system each board is monitoring

is identified to the CPU by the number and configuration of Links (Jumper wires).



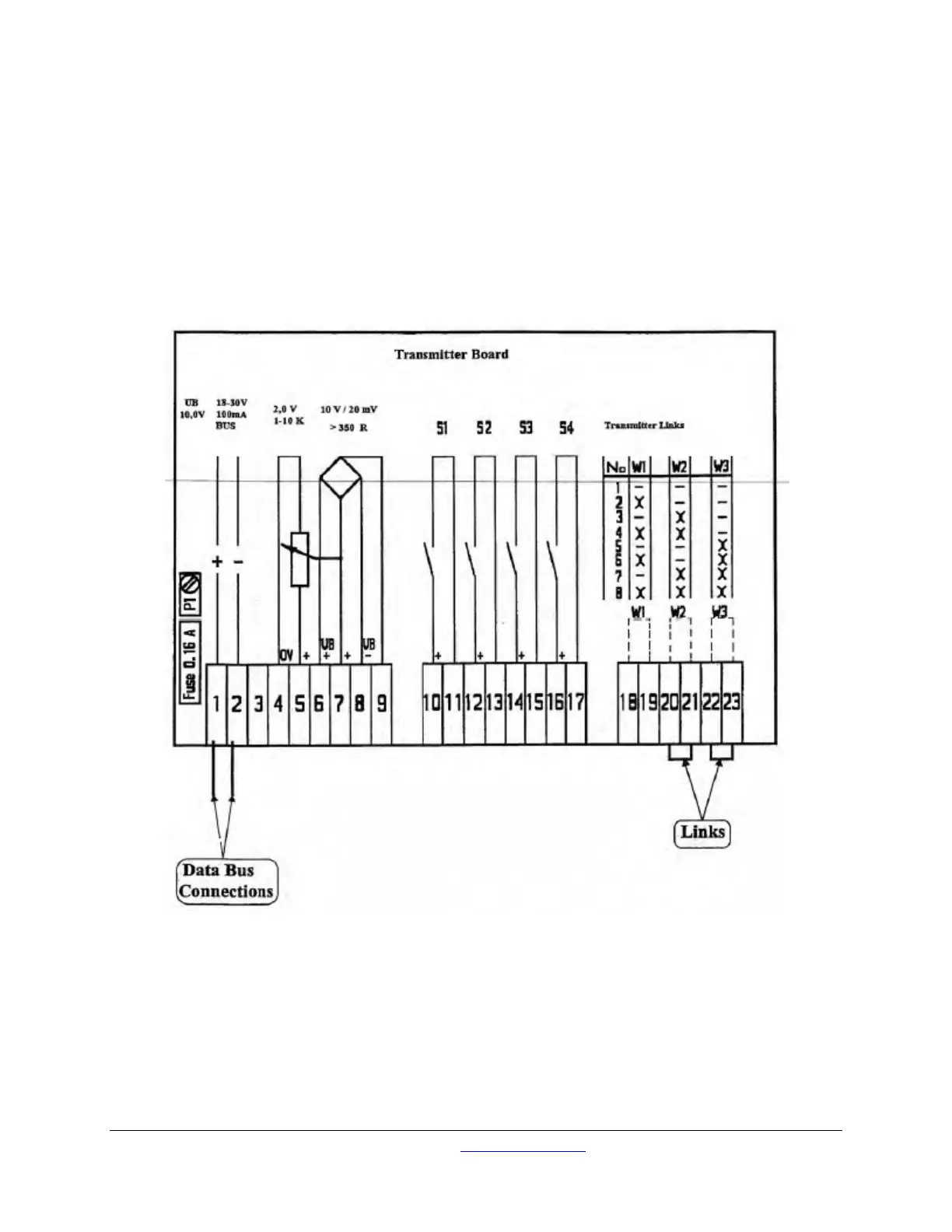

Up to 3 Links can be placed in positions WI, W2

& W3. These correspond to positions between the

following terminals:



W1=18‐19

W2=20‐21

W3=22‐23


