Operator’sCab–DashPanel

Atypicalcomponentlayout

The dash panel shown is for a GMK407. The position of components in other models may vary

and some items might not be fitted.



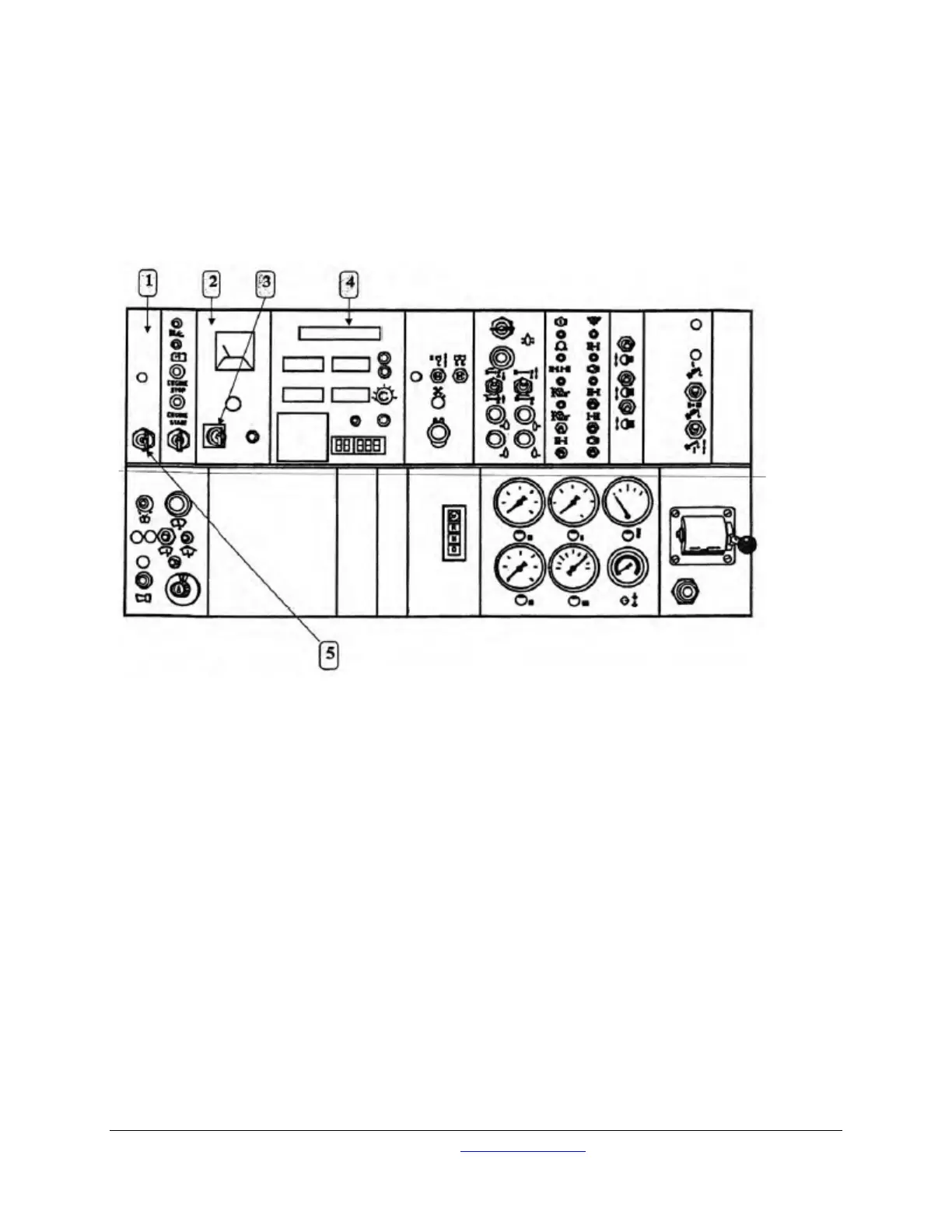

1. Plug-in module lOA, fuses FI (F1/8).

2. Plug-in module 9.5A, with LMI shutdown circuit (relay K1).

3. LMI override switch.

4. EKS 83, LMI combined console and central unit.

5. Crane switch for Superstructure S 11 (Superstructure 'ON').




