LoadMomentIndicator

DescriptionofOperation



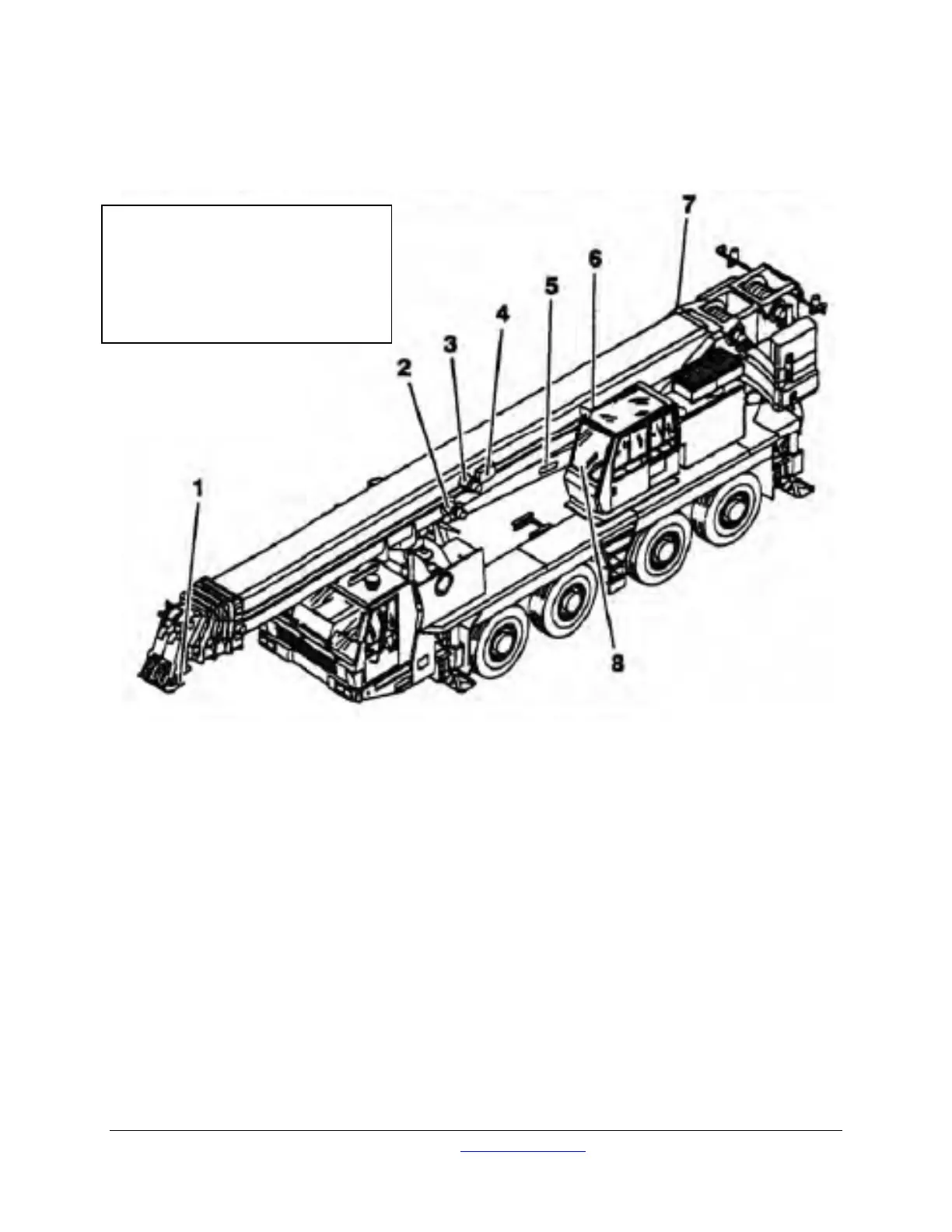

1. Lifting limit switch - main boom

2. Length measuring drum with potentiometer for telescope sections III/IV

3. Length measuring drum with potentiometer for telescope sections

1/11

4. Boom unit with angle potentiometer and data transmitter for angle and length

5. Pressure sensor on derricking cylinder

6. Display unit on right-hand side of turntable

7. Data transmitter for pressure sensor on right-hand side of turntable

8. SLI central unit in the crane operator's cab





Note: This-description is for the

general layout of the EKS.83.and

does not appertain to any specific

system fitted to any Model, i.e. the

number of Boom Length reeling drums

and associated transmitters will vary

from Model to Model.
