Page 36 December 2007
SJIII Compacts & Conventionals
Function Tests Section 2 - Operation
Test Platform Raising/Lowering•
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. For platform control console with toggle
switch:
Select lift/off/drive switch to “
” lift
position.
For platform control console with rotary
switch:
Select lift/inclined drive/level drive switch
to “
” lift position.
2. Activate and hold “
” enable trigger
switch.
3. Push controller handle and raise the
platform to an approximate height of
0.5 meter.
Result: Platform should rise.
4. Pull controller handle and lower the
platform fully.
Result: Platform should lower.
Test Lowering Warning•
1. Raise the platform until approximately a
height of 3 to 4 meters is reached then
attempt to fully lower the platform.
Result: Platform should stop lowering at
a height of 2.5 meters high and an alarm
should sound.
2. Release controller handle.
Test Horn•
1. Push “
” horn pushbutton.
Result: Horn should sound.

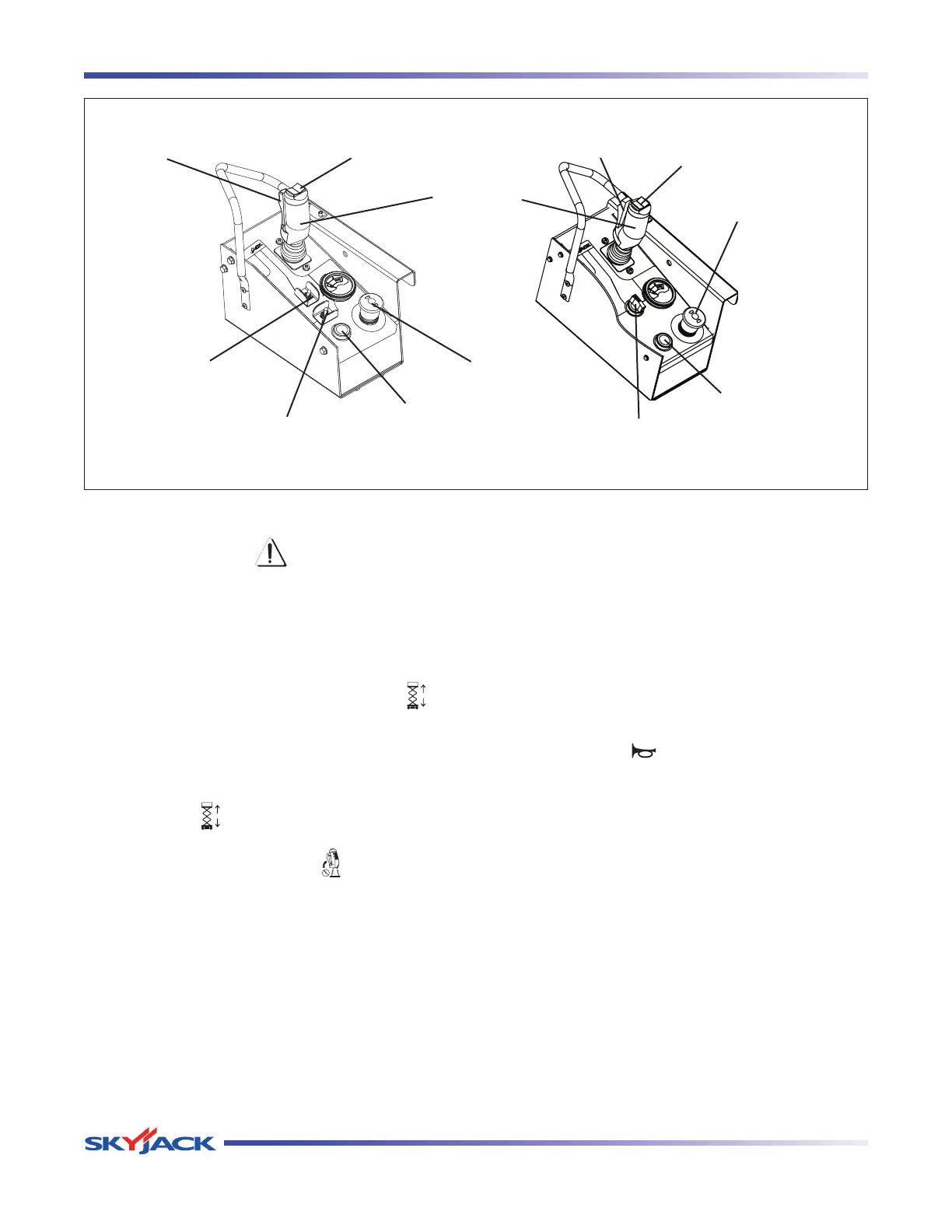

Lift/Drive/Steer Enable
Trigger Switch
Inclined Drive/Level Drive
Switch
Emergency Stop Button/
Operation Light
Rocker Switch
Horn Pushbutton
Controller
Lift/Off/Drive Switch
Emergency Stop Button/
Operation Light
Rocker Switch
Horn Pushbutton
Lift/Inclined Drive/Level Drive Switch
Lift/Drive/Steer Enable
Trigger Switch
Platform Control Console with Toggle Switch Platform Control Console with Rotary Switch
