SJRT Compact Series
Engine Powered
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
• Test Steering
1. Ensure engine is running.
2. Press rocker switch on top of controller to
“
” left and “ ” right.
Result: Steer wheels should turn left and
right.
• Test Driving
1. Ensure path of intended motion is clear.
2. On platform control console, select lift/
torque/drive switch or lift/drive switch to
“
” drive position.
3. Activate and hold “ ”enable trigger
switch.
4. Slowly move controller in “ ” forward or
“
” reverse direction until aerial platform
begins to move, and then return handle to
center position.
Result: Aerial platform should move in
forward or reverse direction, and then
come to a stop.
• Test Speed Limit
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. Ensure path of intended motion is clear.
2. Raise the platform until approximately a
height of 7 feet (2 meters) is reached and
attempt to drive forward or reverse.
Result: Aerial platform should move slower
than when it is in stowed position.

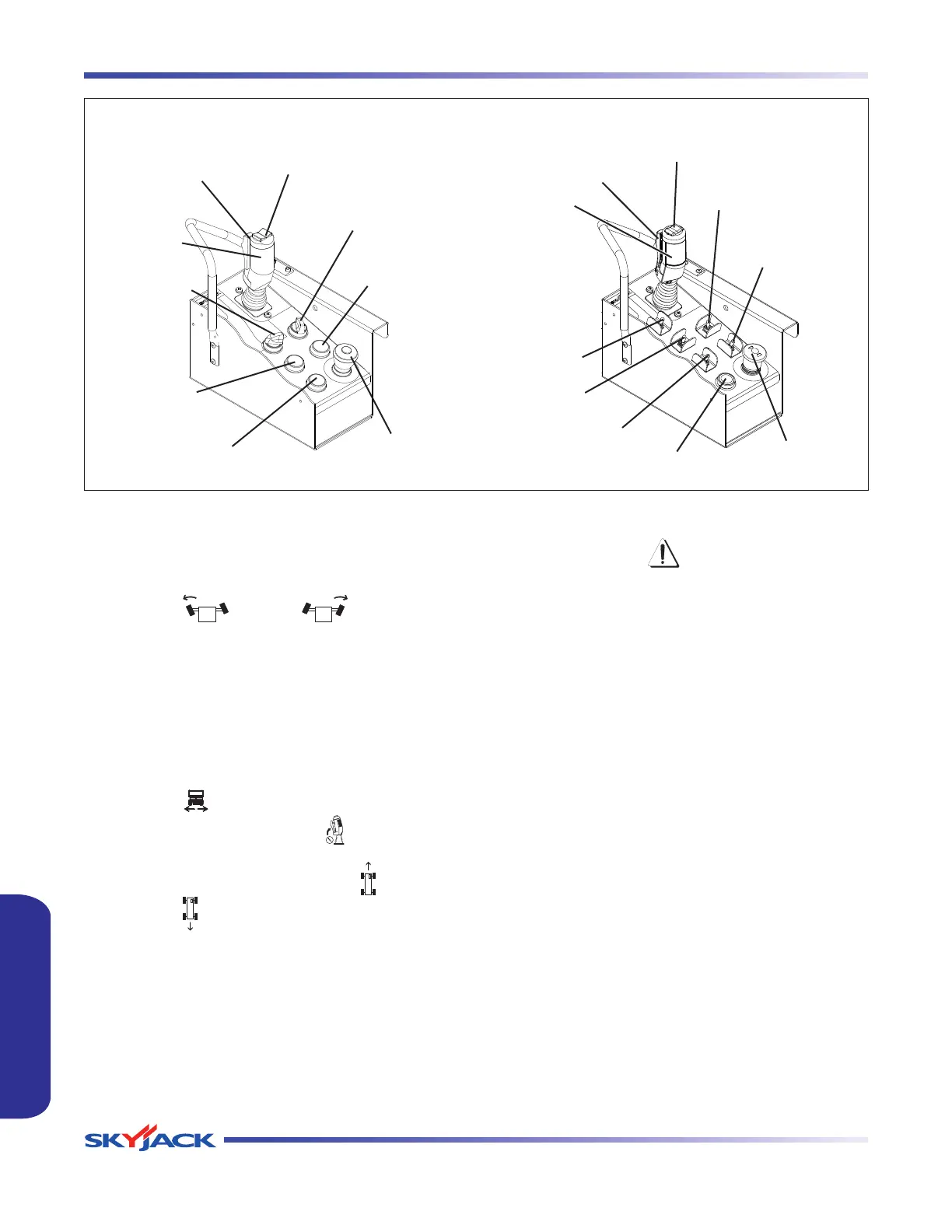

FAMILIARIZATIONFAMILIARIZATION
Drive/
Lift/Steer
Controller
Horn Pushbutton
Emergency Stop
Button
Choke (Dual Fuel)/
Glow Plug (Diesel)
Pushbutton
Engine Start
Pushbutton
Low/High Throttle
Switch
Lift/Torque/
Drive Switch
Enable Trigger
Switch
Horn Pushbutton
Choke (Dual Fuel)/
Glow Plug (Diesel)
Switch
Low/High Throttle
Switch
Rocker Switch
Engine Start
Switch
Torque Switch
Lift/Drive/Steer
Controller
Lift/Drive/Steer Enable
Trigger Switch
Lift/Drive Switch
Emergency Stop
Button
Rocker Switch
Platform Control Console (Rotary Switch) Platform Control Console (Toggle Switch)
