Section 2 - Familiarization Function Tests
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
• Test Brakes
WARNING
Brakes will engage instantly when you
release the controller handle, causing
aerial platform to stop immediately.
1. Ensure path of intended motion is clear.
2. Activate and hold “ ” enable trigger
switch.
3. Drive aerial platform “ ” forward. Test
brake by releasing controller handle.
Result: Aerial platform should come to
a stop. If aerial platform pulls to one side
while stopping, do not operate aerial
platform until brake adjustments have
been checked.
4. Drive aerial platform “ ” forward. Test
brake again by releasing “
” enable
trigger switch only.
Result: Aerial platform should come to an
instant and abrupt stop. If aerial platform
does not stop immediately, or if aerial
platform pulls to one side while stopping,
do not operate aerial platform until brake
adjustments have been checked.
• Test Horn
1. Push “ ” horn pushbutton.
Result: Horn should sound.

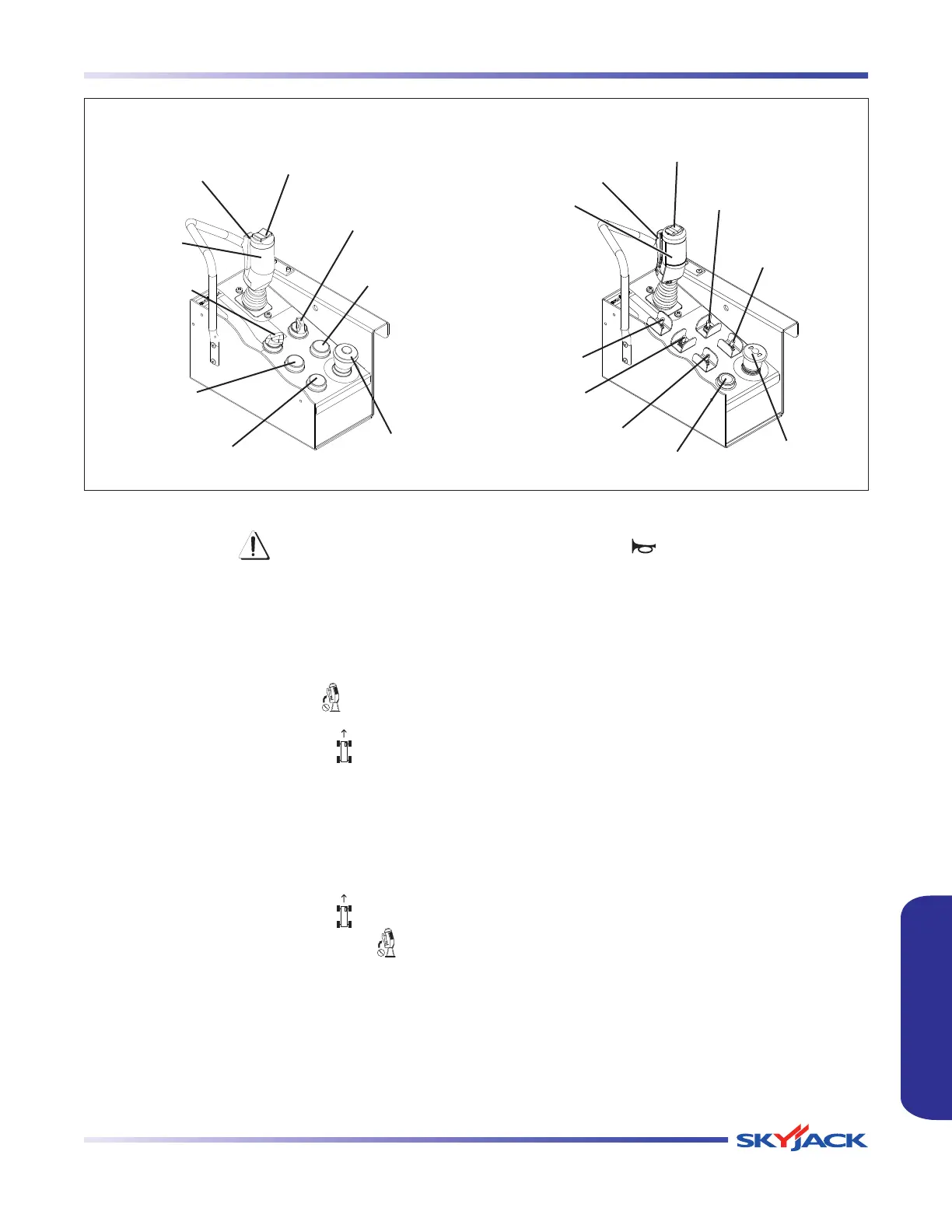

FAMILIARIZATIONFAMILIARIZATION
Drive/
Lift/Steer
Controller
Horn Pushbutton
Emergency Stop
Button
Choke (Dual Fuel)/
Glow Plug (Diesel)
Pushbutton
Engine Start
Pushbutton
Low/High Throttle
Switch
Lift/Torque/
Drive Switch
Enable Trigger
Switch
Horn Pushbutton
Choke (Dual Fuel)/
Glow Plug (Diesel)
Switch
Low/High Throttle
Switch
Rocker Switch
Engine Start
Switch
Torque Switch
Lift/Drive/Steer
Controller
Lift/Drive/Steer Enable
Trigger Switch
Lift/Drive Switch
Emergency Stop
Button
Rocker Switch
Platform Control Console (Rotary Switch) Platform Control Console (Toggle Switch)
To Next Page
