Skyjack SJ 9250 - Test Brake; Test Speed Limit

Mid Size & Full Size RTs
Engine Powered
Page 29
Section 2 - Familiarization Function Tests
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
• Test Brake
WARNING
Brake will engage instantly when
controller handle is released, causing
aerial platform to stop immediately.
1. Ensure path of intended motion is clear.
2. Activate and hold “ ” enable trigger
switch.
3. Drive aerial platform “ ” forward. Test
brake by releasing controller handle.
Result: Aerial platform should come to a
stop.
4. Drive aerial platform “ ” forward. Test
brake again by releasing “
” enable
trigger switch only.
Result: Aerial platform should come to an
instant and abrupt stop.
• Test Speed Limit
WARNING
Be aware of overhead obstructions
or other possible hazards around the
aerial platform when lifting.
1. Ensure path of intended motion is clear.
2. Select off/lift/drive key switch to “ ” lift
position.
3. Raise the platform to an approximate
height of 4 meters.
4. Select off/lift/drive key switch to “ ”
drive position and attempt to drive forward
or reverse.
Result: Aerial platform should move slower
than when it was in stowed position.

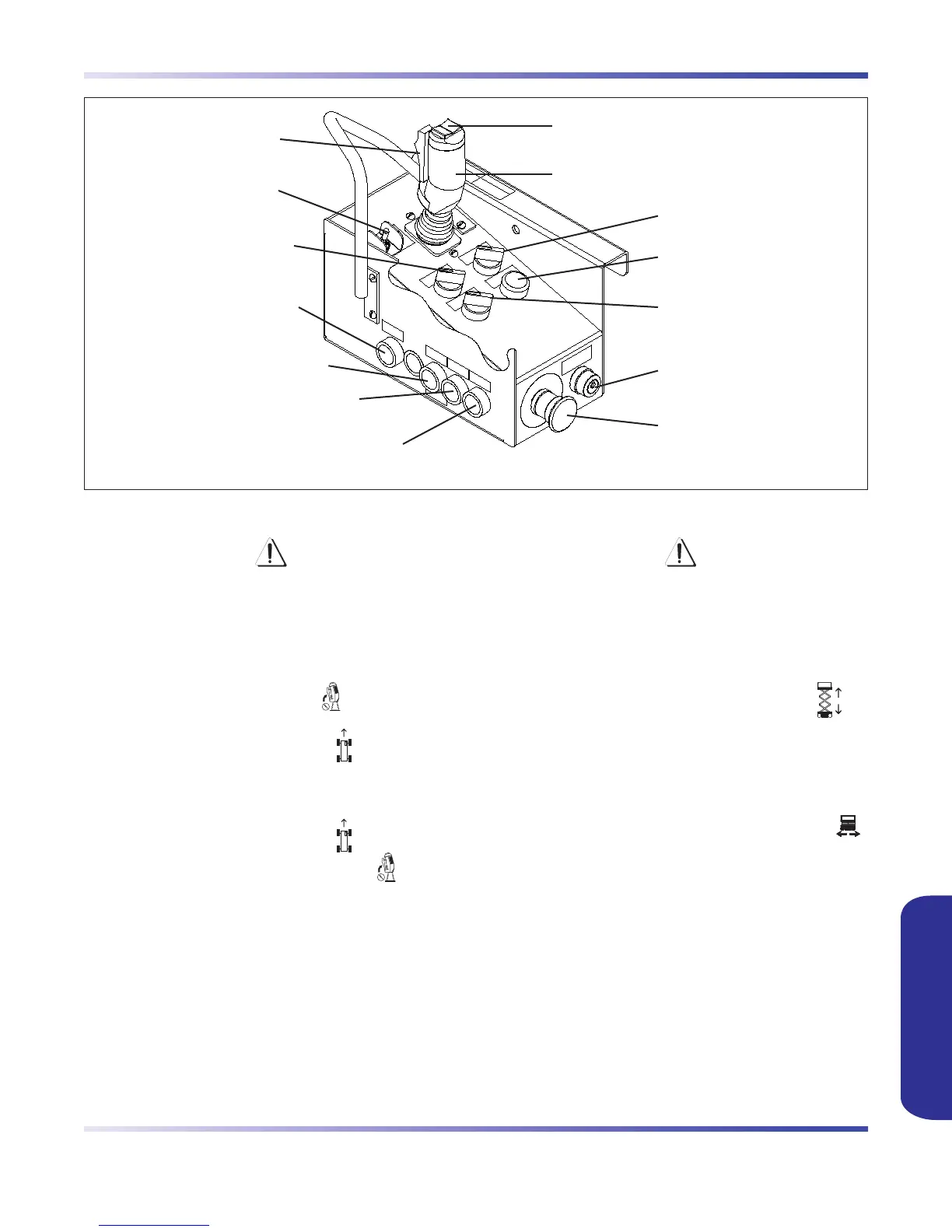

Torque Switch
Engine Start
Pushbutton
Horn
Pushbutton
Glow Plug
Pushbutton
Lift Enable
Pushbutton
Emergency Stop
Button
Low/High Throttle
Switch
Operation Light
Off/Lift/Drive Key
Switch
Low/High Speed Range
Switch
Drive/Steer
Controller
Raise/Off/Lower
Switch
Drive/Steer Enable
Trigger Switch
Rocker Switch
FAMILIARIZATIONFAMILIARIZATION
