Page 30 Mid Size & Full Size RTs
Engine Powered
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
• Test Lowering Warning
1. Select off/lift/drive key switch to “ ” lift
position.
2. Fully lower the platform.
Result: Alarm should sound the entire way
down.
• Test Powerdeck Enable (If Equipped)
1. Select and hold extend/retract switch to
the “ “ extend position without
selecting “ ” enable switch.
Result: Platform should not extend.
• Test Extension Platform(s)
(If Equipped)
1. Extend each extension platform to about
.5 meter (refer to Section 3.8-8 or Section
3.8-9).
Result: Each extension platform should
extend.
2. Retract each extension platform fully.
Result: Each extension platform should
fully retract.
• Test Emergency Powered
Extension Platform Retraction
Switch (Models 92xx)
1. Extend both powered extension platforms
to about .5 meter.
2. Push in “ ” emergency stop button to
shut down the engine.
WARNING
Ensure that you maintain three points
of contact when using the ladder to
mount/dismount platform.
3. Use the ladder to dismount from
platform.
4. On hydraulic/electric tray, push the
emergency powered extension platform
retraction switch.
Result: Extension platforms should
retract.

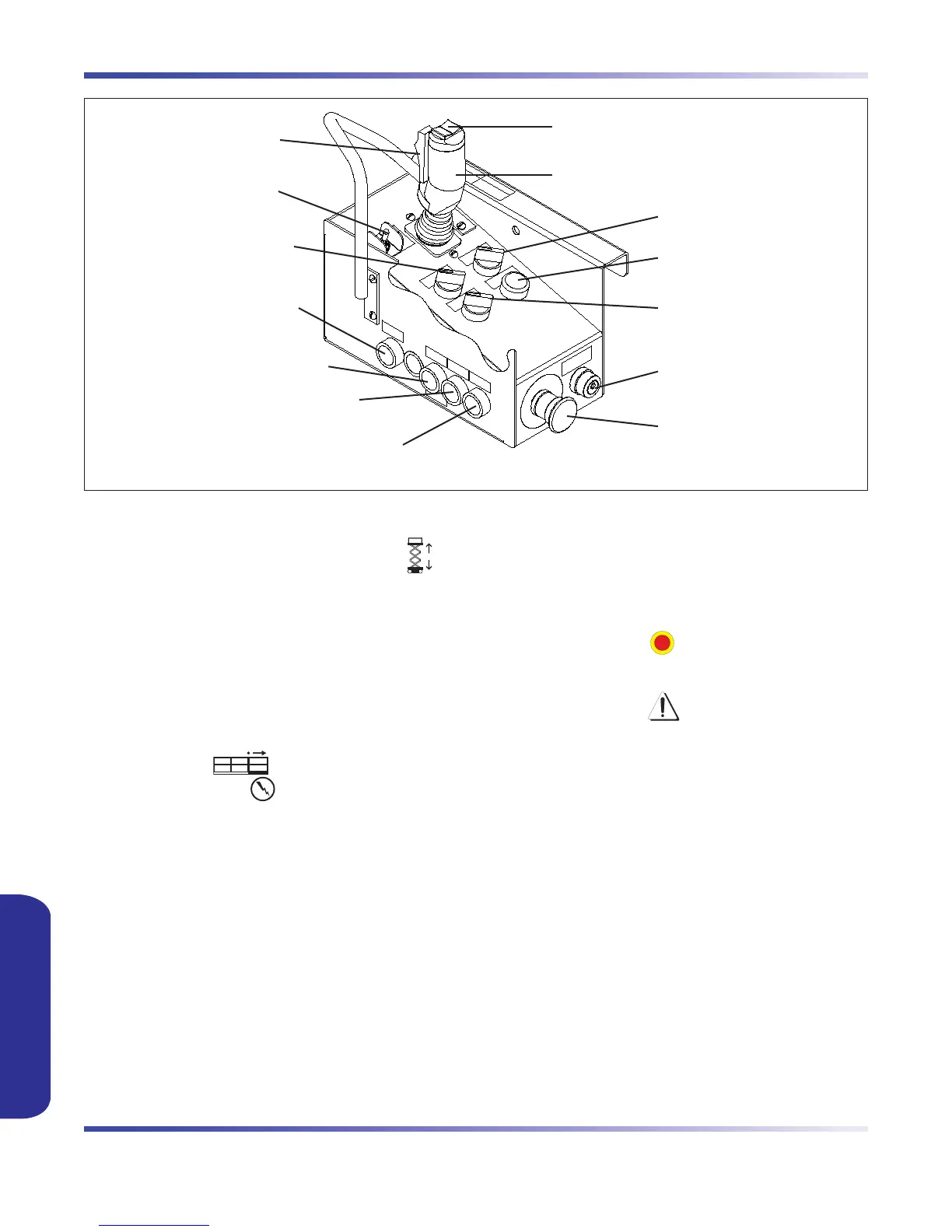

Torque Switch
Engine Start
Pushbutton
Horn
Pushbutton
Glow Plug
Pushbutton
Lift Enable
Pushbutton
Emergency Stop
Button
Low/High Throttle
Switch
Operation Light
Off/Lift/Drive Key
Switch
Low/High Speed Range
Switch
Drive/Steer
Controller
Raise/Off/Lower
Switch
Drive/Steer Enable
Trigger Switch
Rocker Switch
