Skyjack SJ 9250 - Locally Concentrated Pressure (LCP); Overall Uniform Pressure (OUP)

Page 66 Mid Size & Full Size RTs
Engine Powered
Tables Section 4

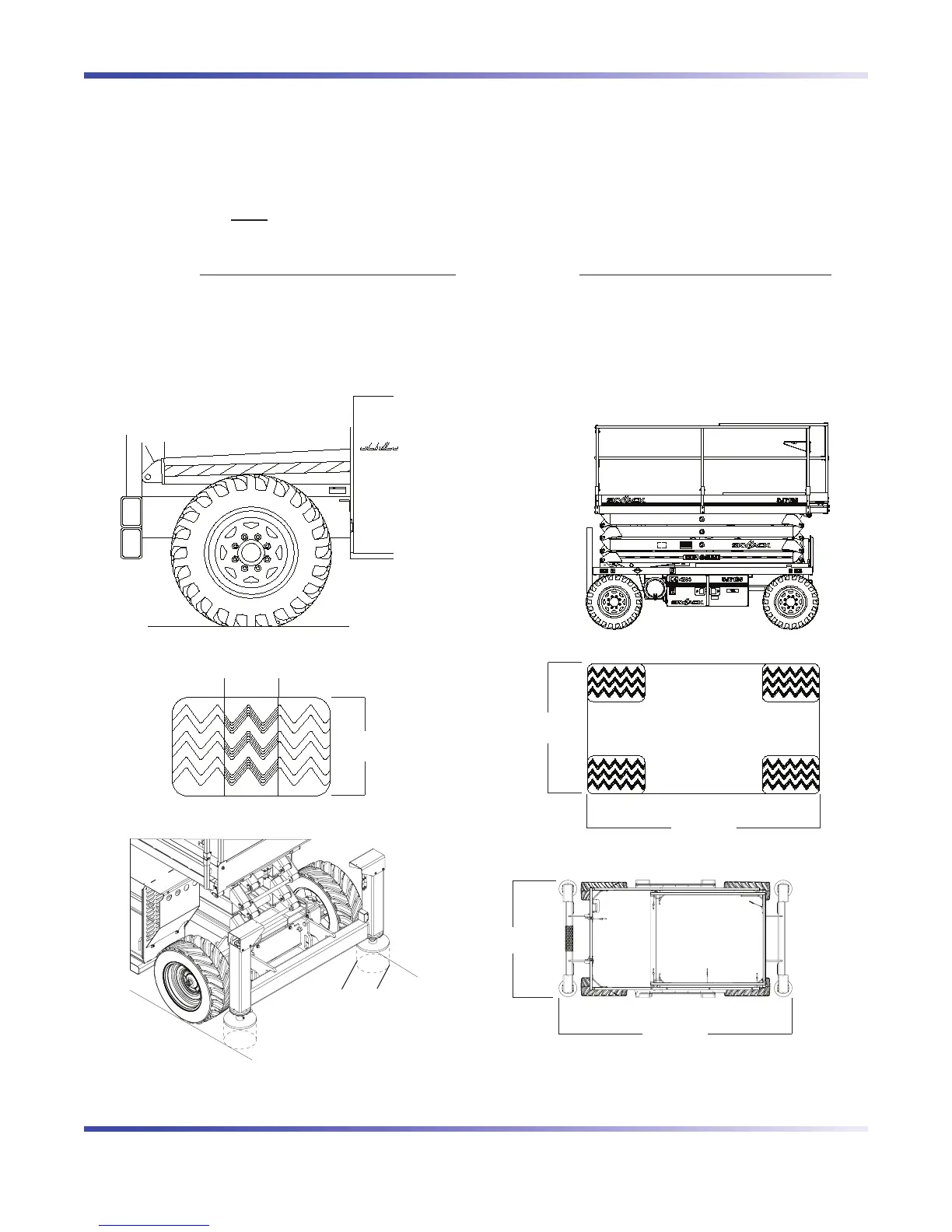

Floor Loading Pressure
Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):
Foot Print Area = Length x Width
Base Area = Length x Width
LCP = 0.4 x
Weight of Aerial Platform + Capacity
Foot Print Area
OUP =
Weight of Aerial Platform + Capacity*
Base Area
or = (for outriggers)
πD
2
4
Length
Width
Width
Length
Length
Width
Diameter (D)
* Capacity for max OUP only.
