Section 2 - Familiarization Function Tests
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.4-2 Base Control Console
1. On engine control console, select
“ ” start position to start the engine.
• Test Emergency Stop
1. Push in “ ” emergency stop button.
Result: Engine should shut down and
aerial platform functions should not
operate.
2. Pull out “ ” emergency stop button and
restart engine.
• Test Auxiliary Start Switch
1. On base control console, select and hold
enable switch and start engine using
auxiliary start switch.
Result: Engine should start.
2. Release enable switch.
Result: Engine should shut off.
3. Attempt to start engine without selecting
and holding enable switch.
Result: Engine should not start.
• Test Base Lift Enable
1. Start the engine.
2. On base control console, select and hold
lower/neutral/raise switch “ ” to raise
position without selecting and holding
enable switch.
Result: Platform should not rise.
• Test Lower/Neutral/Raise Switch
1. On base control console, select and hold
enable switch and “ ” raise the platform
with lower/neutral/raise switch.
Result: Platform should rise.
2. Select and hold enable switch and fully
“ ” lower the platform with lower/
neutral/raise switch.
Result: Platform should fully lower.

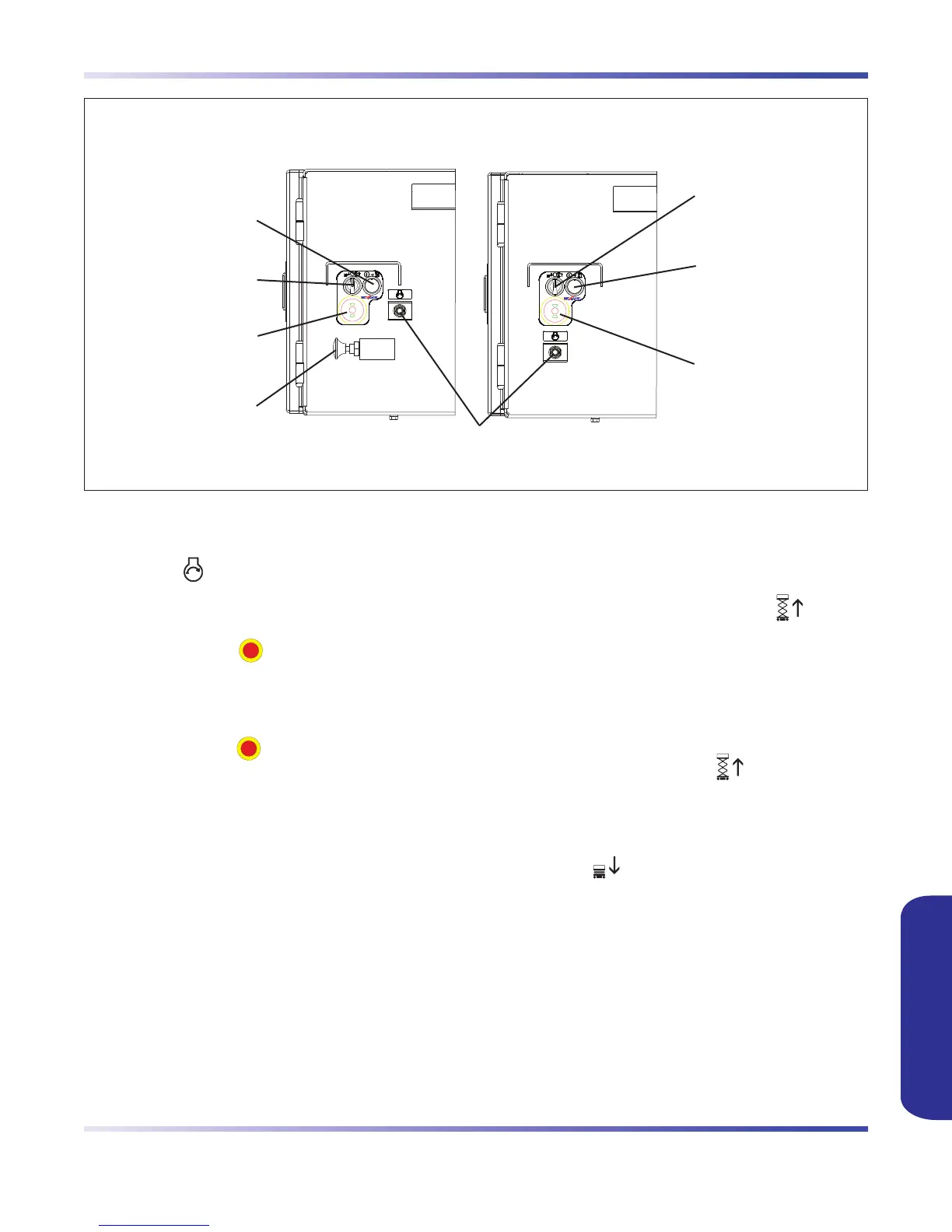

Emergency Lowering
Valve
Platform Lower/Neutral/
Raise Switch
Enable Switch
Base Control Console
Emergency Stop
Button
Auxiliary Start
Switch
Emergency Stop
Button
Platform Lower/Neutral/
Raise Switch
Enable Switch
Model 71XX Models 88XX & 9250
FAMILIARIZATIONFAMILIARIZATION
