13b. Status Indicator Pilot Lights - These lights
indicate operational status and errors in any
function in the controls/engine.
A B C D E F
A. Charging Circuit - This light indicates charger
circuit malfunction.
B. Engine Oil Pressure - This light indicates low
engine oil pressure.
C. Engine Coolant - This light indicates
overheating of engine coolant.
D. Engine - This light indicates failure in engine
control system.
E. Fuel - This light indicates low fuel level.
F. Glow Plug (Diesel) - This light illuminates
until glow plugs have completed their timed
cycle. When the lamp goes out, the engine is
ready to be started.
14. Positive Air Shutoff Switch (If Equipped) -
This switch allows the operator to shut off the
air supply to the engine if the engine continues
running after the main power is shut down.
2.2-7 Base Control Console (Continued)
12 11
1
2
3a
10
9
76
13a
54a
8
3b
3c
13b
4b
14

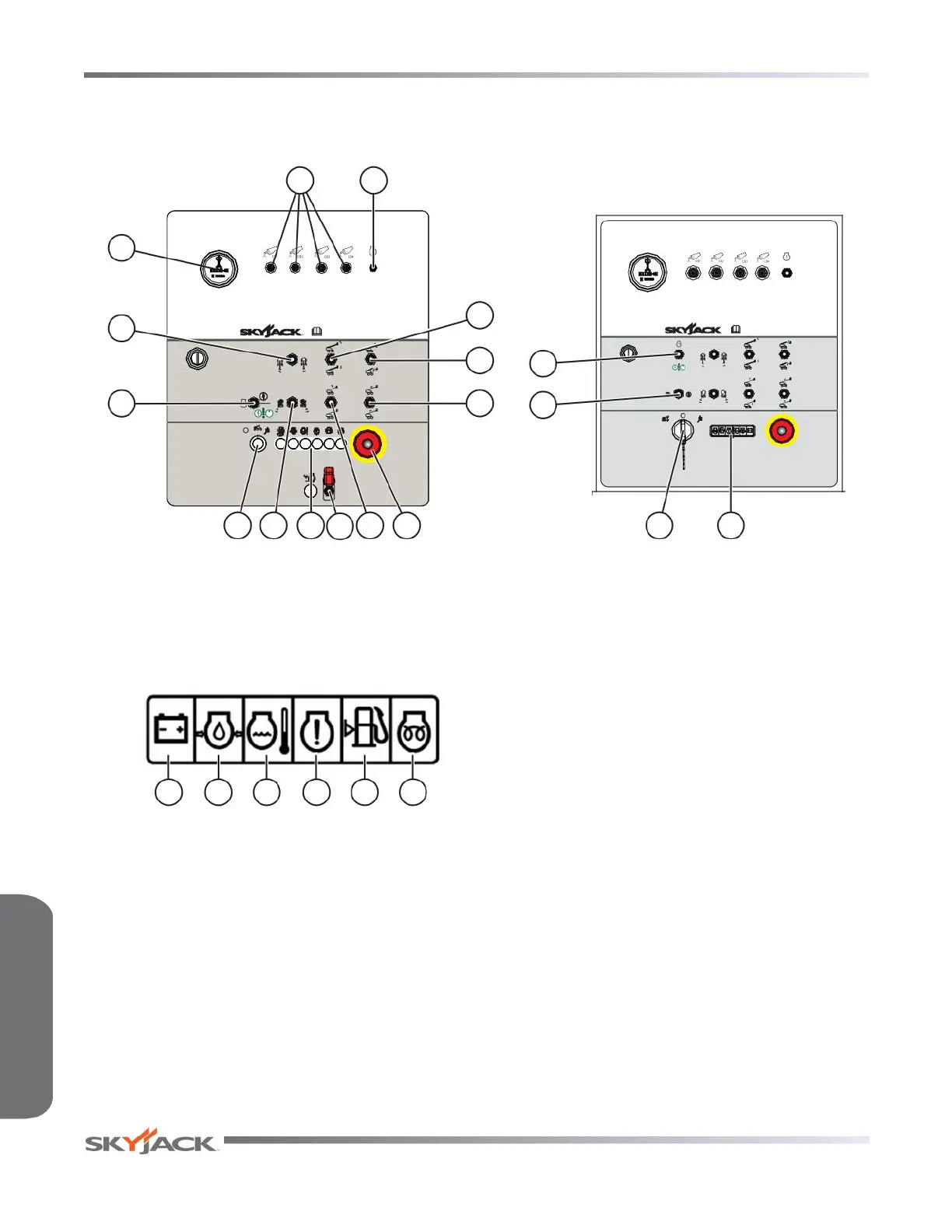

Figure 2-5. Base Control Console
