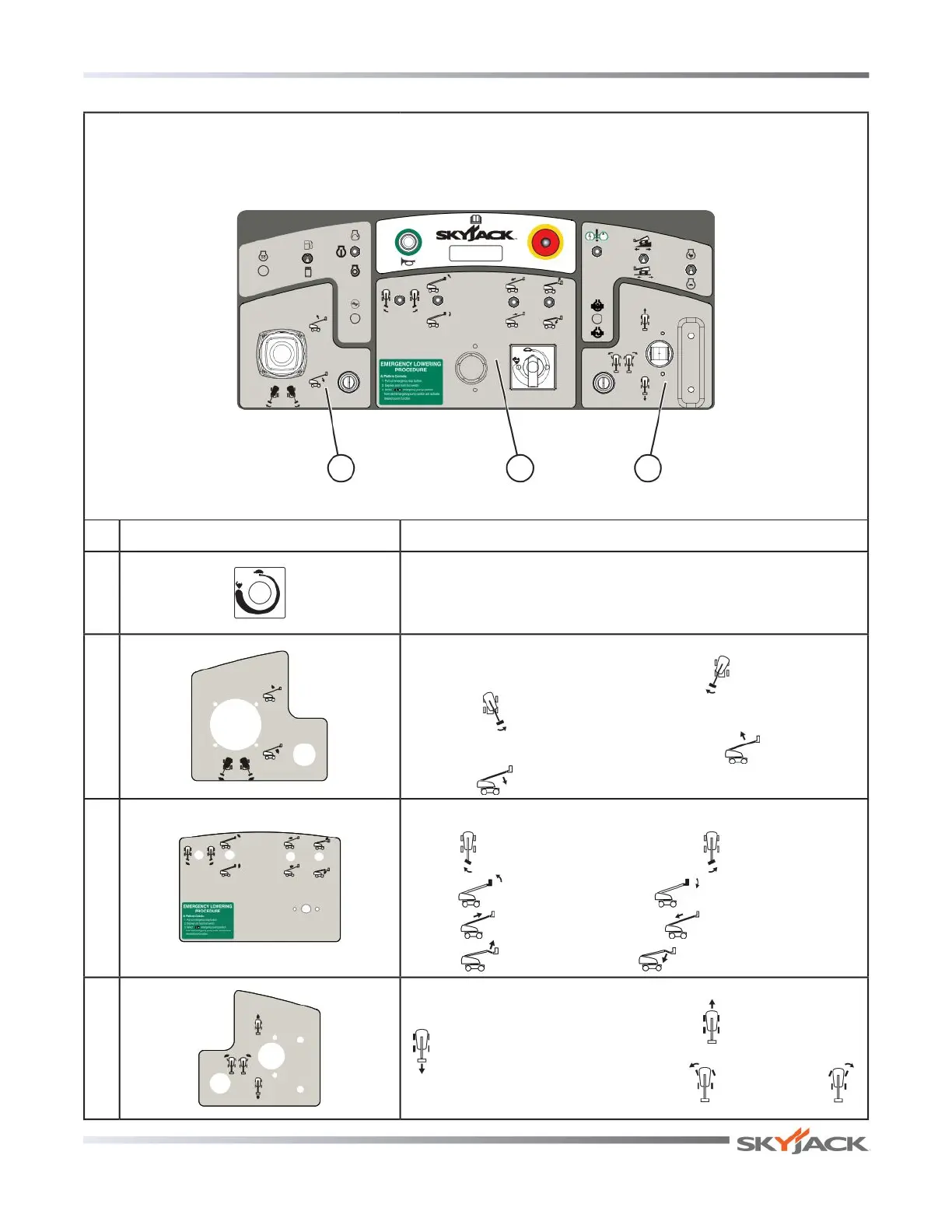

No. Label Pictorial Description
5
Boom Speed Adjuster Dial
Adjust dial to vary speed of y boom extension/retraction, jib raising/
lowering and platform rotation movements.
6
Boom/Turret Controller
Push and hold controller in this direction “ ” to rotate turret to
the left or “ ” to rotate turret to the right.
Push and hold the controller in this direction “ ” to raise main
boom or “ ” to lower main boom.
7
Boom/Jib/Platform Controls
Select “ ” to rotate platform to the left or “ ” to the right.
Select “ ” to tilt platform up or “ ” to tilt platform down.
Select “ ” to extend y boom or “ ” to retract y boom.
Select “ ” to move jib up or “ ” to move jib down.
8
Drive/Steer Controller
Push and hold controller in this direction “ ” to drive forward or
“ ” to drive backward.
Push and hold controller in this direction “ ” to steer left or “ ”
to steer right.
Platform Control Console (Continued)
6 87
SJ 40T & SJ 45T
SJ 61T & SJ 66T
Page 99
