238261AAA SJ40 T+, SJ45 T+
24
Section 3 – Familiarization Control functions

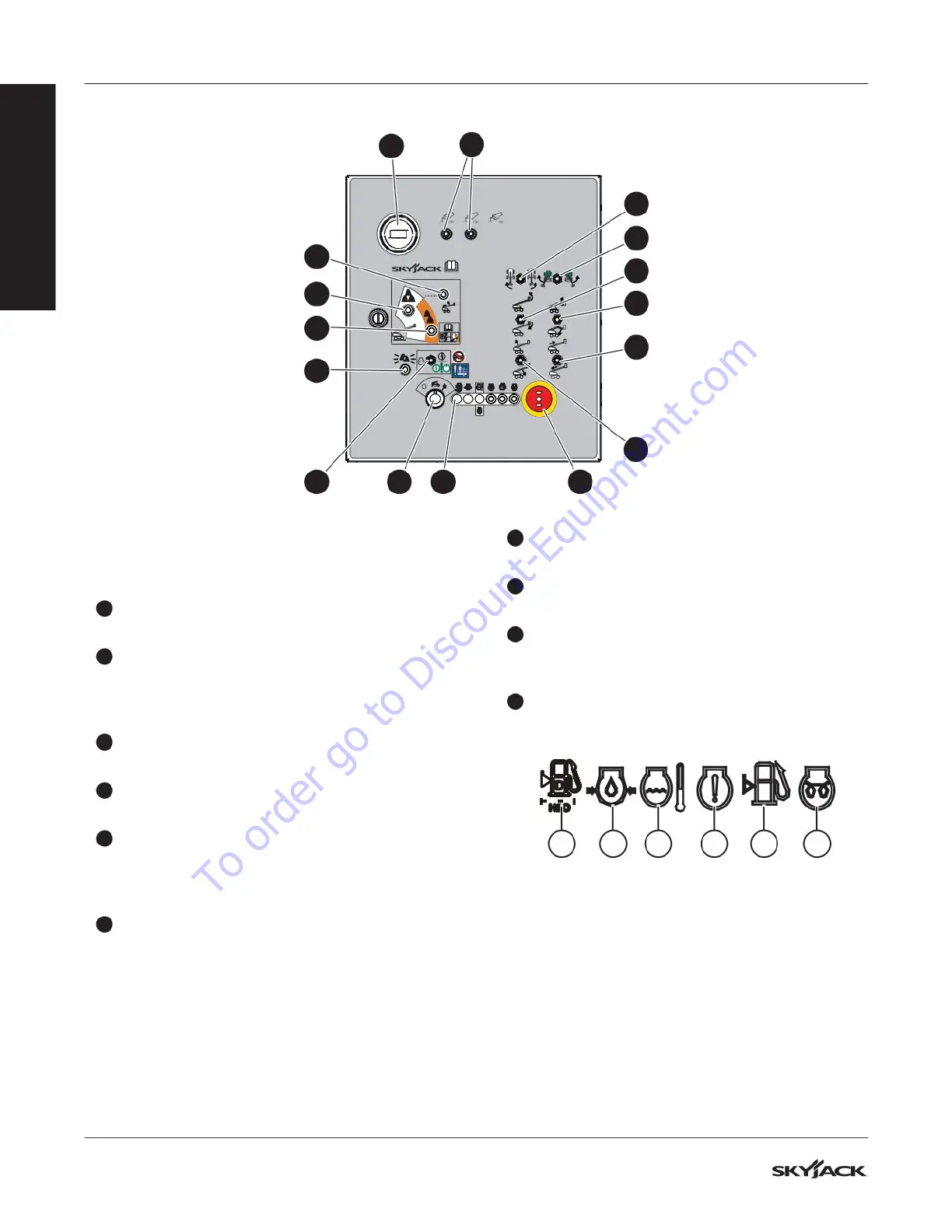

3.3-5 Base control console
Refer to Section 3.1 for the location of the base control
console.
1
Hourmeter: This display shows the hours of
operation.
2
Circuit breaker: If a power overload or positive
circuit grounding occurs, the circuit breaker
comes out. Push the circuit breaker back into
the initial position to reset the power.
3
Platform rotation: This switch controls the left or
right rotation of the platform.
4
Turret rotation: This switch controls the left or
right rotation of the turret.
5
Platform-leveling override: This switch
overrides the automatic platform-leveling function
and controls the tilt up or tilt down function of the
platform.
7
6
Jib up/down: This switch controls the up or
down movement of the jib.
7
7
Boom extend/retract: This switch controls the
extension or retraction of the boom.
7
8
Main boom raise/lower: This switch controls the
raise or lower function of the main boom.
9
Emergency-stop: This button disconnects power
to the control circuit and stops the engine. Pull to
connect the power again.
7
10
Status indicator pilot lights: These lights show
the operation condition and errors in the control
or engine functions.
A B C D E F
FAMILIARIZATION
1
3
4
5
6
7
8
911
15
14
13
16
12 10
2
