238261AAA SJ40 T+, SJ45 T+
74
Section 6 – Additional Procedures Chassis tilt recovery
6.2 Chassis tilt recovery
IMPORTANT
When the boom is raised or extended, the MEWP
must be operated on a firm, level surface.
WARNING
Tip-over hazard. When the tilt settings are
exceeded, the alarm makes a sound and the light
illuminates. The platform must be lowered and
retracted immediately (refer to Section 3.4-5). If
you do not obey, there is a risk of death or serious
injury.
6.2-1 Platform uphill
If the MEWP becomes tilted with the platform uphill
(refer to Figure 08), follow the steps below to go back
to a lowered and retracted position.
1. Lower the jib to horizontal (if equipped)
2. Fully retract the main boom
3. Fully lower the main boom.
4. Drive to a firm, level surface.
6.2-2 Platform downhill
If the MEWP becomes tilted with the platform downhill
(refer to Figure 09), follow the steps below to go back
to a lowered and retracted position.
1. Fully retract the main boom.
2. Drive to a firm, level surface.

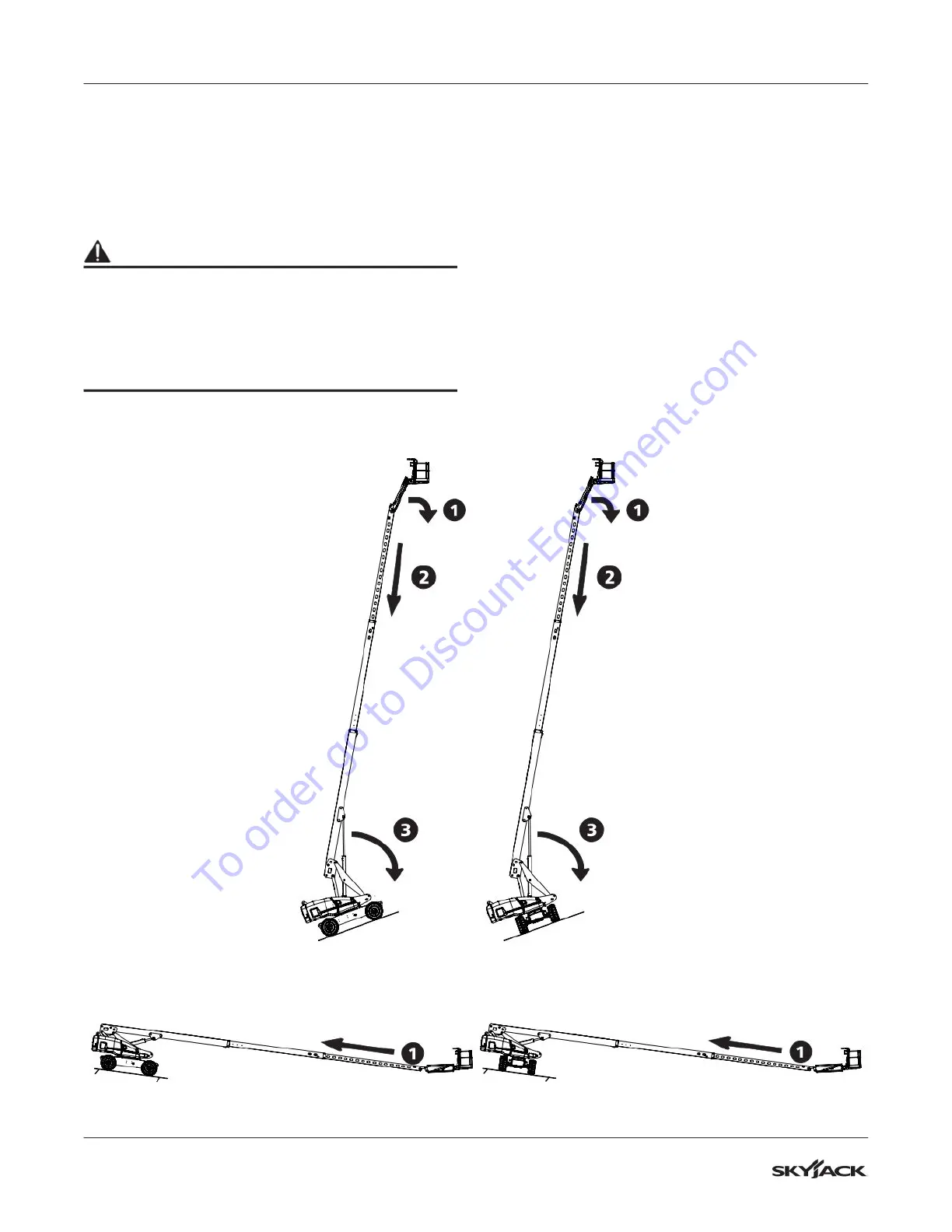

Figure 08 Platform uphill
Figure 09 Platform downhill
