Rough Terrain Scissors
TM
Function Tests Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
Horn Pushbutton
Choke (Dual Fuel)/
Glow Plug (Diesel)
Pushbutton
Engine Start
Switch
Emergency Stop
Button
Torque Switch
Lift/Drive/Steer
Controller
Low/High Throttle
Switch
Rocker Switch
Lift/Drive/Steer Enable
Trigger Switch
Lift/Drive Switch

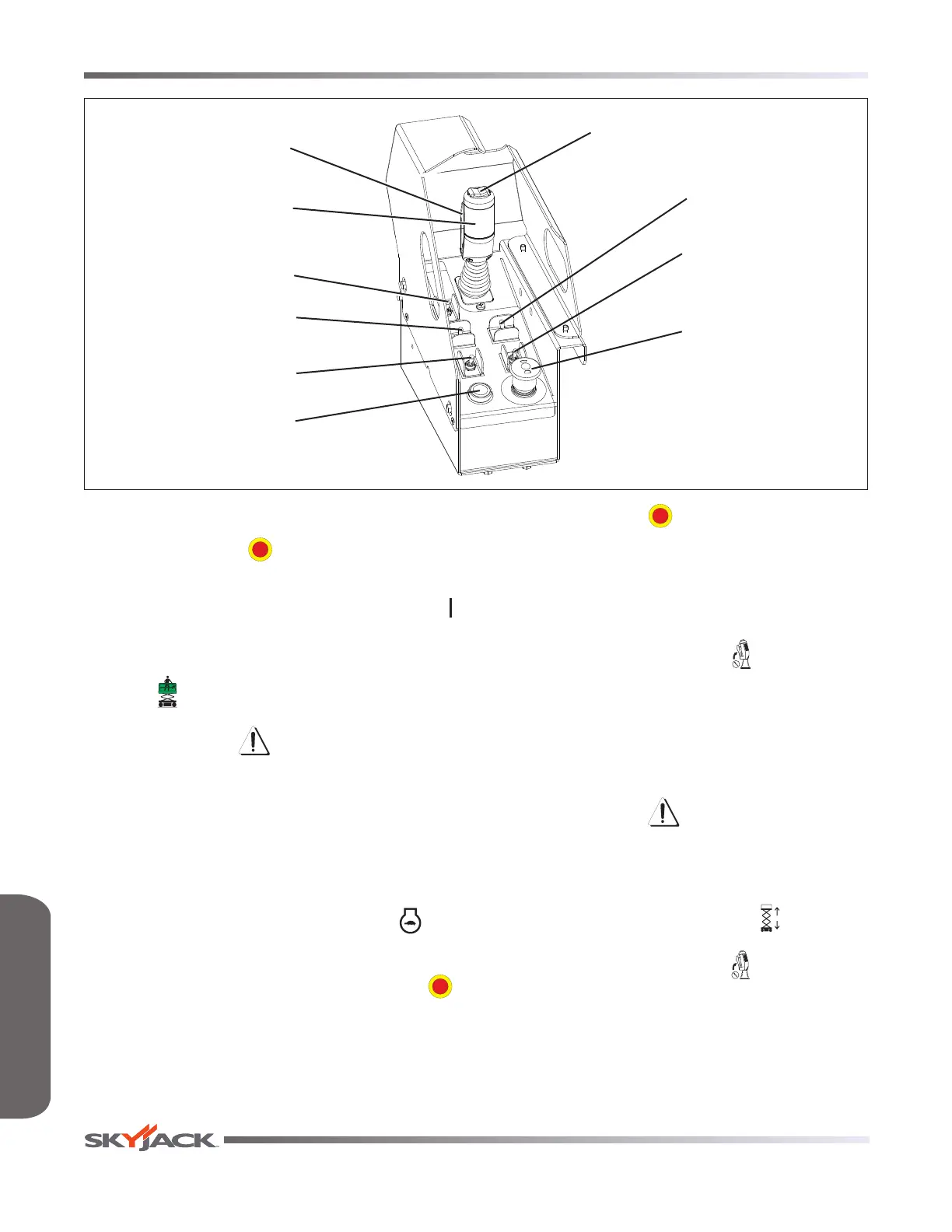

2.4-3 Platform Control Console
1. Ensure base “ ” emergency stop button is
pulled out.
2. Ensure main power disconnect switch is in “ ”
on position.
3. Select platform/engine/base key switch to
“ ” platform position and remove key.
WARNING
Ensure that you maintain three points of
contact when using the ladder to mount/
dismount platform.
4. Use the ladder of MEWP to access platform.
5. Close the gate.
6. Ensure low/high throttle switch is in “ ” low
throttle position.
7. On platform control console, pull out “ ”
emergency stop button.
• Test Emergency Stop
1. Ensure engine is running.
2. Push in “ ” emergency stop button.
Result: Engine should not shut down but
platform functions should not operate.
• Test Enable Trigger Switch
1. Ensure engine is running.
2. Without activating “ ” enable trigger
switch, attempt to activate any platform
function.
Result: All platform functions should not
operate.
• Test Platform Raising/Lowering
WARNING
Be aware of overhead obstructions
or other possible hazards around the
MEWP when lifting.
1. Select lift/drive switch to “ ” lift position.
2. Activate and hold “ ” enable trigger
switch.
3. Push or pull controller handle until desired
height is reached.
Result: Platform raising and lowering
functions should operate.
To Next Page
