Rough Terrain Scissors
TM
Tables Section 4
Floor Loading Pressure
Length
Width
Width
LengthLength
Length
Width
Diameter
(Feet)
Minimum safe approach distance
A
Over 750KV to 1000KV
Over 500KV to 750KV
Over 50KV to 200KV
Over 200KV to 350KV
Over 350KV to 500KV
Over 300V to 50KV
0 to 300V
128742AA
13.72
10.67
7.62
6.10
4.60
(Meters)
3.05
Avoid contact
45
35
25
15
20
10
WARNING
Intermixing tires of different types or using tires of types other than those originally supplied
with this equipment can adversely affect stability. Therefore, replace tires only with the exact
Skyjack-approved type. Failure to operate with matched approved tires in good condition may
result in death or serious injury.

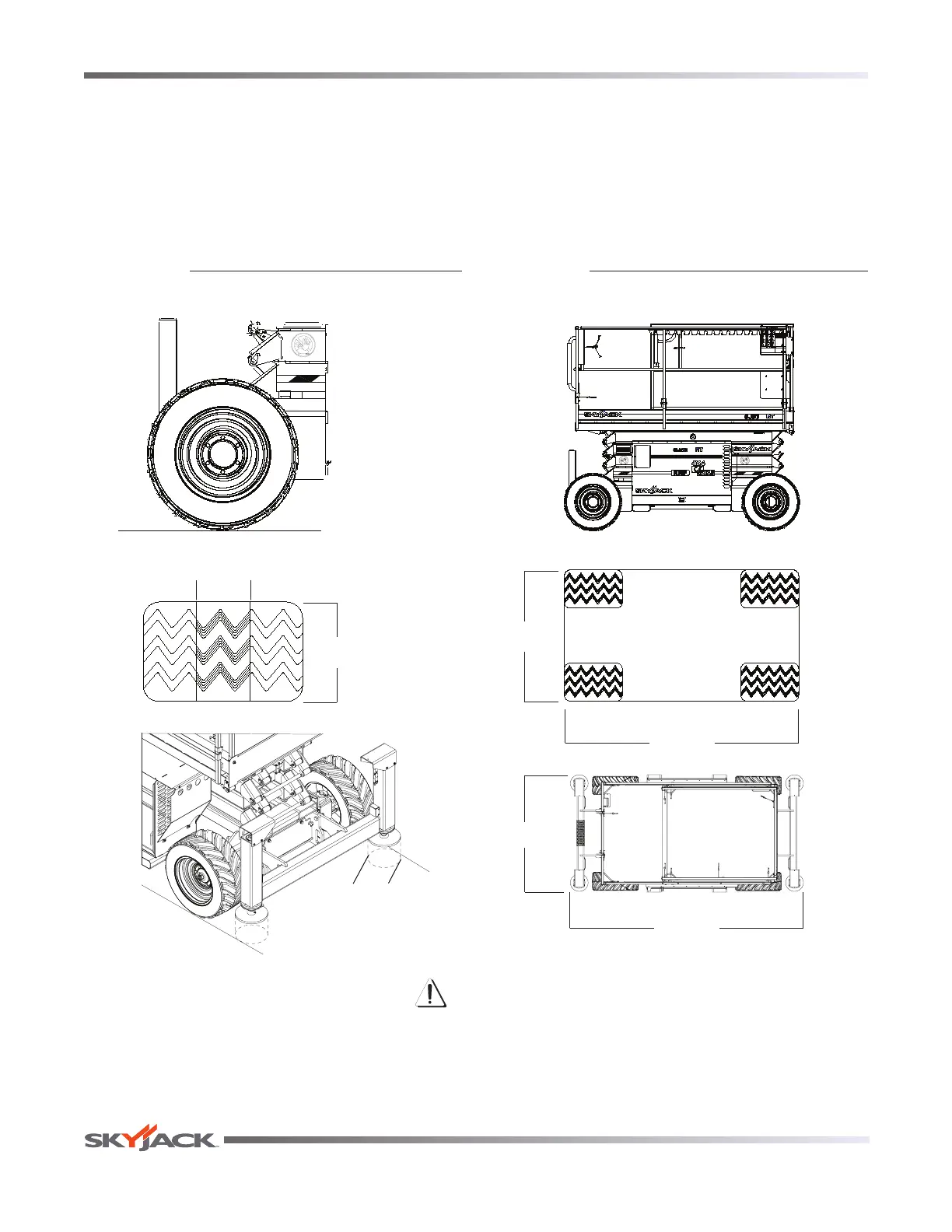

Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):
Foot Print Area = Length x Width
=πr
2
Base Area = Length x Width
LCP =
Weight of Aerial Platform + Capacity
Foot Print Area x 4 (Tires)
OUP =
Weight of Aerial Platform + Capacity
Base Area
