Rough Terrain Scissors
December 2007 Page 79

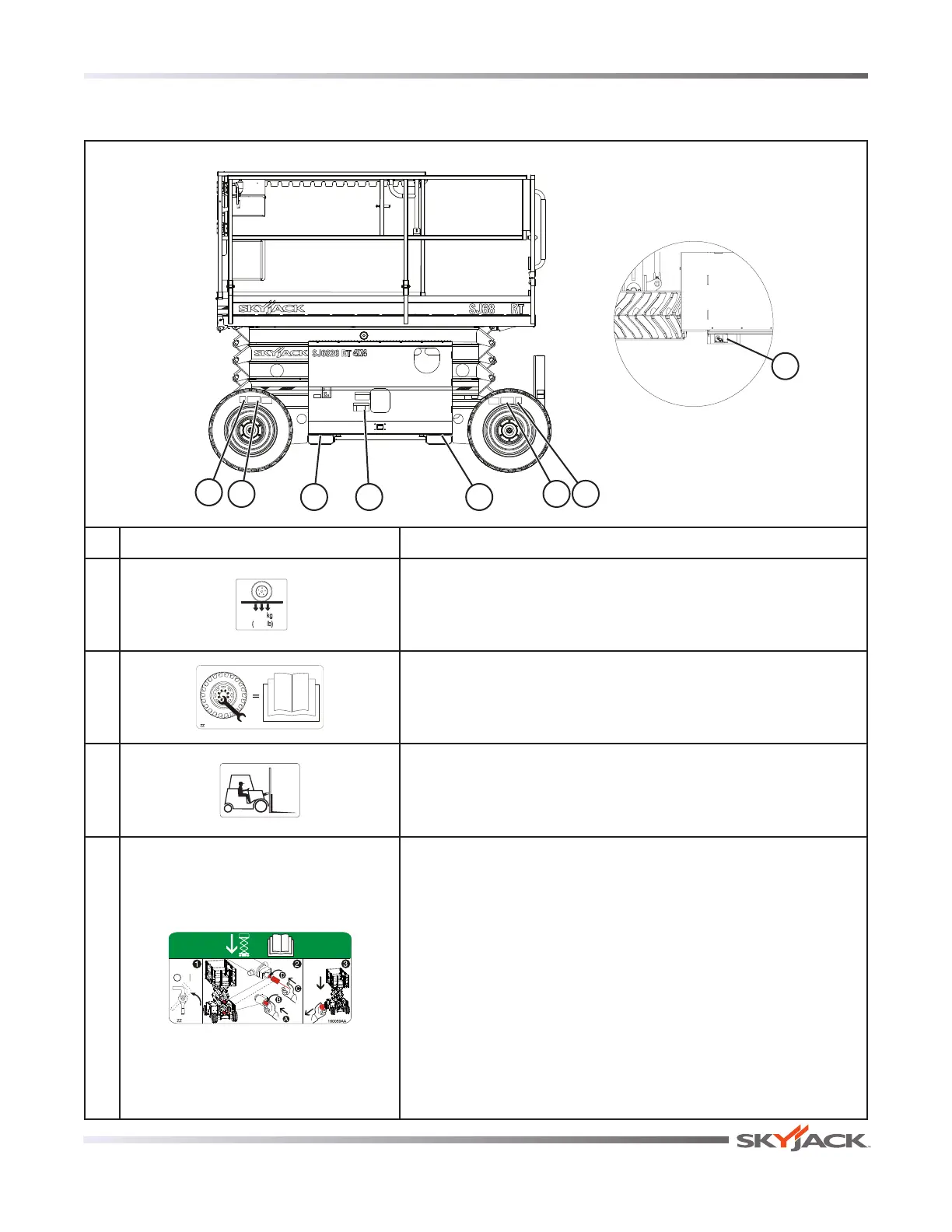

Section 5 Labels
No. Label Pictorial Description
6
Wheel Load
Indicates rated wheel load.
7
Wheel Specifications
Refer to manual for wheel type, offset, pressure and torque.
8
Forklift Pocket
Insert fork fully into pocket to lift MEWP.
9
Emergency Lowering Procedure
Refer to Operating manual.
1. Turn main power disconnect switch to off position.
2. To open the lift cylinder holding valves located at the bottom of
each cylinder:
if higher reach required, use emergency lowering rod
located on the top of the base to:
(A) push
(B) turn knurled knob counterclockwise.
3. To lower the platform, pull out emergency lowering valve
located on the outside of the hydraulic tray.
Top View
Left Side
8 9 8
7 7
8
6
6
