GENERAL INFORMATION
THERMO-SAFETY FEATURE - RECEIVER (T/S - RX)
When the ambient temperature at the THERMISTOR, inside the receiver case, reaches 130°F, the THERMISTOR will automatically
send 10 seconds of power to the down or off terminal on the valve to shut the fireplace system down and the RECEIVER will begin
emitting a series of 2 "beeps" every 4 seconds. When the ambient temperature, at the RECEIVER, drops between 120° F and 130° F,
the user can reactivate the fireplace by pushing either button on the transmitter. When any transmitter button is pressed, the
THERMISTOR "resets" itself and the fireplace will begin operating again. However, the "beeping" will continue, if the ambient
temperature remains between 120° F and 130° F. This "beeping" alerts the user that the RECEIVER should be repositioned so the
ambient temperature drops below 120° F.
When the temperature drops below 120° F, the "beeping" will cease, providing the user has "reset" the THERMISTOR by pushing
either transmitter button to operate the fireplace. Allow sufficient time for receiver to cool below 120° F, and then press transmitter
button to stop beeping.
CP (CHILDPROOF) FEATURE
This SKYTECH remote control includes a CHILDPROOF “LOCK-OUT” feature that allows the user to “LOCK-OUT” operation of the
appliance, from the TRANSMITTER.
SETTING “LOCK-OUT” –(CP)
• To activate the “LOCK-OUT” feature, press and hold the ON/HI
button and the MODE button at the same time for 5 seconds. The
letters CP will appear in the TEMP frame on the LCD screen.
• To disengage the “LOCK-OUT”, press and hold the ON/HI
button and the MODE button at the same time for 5 seconds and the
letters CP will disappear from the LCD screen and the transmitter will return to its normal operating condition.
• To verify that transmitter is in the CP lock-out mode press any key and the LCD screen will show “CP”
NOTE:
If the appliance is already operating in the ON or THERMO MODES, engaging the “LOCK-OUT” will not cancel the operating
MODE. Engaging the “LOCK-OUT” prevents only the manual operation of the TRANSMITTER
. If in the auto modes, the THERMO
operation will continue to operate normally. To totally “LOCK-OUT” the operation of the TRANSMITTER’S operating signals; the
transmitter’s MODE must be set to OFF.

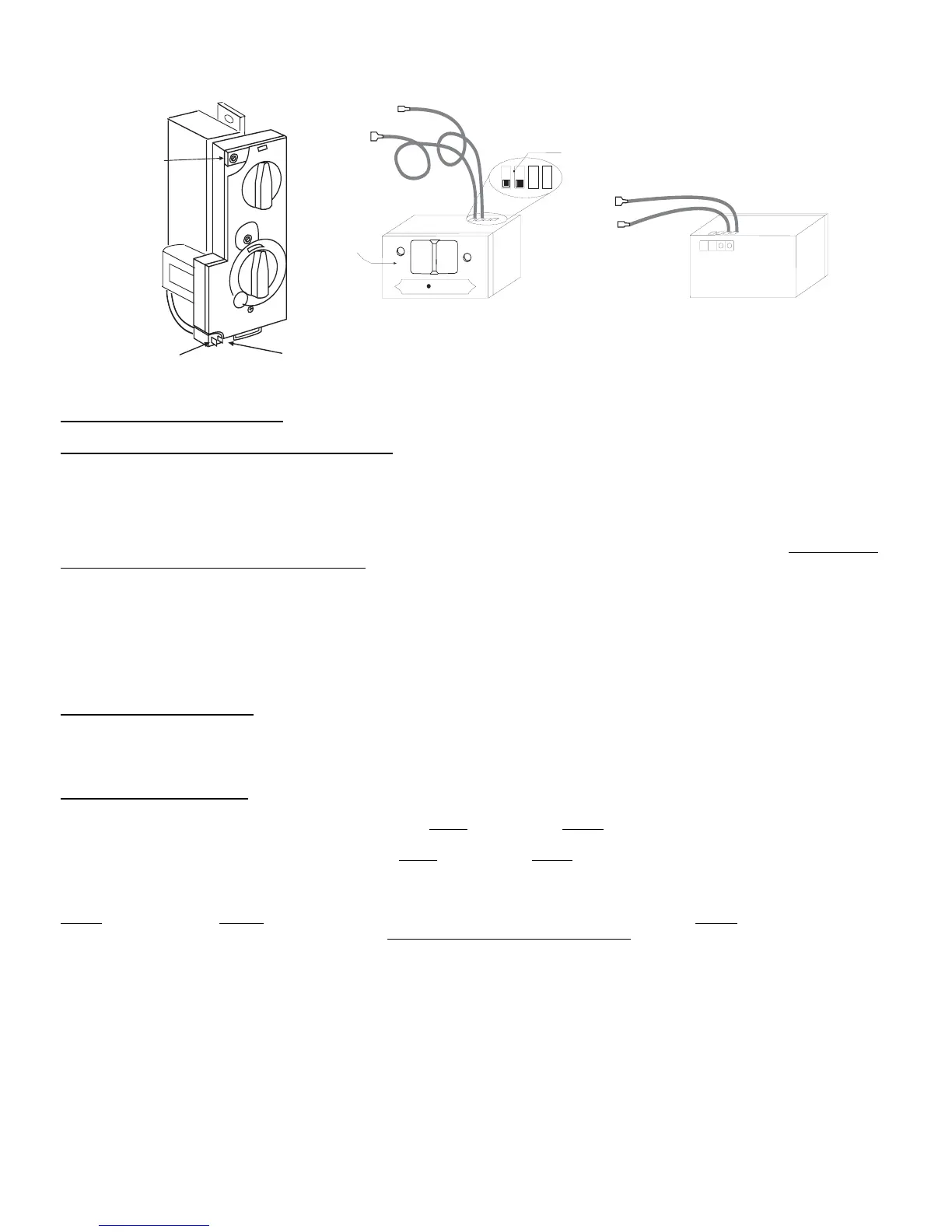

Remote Receiver
Receiver
Slide
Button
REMOTE
OFF
SERVO
MOTOR
1/4” Female
Terminal
7/32” Female
Terminal
1/4” Female
Terminal
7/32” Female
Terminal
(Back of Receiver)
LEARN
ADJ.
O
N
O
F
F
P
I
L
O
T
I
G
N
O
F
F
ON
1/4” Male
Terminal
HI/LO STYLE SERVO
MOTOR VALVE
7/32” Male
Terminal
Pilot Adjustment
