Skytrac DVI-300 User Manual

DVI-300 Installation Manual
Document Rev. 01.004 DOC0456 Page 9 of 31
Restricted Proprietary and Confidential Information
1.3 SYSTEM COMPONENTS
The DVI-300 is a component of the ISAT-200 System. The DVI-300 requires an ISAT-200 with up to date
firmware. Refer to the DVI-300 User’s Guide (DOC0499) or www.skytrac.ca for the firmware revisions needed for
the DVI-300 and ISAT-200.
1.3.1 ISAT-200
The ISAT-200 is the primary component of the ISAT-200 System. The ISAT-200 provides position reporting and
messaging with global coverage in near real time. The DVI-300 is a user cockpit control head to the ISAT-200
system. Please refer to the ISAT-200 installation manual for more information regarding installation of the ISAT-
200.

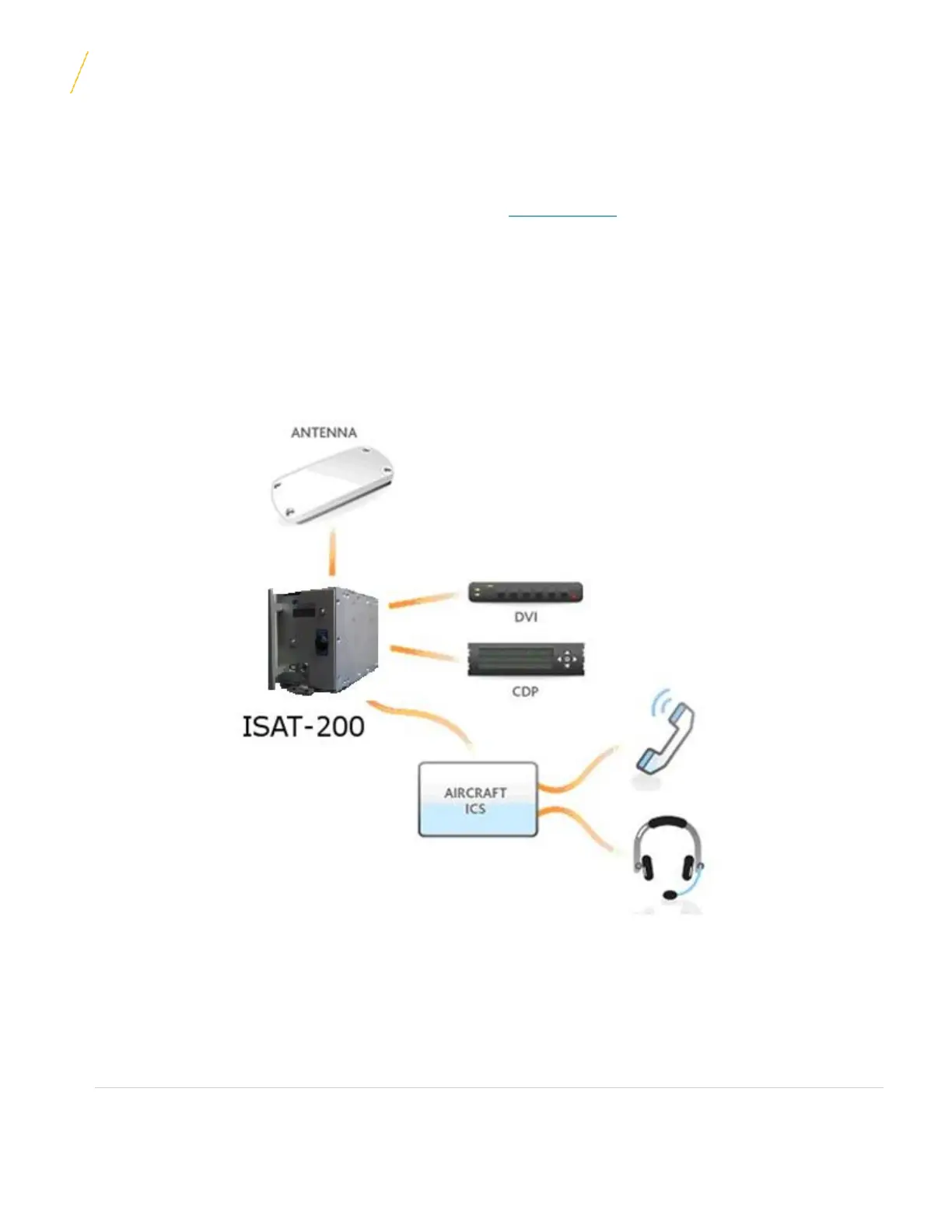

Figure 1— ISAT-200 System Block Diagram
UNCONTROLLED COPY IF PRINTED

Skytrac DVI-300 Specifications

General

Brand	Skytrac
Model	DVI-300
Category	Recording Equipment
Language	English
