SkyTracker STX-1-2000 - Page 45

Item Part No. Description
33 3250023 Expansion Spring Assembly
33a 3198635 Eyebolt & Ball Joint Assembly
- 3220077 Spring Retainer, Threaded
- 3220076 Cap, Black Plastic
- 3250502 Tension Assembly (Items 26,27 & 31-33) STX-1 only
34 3240220 Stand-Off Bracket
35 3270137 Timer Control PC Board (replace with 32-00578)
36 71307000 Blower Grille
37 71627000 Blower, 220 V.AC, 50/60 Hz.
- 88253000 Blower Cord & Plug
38 5134013 Ground Lug
39 3161048 Toggle Switch (3 req.d)
40 3161030 Pushbutton Switch
41 9169004 Speed Control Potentiometer, 10k Ohm
42 3132001 Elapsed Time Meter
43 3161092 Circuit Breaker
- 2121039 Fuse Holder (2 req’d.)
- 8121007 Fuse, 10 A.
- 40191000 Ammeter
- 3200327 Control Panel Assembly (Items 1, 39-43)
PARTS LIST, Figure 3 (continued)
41
3198635
4258001
4257001
4257104
3220076
3220077
3158004

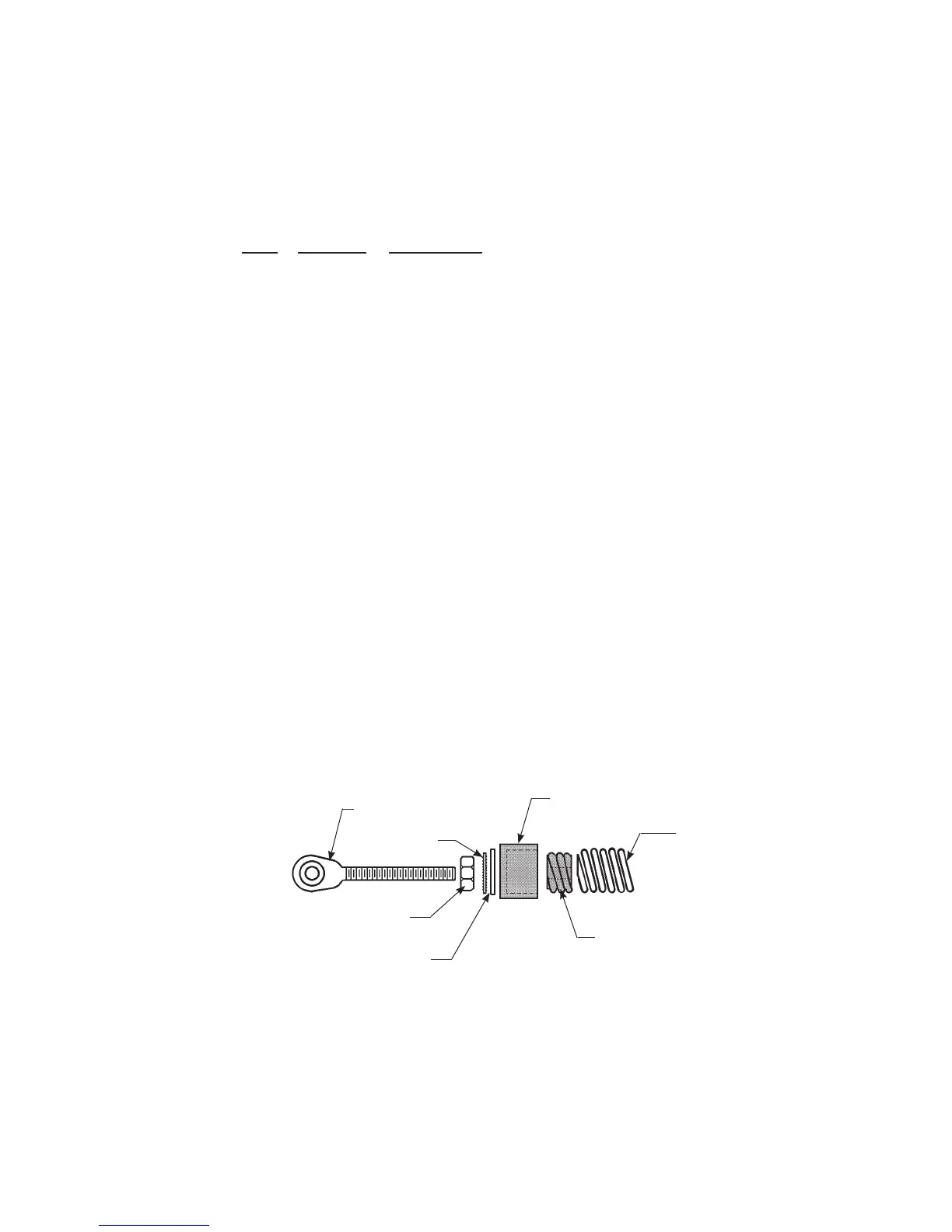

DETAIL, Item 33
3158004 Expansion Spring
3198635 Eyebolt & Ball Joint
3220076 Cap
3220077 Spring Retainer, Threaded
4257001 Lockwasher, 1/4"
4257104 Flatwasher, 1/4"
4258001 Hexnut, 1/4-20
