PARTS LIST

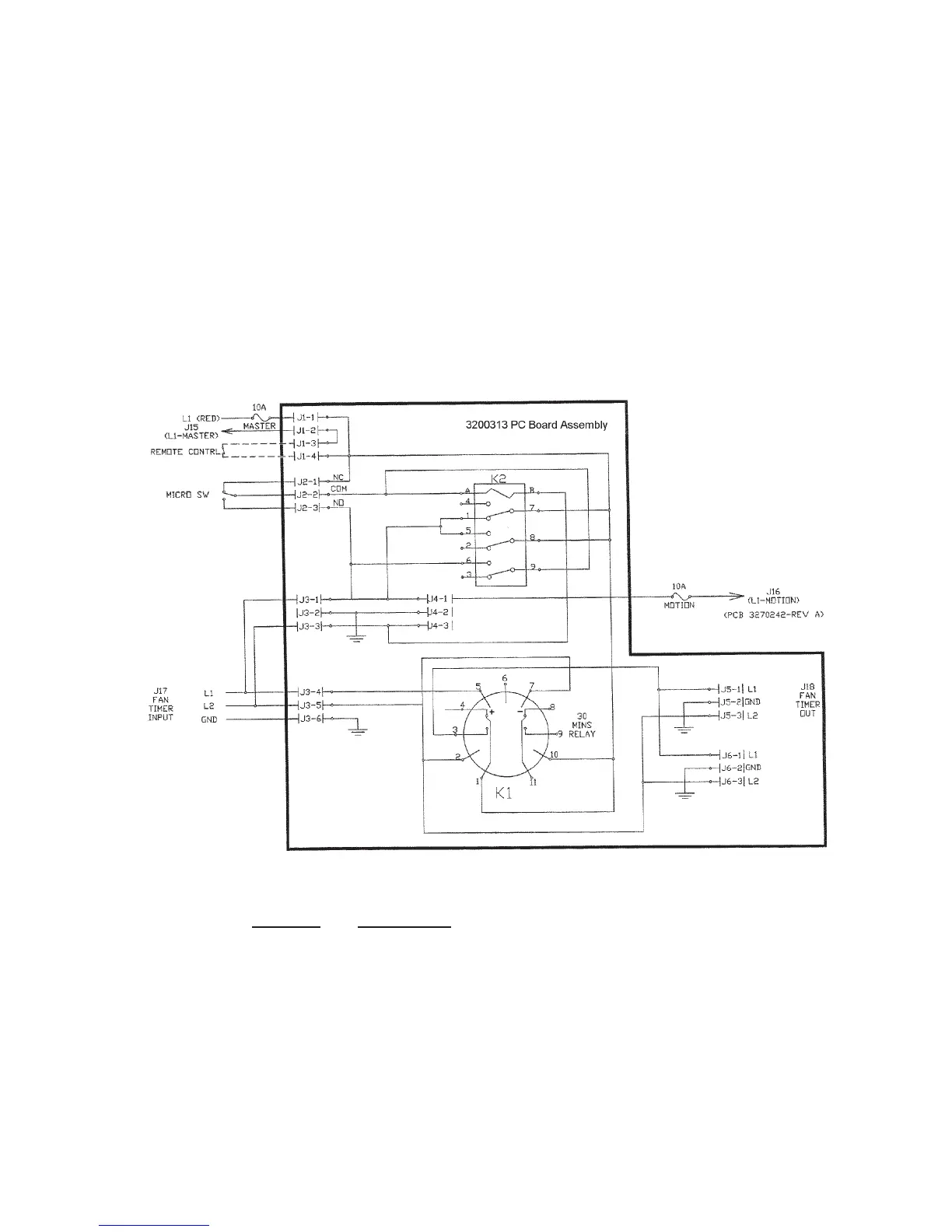

Figure 5
The 3200301 “Architectural” feature is a factory-installed STX-4 option which permits
extinguishing the lampheads and initiating a timed, forced-air lamp cooling cycle from a
remote location. The (4) lampheads also “park” in the upright position. The sequence is
actuated by closure of a customer-supplied switch connected to J1-3 and J1-4.
Part No. Description
3200313 Printed Circuit Board Assembly (incl. K1 & K2)
3145043 Delay Relay, 240 V. (K1)
3145071 Relay Socket for K1
71653000 Relay, 240 V. (K2)
2140002 Relay Socket for K2
3161012 Microswitch, “Park” Heads
3220233 Cam, Microswitch
3200312 Wire Harness Assembly
47
