SkyTraq PX1172R - Mechanical Dimensions; Module Dimensions and Layout

8
www.skytraq.com.tw

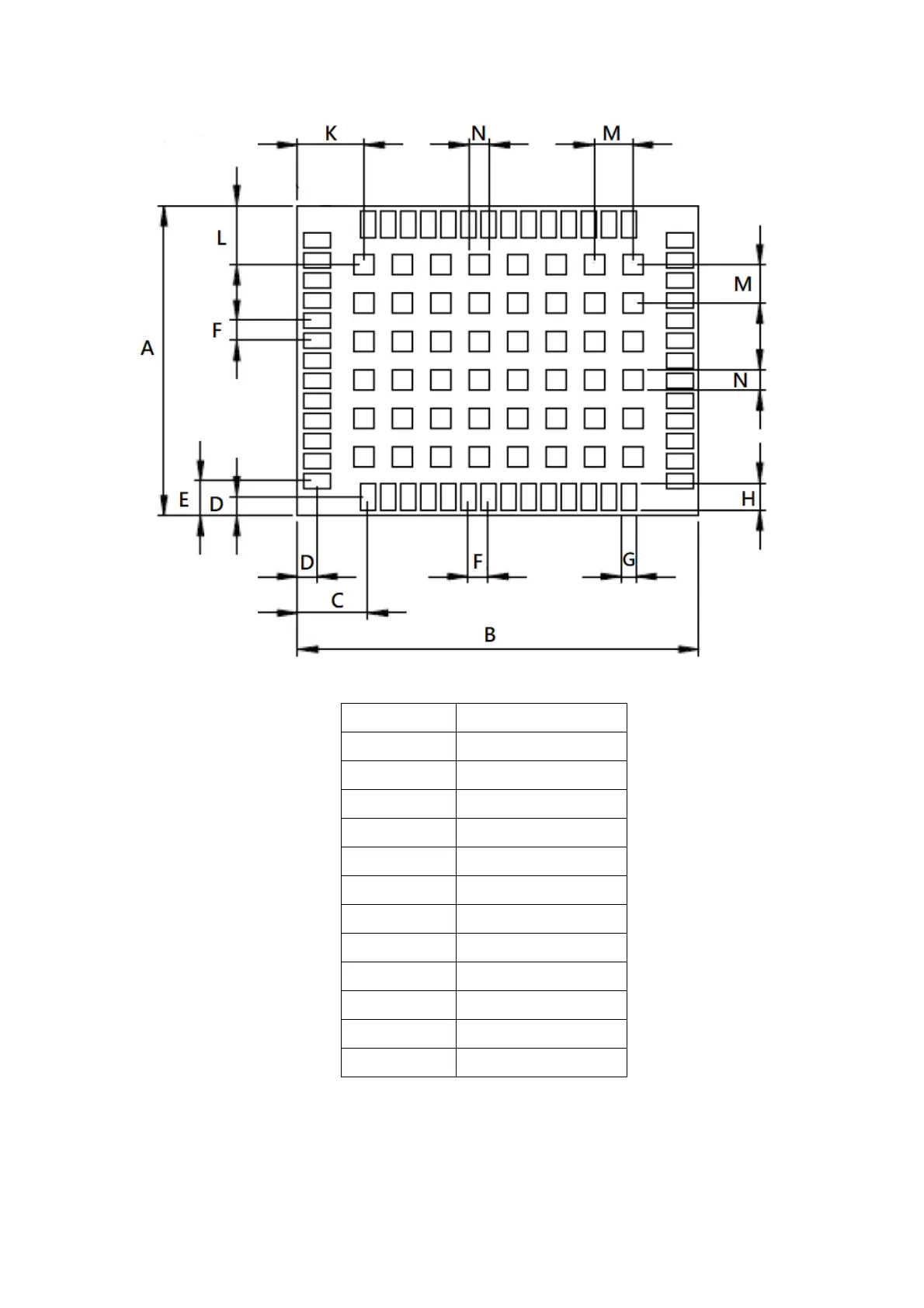

MECHANICALDIMENSION


Symbol Dimension(mm)
A 17.00
B 22.00
C 3.85
D 1.05
E 1.90
F 1.10
G 0.80
H 1.50
K 3.65
L 3.25
M 2.10
N 1.10




