3-6. FLEX SYSTEM DIAGNOSIS CHART
Reason
Incorrect Speed Adjustment (Trendelenburg,
Back
section or Flex - check with gauge)
Spool Valve Not Centered
Bad Check Valves
Low on Oil
Pinched Hose
Defective Mini-Valve
Pressure Relief Valve Not Set Properly
Bad Solenoid
Defective Relay Box or Pendant Control
Kidney Bridge Raised
Defective or Dirty Check Valves
Oil Leakage in Circuit
Air Inside Cylinder
Pinched Hose
Low on Oil
Problem
Back Section or Trendelenburg function moves
improperly
NOTE
If Flex System does not function
properly, check the back section and
Trendelenburg functions before adjust-
ing the flex system.
Back Section or Trendelenburg function chatters
or loses position

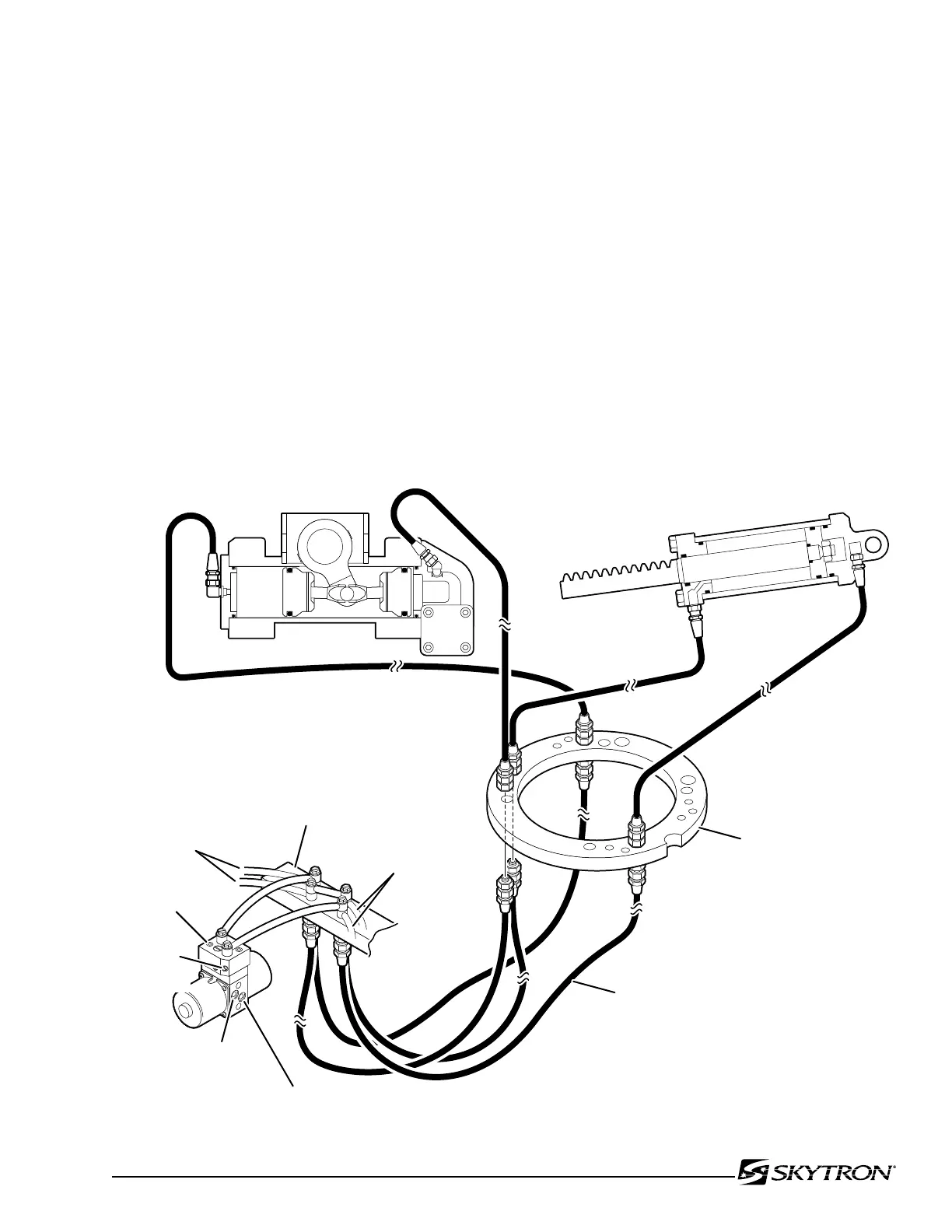

Figure 3-4. Flex System Circuit
041905.040
TO TRENDELENBURG
MINI-VALVE
TO BACK SECTION
MINI-VALVE
SPEED
CONTROL
CHECK
VALVE
PLUMBING
TERMINAL
TRENDELENBURG CIRCUIT
BACK SECTION CIRCUIT
CLAMP RING
MINI-VALVE
INTERNAL OIL RETURN TO RESERVOIR
INTERNAL
OIL FROM PUMP
FLEXIBLE
HOSE
