IDP 600 Terminal Series - Hardware Guide
T200, Version 02 44 © SkyWave Proprietary

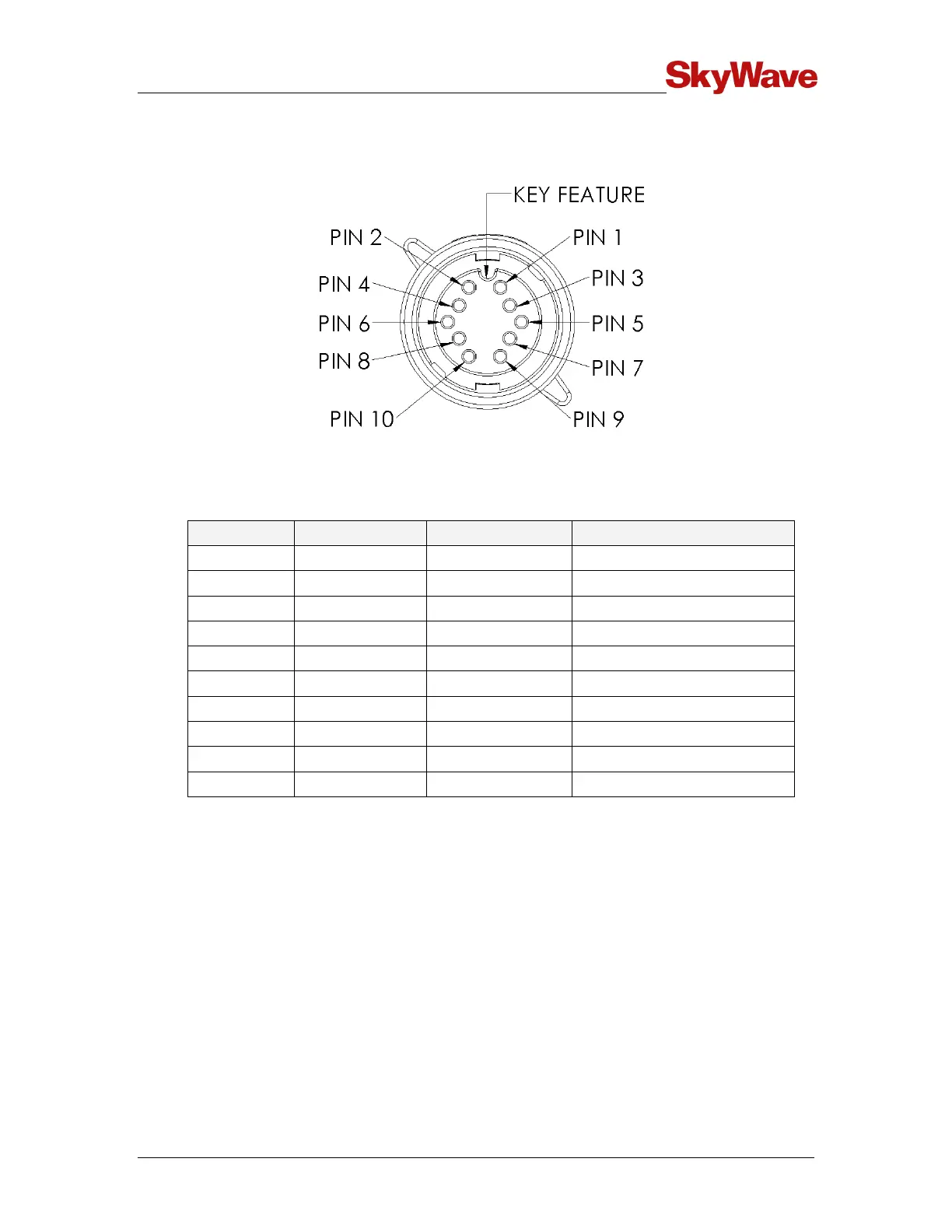

Figure 43 Face View of IDP 600 Series Mating Cable Connector
Connector Face View
Table 10 IDP 600 Series Mating Cable Color Code
Position
Color
Wire Gauge
Functionality
1
White
22 AWG
RS-485_A
2
Grey
22 AWG
RS-485_B
3
Black
20 AWG
Ground
4
Red
20 AWG
VIN (Vbatt)
5
Green
22 AWG
I/O 02
6
Blue
22 AWG
I/O 03
7
Brown
22 AWG
I/O 01
8
Purple
22 AWG
I/O 04
9
Orange
22 AWG
RS-232 Tx (output)
10
Yellow
22 AWG
RS-232 Rx (input)
