TR Series
11
II. CLEAN STEAM BOILER SYSTEM.
A. Fill the boiler to water line indicated on the boiler.
B. Follow start up procedure for burner and operate the boiler with
steam in the entire system for 2 or 3 days to bring oil and dirt
from the system to the boiler. While system is in operation,
maintain the proper water level in the boiler by slowly adding
water to the boiler.
C. Shut down burner, cool down boiler and drain system.
D. Procedure to dissolve oil and grease in boiler:
1. Fill boiler to proper water line.
2. Prepare a boil out solution of sodium hydroxide (caustic
soda) and tri sodium phosphate:
NOTE: Use caution in handling chemicals. Caustic soda is
harmful to skin, eyes and clothing.
(a) Proportions: 2.25 kg per 190 L (1 lb per 50 gal) of system
water.
(b) Stir chemicals into water until dissolved and pour into the
boiler through a top tapping. Replace plug.
3. Start the burner; boil the water for at least 5 hours; shut off
the burner.
E. With CAUTION, drain the boiler solution to a safe location. DO
NOT LEAVE SOLUTION SITTING IN SYSTEM OVER 2
HOURS.
F. Wash the water side of the boiler thoroughly using a high pres
sure water stream. Fill and drain the boiler several times.
III. TREATING WATER FOR CORROSION CONTROL
(This is not scale control)
A. Prepare a solution of sodium chromate.
Proportions: 2.25 kg per 190 L (1 lb per 50 gal) of boiler water.
B. Stir chemical in water until dissolved and pour into boiler
through a top tapping. Replace plug.
IV. FILLING AND VENTING THE STEAM BOILER
A. Refill the boiler to the indicated water line.
B. Bring water to boiling temperature, promptly.
C. The boiler is now ready to be put into service or on standby.
BLOWING OFF A LOW PRESSURE STEAM BOILER
A. A 1 1/2" NPT tapping is provided in the front of the boiler (tapping
no. 9, figure 1) for use as a surface blow down to provide rapid
skimming of oil and grease which accumulate on the surface of the
water. The boiler should be blown down as outlined below.
B. Turn off electrical power supply to boiler. Allow boiler to cool down
and steam pressure to reduce to zero before removing skimmer
tapping plug. Check for steam pressure by testing the pop safety
valve. Keep your hands and all parts of your body away from the
discharge end of the safety valve. Drain boiler down one to two
inches below skimmer tapping. The water might be hot. Remove
skimmer plug slowly and carefully install a 150 psi malleable iron 1
1/2" NPT street elbow, a 1 1/2" NPT skimmer valve and length of
pipe and place a bucket underneath the open end of the pipe.
Cover bucket with a piece of cloth. (See figure 9)
C. Fill boiler slowly until water level is two inches from top of gauge
glass. (This is the starting water level for skimming only.) Fire boiler
to produce steam. If the system is heavily laden with oil, it may be
difficult to obtain much more than a pound or so of pressure. Set the
pressure control at about 48 kPa (7 psi). The higher the steam pres
sure you can use, the better and faster the cleaning.
D. As steam develops, open the SKIMMER drain valve with caution to
skim the oil and film from the top of the water. DO NOT open the
boiler drain valve. Close the skimmer drain valve when the water
level drops to about 127 mm (5") from the top of the gauge glass.
The water may stop before the level drops to 127 mm (5")below the
top of the glass. Refill boiler until water level is again two inches from
the top of the gauge glass.
E. Repeat (D) above until all film is skimmed off and the water
settles to a normal movement. Add make up fresh water to the boiler
as described in (D) above, during the blow off operation, to maintain
the proper skimming water level in the vessel. Empty bucket fre
quently in order to see the difference in water cleanliness.
F. When surging has stopped and water is clean, and no film can be
seen floating in the bucket, shut off boiler, drain down to level of
skimmer tapping, remove valve, plug skimmer tapping and refill the
mm in. mm in. L/m U.S.G/ft. mm in. L/m U.S.G/ft.
10 3/8 11 0.430 0.093 0.0075
13 1/2 40 16 0.622 0.195 0.0157 14 0.545 .0150 0.0121
16 5/8 17 0.666 0.225 0.0181
19 3/4 40 21 0.824 0.344 0.0277 20 0.785 0.311 0.0251
25 1 40 27 1.049 0.557 0.0449 26 1.025 0.532 0.0429
32 1
1
/4 40 35 1.380 0.967 0.0779 32 1.265 0.810 0.0653
38 1
1
/2 40 41 1.610 1.315 0.106 38 1.505 1.147 0.0924
51 2 40 53 2.067 2.159 0.174 50 1.985 1.998 0.161
64 2
1
/2 40 63 2.469 3.090 0.249 63 2.465 3.078 0.248
76 3 40 78 3.068 4.765 0.384 75 2.945 4.393 0.354
Nominal
Pipe Size
Schedule
No.
Inside
Diameter
Volume per
linear unit.
Inside
Diameter
Volume per
linear unit.
Standard Steel Pipe
Type L Copper Tube
VOLUME OF WATER IN STANDARD PIPE OR TUBE
WATER CONTENT OF BOILER
TR-20 TR-30 TR-40 TR-50 TR-60 TR-70
L U.S.G. L U.S.G. L U.S.G. L U.S.G. L U.S.G. L U.S.G.
Water Boiler 31.4 8.3 40.5 10.7 49.6 13.1 58.7 15.5 67.4 17.8 85.6 22.6
Steam Boiler 26.1 6.9 33.3 8.8 40.5 10.7 47.7 12.6 54.9 14.6
648 mm (25
1
/2")
NORMAL
OPERATING
WATER LEVEL
START OF SKIMMING LEVEL
51 mm (2") BELOW TOP OF
GAUGE GLASS

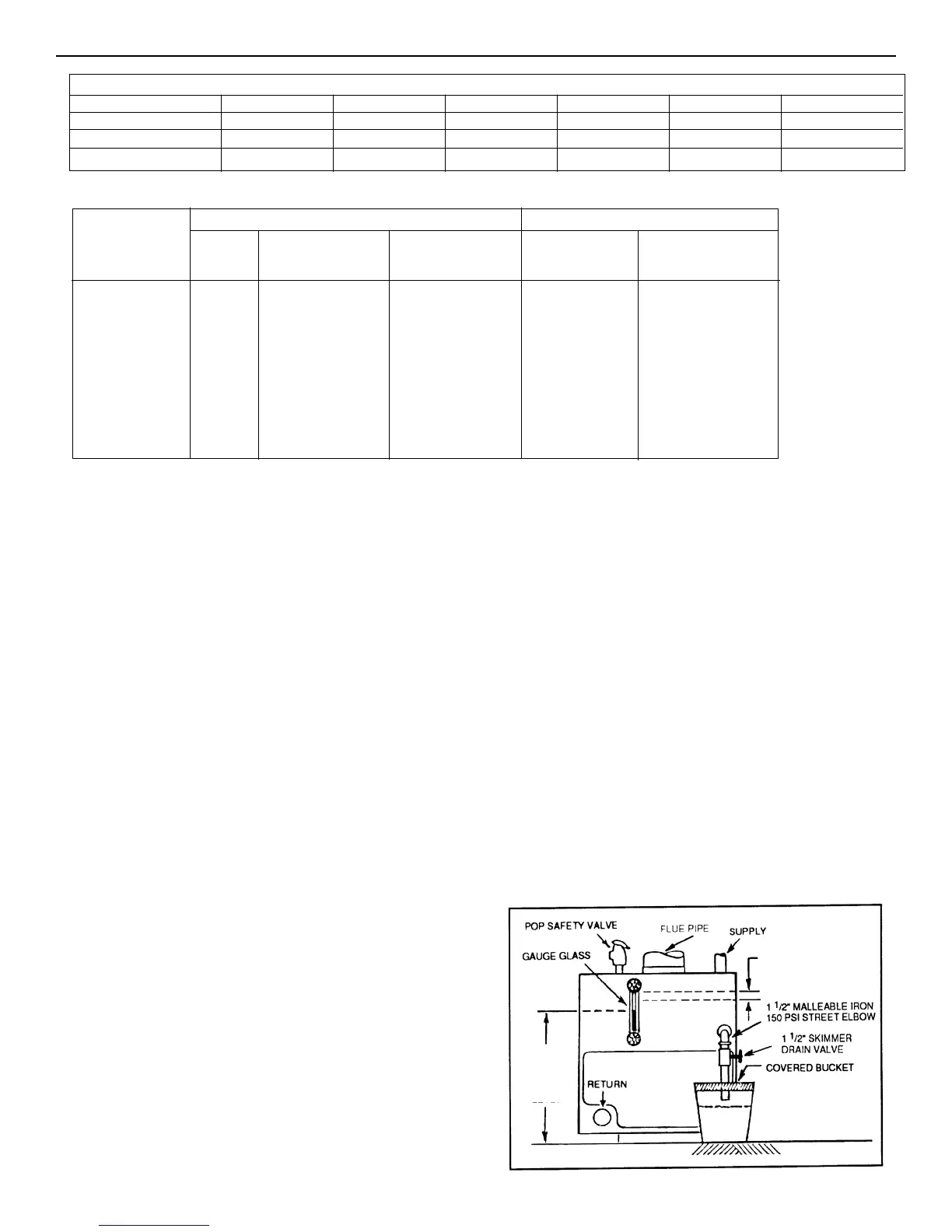

Figure 9
