Sloan OPTIMA EAF-150 Series - Battery Replacement; Troubleshooting Guide

5

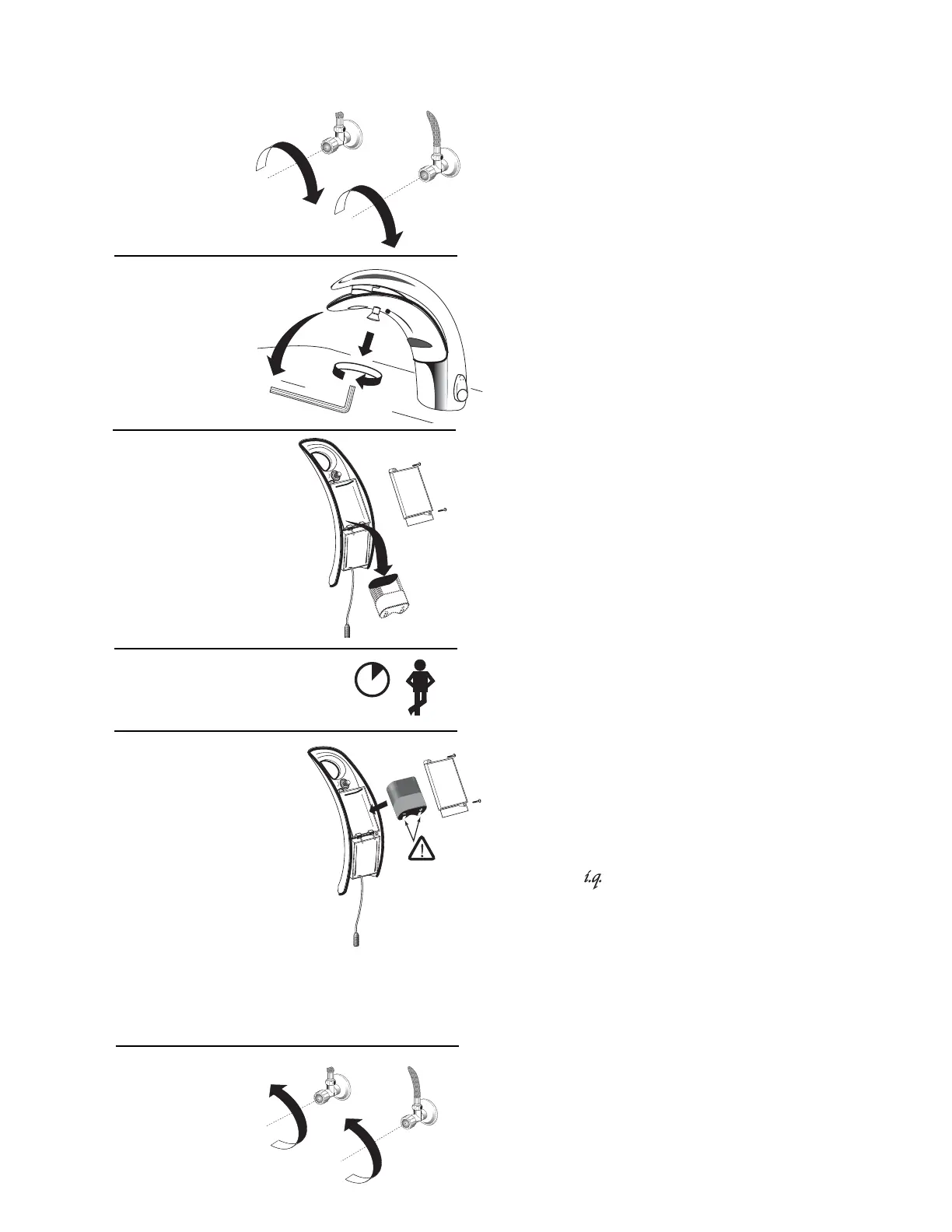

Step 1
Close Supply Stop(s).
BATTERY REPLACEMENT
Replace battery when red LED indicator flashes each time
Faucet is in use or when Faucet stops functioning.
Step 6
Open Supply Stops.
Step 2
Loosen Screw with hex
wrench.
Remove Throat Plate.
Disconnect electrical
lead at connector if
required.
Step 3
Remove Battery Cover
using a No. 1 Phillips
head screwdriver.
Remove old Battery.
Dispose of properly.
Step 5
Insert a new 6 Volt Type 2CR5
Lithium Battery. The red LED will
flash for one (1) minute.
Reinstall Battery Cover.
Reconnect electrical lead at
connector if previously
disconnected. Reinstall Throat
Plate.
If LED doesn't flash or if it just
lights up, remove the Battery.
Wait three (3) minutes, then reinsert the Battery.
If water flows continuously after inserting the new Battery
and opening the Supply Stops, remove the Battery. Wait
three (3) minutes, then reinsert the Battery.
3 min
Step 4
Wait three (3) minutes before
inserting new battery.
TROUBLESHOOTING GUIDE
11.. PPrroobblleemm:: FFaauucceett ddooeess nnoott ffuunnccttiioonn..
Cause: Adhesive packaging label affixed over sensor eye.
Solution: Remove adhesive label from sensor eye.
Cause: "Permanent Off" activated.
Solution: Press button on Faucet throat one time.
22.. PPrroobblleemm:: FFaauucceett ddeelliivveerrss wwaatteerr iinn aann uunnccoonnt
trroolllleedd mmaannnneerr..
Cause: Faucet is defective.
Solution: Contact the Sloan Valve Company Installation Engineering
Department at 1-888-SLOAN-14 (1-888-756-2614).
33.. PPrroobblleemm:: FFaauucceett ddooeess nnoott ddeelliivveerr aannyy wwaatteerr wwhheenn SSeennssoorr iiss aacct
tiivvaatteedd..
Indicator: Solenoid valve produces an audible “CLICK.”
Cause: Water supply stop(s) closed.
Solution: Open water supply stop(s).
Cause: Water supply stop strainer(s) clogged.
Solution: Clean water supply stop strainer(s).
Indicator: Solenoid valve DOES NOT produce an audible “CLICK.”
Cause: Battery low (EAF-150 Models).
Solution: Replace battery (refer to Battery Replacement on this page).
Cause: Power failure (EAF-100 Models).
Solution: Check power supply.
44.. PPrroobblleemm:: FFaauucceett ddeelliivveerrss oonnllyy aa ssllooww ffllooww oorr ddrriibbbbllee wwhheenn SSeennssoorr iiss
aaccttiivvaat
teedd..
Cause: Water supply stop(s) are partially closed.
Solution: Completely open water supply stop(s).
Cause: Water supply stop strainer(s) clogged.
Solution: Remove, clean, and reinstall water supply stop strainer(s).
Replace strainer(s) if required.
Cause: Aerator is clogged.
Solution: Remove, clean, and reinstall Aerator. Replace Aerator if
required.
Cause: Valve is defective.
Solution: Contact the Sloan Valve Company Installation Engineering
Department at 1-888-SLOAN-14 (1-888-756-2614).
55.. PPrroobblleemm:: FFaauucceett ddooeess nnoott ssttoopp ddeelliivveerriinngg wwaatteerr oorr ccoonnttiinnuueess ttoo ddrri
ipp
aafftteerr uusseerr iiss nnoo lloonnggeerr ddeetteecctteedd..
Cause: Valve is defective.
Solution: Contact the Sloan Valve Company Installation Engineering
Department at 1-888-SLOAN-14 (1-888-756-2614).
66.. PPrroobblleemm:: LLEEDD iinnddiiccaattoorr bblliinnkkss wwhheenn FFaauucceett
iiss iinn uussee..
Cause: Battery low.
Solution: Replace battery (refer to Battery Replacement on this page).
77.. PPrroobblleemm:: - CClliicckk ddooeessnn''tt ffuunnccttiioonn ((-IICC mmooddeellss oonnllyy))
Cause: Button is defective.
Solution: Contact the Sloan Valve Company Installation Engineering
Department at 1-888-SLOAN-14 (1-888-756-2614).
88.. PPrroobblleemm:: TThhee wwa
atteerr tteemmppeerraattuurree iiss ttoooo hhoott oorr ttoooo ccoolldd oonn aa FFaauucceett
ccoonnnneecctteedd ttoo hhoott aanndd c
coolldd ssuuppppllyy lliinneess..
CAUSE: Supply Stops are not adjusted properly.
SOLUTION: Adjust Supply Stops.
CAUSE: For models with integral mixing valve — Mixing valve is set
improperly for the water temperature desired.
SOLUTION: Rotate mixing valve handle clockwise to decrease water
temperature or counterclockwise to increase water
temperature.
If further assistance is required, please contact the Sloan Valve
Company Installation Engi
neering Department at 1-8888-SSLOAN-114
(1-8888-7756-22614).
