Slugger USA101 - Parts Lists; Machine & Motor Slide Parts

machine parts list
item description part # qty
1 MOTOR/SLIDE ASSEMBLY USA101 110V U69000 1
MOTOR/SLIDE ASSEMBLY USA101 220V U69002
2 BRUSH AND CAP SET U69102 1
3 SCR, SHCS M6 X 16 UH0624 1
4 NUT, HEX M6 NYLOC DIN985 UH4607 1
5 TUBING, 1/4" X 9" UH6002 1
6 COOLANT BOTTLE ASSY. U19004 1
7 FRAME ASSEMBLY, USA101 U39100 1
8 SCR, BHSCS M6 X 25 UH0644 3
9 WASHER, SPLIT 1/4" UH2402 3
10 ENCLOSURE, USA101 PANEL INTERNAL CORD U53100 1
11 PANEL ASSY, USA101 110V U59100 1
PANEL ASSY, USA101 220V U59101
12 SCR, CRPHMS M3.5 - .6 X 12
MM SEMS UH0323 4
13 POWER CORD ASSEMBLY U59108 1
14 SAFETY STRAP U11005 1
15 SAFETY STRAP LINK U11004 1
16 MAGNET ASSEMBLY, USA101 U49100 1
17 HUB ASSEMBLY, HEX DRIVE U19002 1
18 SPOKE HANDLE U12100 3
19 SCR, SHCS M6 X 30 UH0654 2
20 SUPPORT BRACKET ASSEMBLY, USA101 U29102 1
21 ARBOR ASSEMBLY, USA101 U29100 1
22 SLIDE SHIELD U13100 1
23 SCR, BHSCS M5 X 10 UH0506 3
24 SCR, CRFHMS M4 X 10 UH0408 2
25 GUARD ASSEMBLY 100/101 U19006 1
26 HANDLE, SUPPORT M10 STUD (NEW) U13006 1
item description part # qty
1 MOTOR, USA101 110V (FOR U69000 ONLY) U69100 1
MOTOR, USA101 220V (FOR U69002 ONLY) U69101
2 PIN, DOWEL 5
MM X 14MM UH4202 4
3 USA-101 MOTOR SPACER U63112 1
4 SCR, CRPHMS M4 X 12 DIN 7985 UH0424 1
5 WASHER, LOCK M4 EXT. DIN 6798 UH2044 1
6 NUT, M6 UH4606 1
7 WASHER, SPLIT 1/4" UH2402 1
8 SLIDE, USA-101 INTEGRAL IC U63110 1
9 SCR, LHSCS M6 X 10 UH0606 3
10 SCR, SHCS M6 X 30 UH0654 2
11 SCR, SHCS M6 X 35 UH0658 2
12 GEAR RACK, STANDARD U68002 1
13 MOTOR CORD ASSEMBLY, USA-101 U59102
1
3
11
8
9
5
4
6
12
7
1
2
10
13
2
9

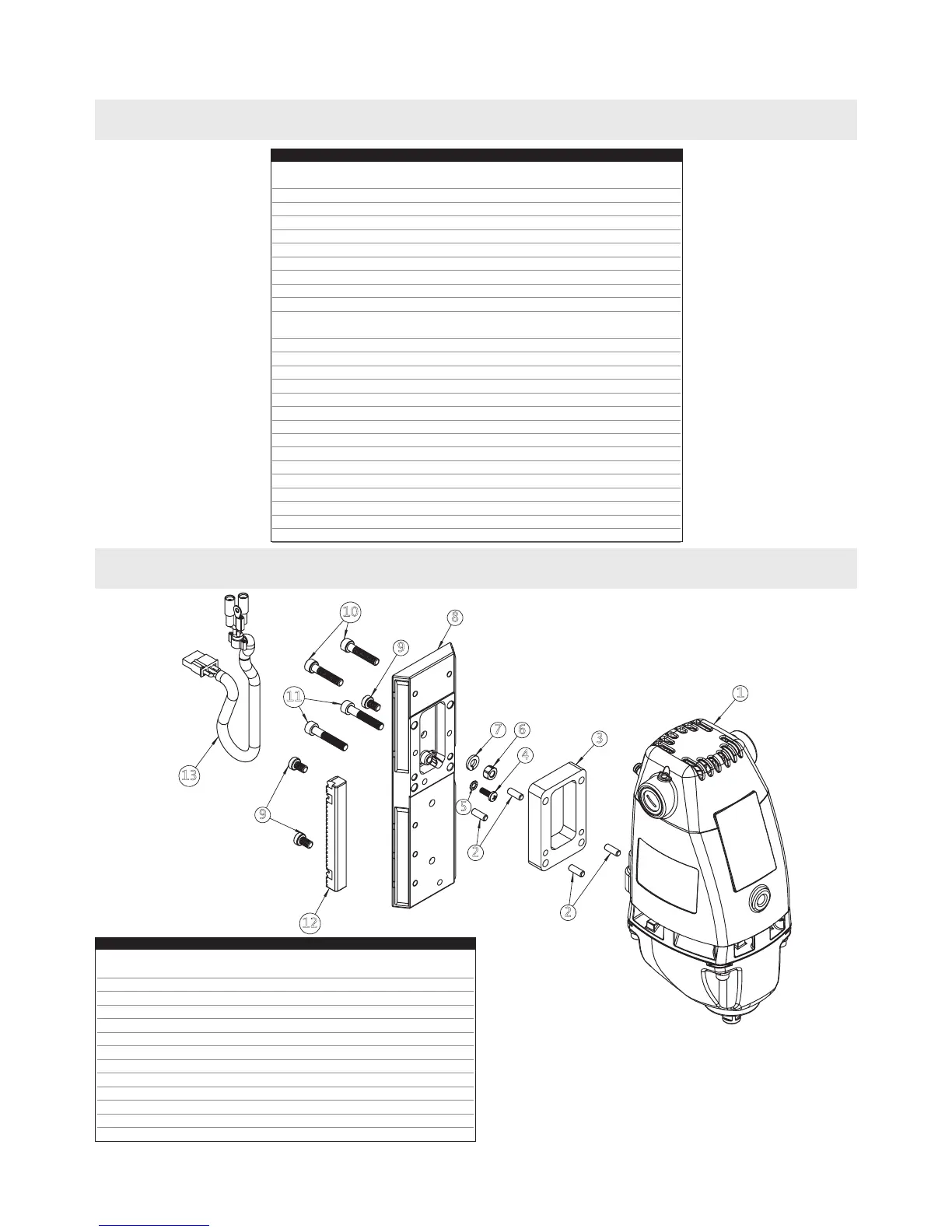

motor slide breakdown & parts list
13
