Slugger USA101 - Arbor Parts; Arbor & Support Breakdown

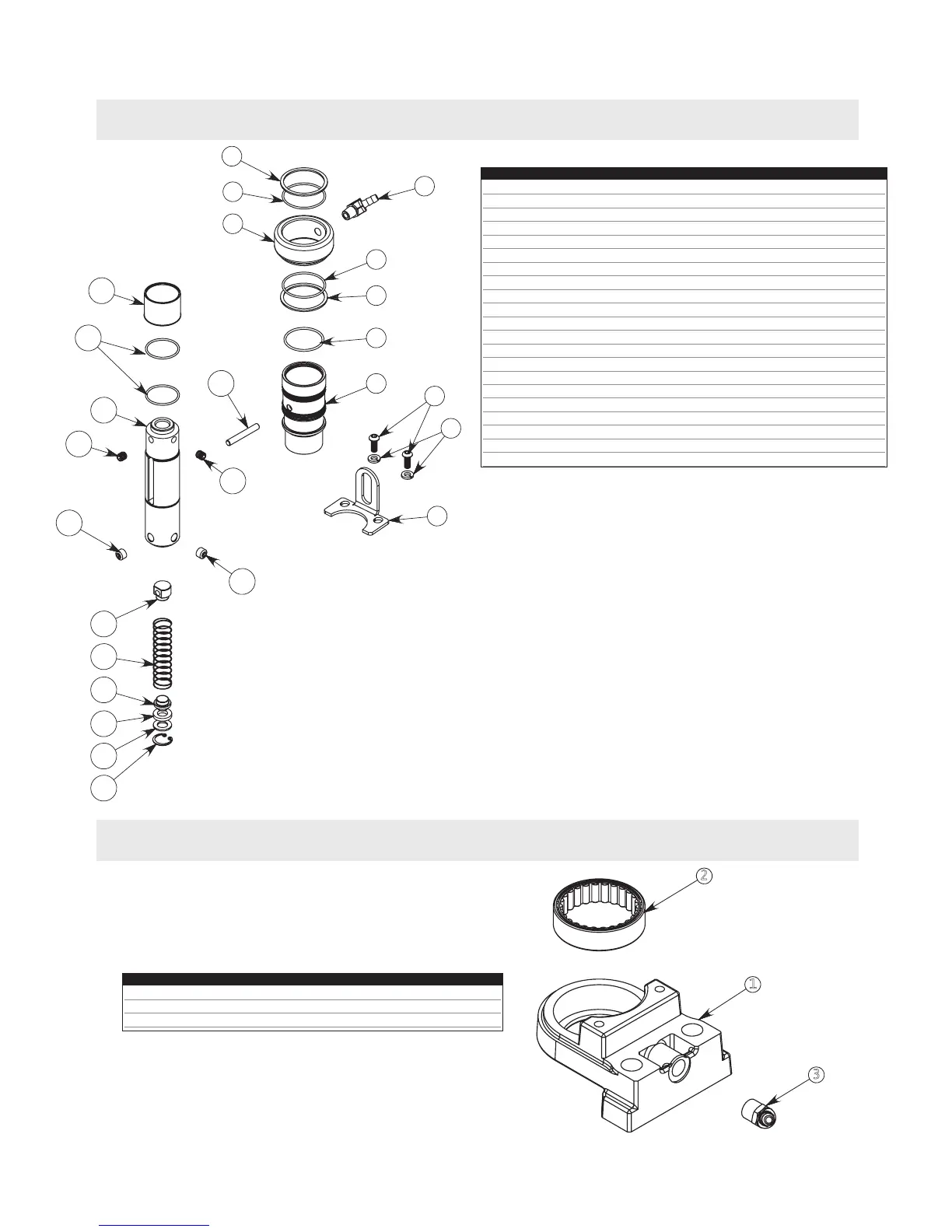

arbor breakdown & parts list
item description part # qty
1 SUPPORT BRACKET, USA-101 U23100 1
2 BEARING, ROLLER UH3208 1
3 GREASE FITTING UH6600 1
6
7
14
7
6
13
14
3
11
15
17
9
10
4
19
21
20
18
16
8
1
15
12
2
5
1
2
3
item description part # qty
1 PLATE, RETAINER WITH COOLANT FITTING SLOT U21002 1
2 WASHER, SPLIT 1/4" UH2402 2
3 SCR, BHCS M6-1 X 16
MM UH0616 2
4 SLEEVE, ARBOR SEALED U22102 1
5 O-RING 37ID X 2
MM UH6352 1
6 RETAINING RING, SPIRALOC UH4044 2
7 O-RING UH6350 2
8 FITTING, BRASS BARB 45 DEG UH6100 1
9 INDUCER, COOLANT U22002 1
10 PIN, DOWEL ØM6 X 43 UH4208 1
11 SLEEVE, EXTENSION U22104 1
12 O-RING, AS-568A-026 1.239 X .070" UH6354 2
13 USA101 SEALED ARBOR U22200 1
14 SCR, FPSSS M8 X 8 UH0804 2
15 SCR, FPSSS M10 X 8 UH0900 2
16 FIXED PISTON, JM-101 SEALED ARBOR U22108 1
17 SPRING, JM-101 SEALED ARBOR U27002 1
18 FLOATING PISTON, JM-101 SEALED ARBOR U22106 1
19 WASHER, RUBBER .750 X .410 X .125" UH2604 1
20 WASHER, STEEL .740 X .425 X .060" UH2606 1
21 RETAINING RING, INTERNAL HO-75 UH4119 1
arbor support breakdown & parts list
16
