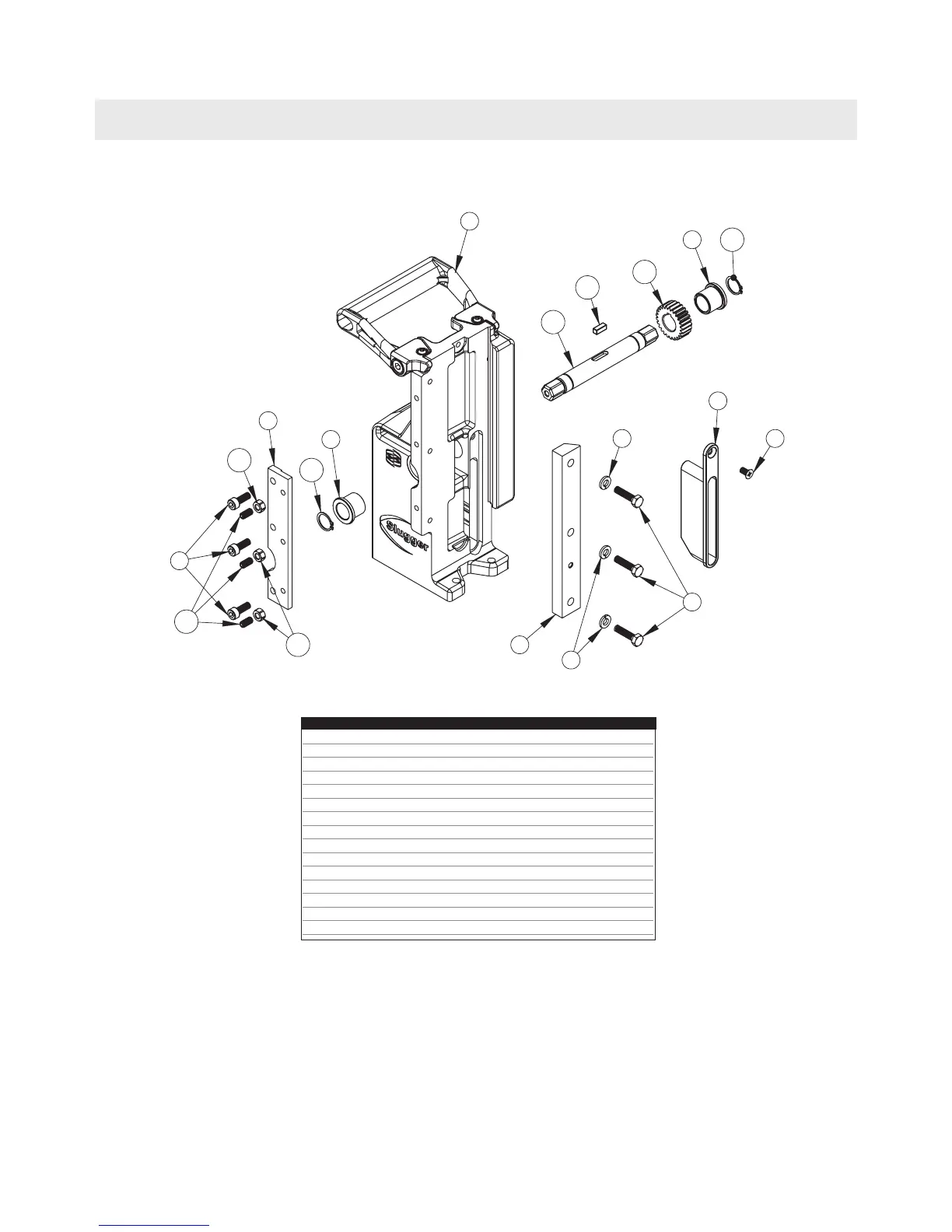

Slugger USA101 - Frame Breakdown

item description part# qty
1 FRAME/HANDLE ASSEMBLY U33100 1
2 INSULATOR, SLOT LINER U33102 1
3 SCR, CRFHMS M5 X 10 JIS 1111 UH0512 1
4 BUSHING, FLANGE 16 X 20.55 X 19.0 U32002 2
5 GIB, ADJUSTABLE USA101 U33104 1
6 SCR, HHCS M6 X 25 UH0646 3
7 WASHER, SPLIT 1/4" UH2402 3
8 PLATE, GIB ADJUSTMENT U31000 1
9 SCR, SHCS M6 X 16 UH0624 3
10 SCR, SSS M6 X 12 FLAT POINT UH0612 3
11 NUT, M6 UH4606 3
12 GEAR, PINION U18000 1
13 SHAFT, PINION HEX DRIVE U32004 1
14 KEY, SQUARE 3/16" X 1/2" UH4500 1
15 RETAINING RING, EXTERNAL SH-62 UH4016 2
frame breakdown & parts list
14
15
1
13
12
4
2
11
5
10
7
11
9
15
8
4
6
7
3
17
