item description part # qty
1 MOTOR HOUSING U63103 1
2 BRUSH HOLDER U65105 2
3 CARBON BRUSH U65106 2
4 CAP, CARBON BRUSH U65108 2
5 SSS, M5 X 5 DIN 916 UH0500 2
6 INTAKE LOUVER U61102 1
7 WASHER, LOCK M4 EXT. DIN 6798 UH2044 2
8 SCR, CRPHMS M4 X 10 - DIN 7985 UH0414 2
9 STRAIN BUSHING UH5700 1
10 SCR, CRPHMS M5 X 50 - DIN 7985 UH0560 2
11 WASHER, LOCK M5 EXT. DIN 6798 UH2054 6
12 FIELD, USA101 MOTOR 110V U65103 1
FIELD, USA101 MOTOR 220V U65104
13 FIELD INSULATOR U63104 1
14 WAVE WASHER UH2614 1
15 BEARING, BALL 608 SHIELDED UH3020 4
16 ARMATURE, USA101 MOTOR 110V U65101 1
ARMATURE, USA101 MOTOR 220V U65102
17 BEARING, BALL 6001 SEALED UH3039 1
18 SCR, CRPHMS M5 X 20 - DIN 7985 UH0544 4
19 GEARBOX COVER U63102 1
20 GASKET U61100 1
21 RETAINING RING, EXT SH-56 UH4014 1
22 KEY, PARALLEL M5 X 12 DIN 6885 UH4502 1
23 OUTPUT GEAR U68101 1
24 RETAINING RING, EXTERNAL SH-66 UH4017 1
25 KEY, PARALLEL M4 X 12 UH4504 2
26 RETAINING RING, EXTERNAL SH-46 UH4012 3
27 INTERMEDIATE GEAR U68103 2
28 OUTPUT PINION GEAR U68102 1
29 BEARING, BALL 626 SHIELDED UH3012 2
30 INTERMEDIATE PINION U68104 1
31 DOWEL PIN Ø5 X 12 UH4200 2
32 GEARBOX CASTING - MACHINED U63101 1
33 WASHER, SPLIT 1/4" UH2402 4
34 SCR, SHCS M6 X 35 UH0658 4
35 SEAL, LIP 6420 UH6302 1
36 BEARING, BALL 6003 SHLD UH3045 1
37 RETAINING RING, INTERNAL DHO-35 UH4135 1
38 SPINDLE, MOTOR U62100 1

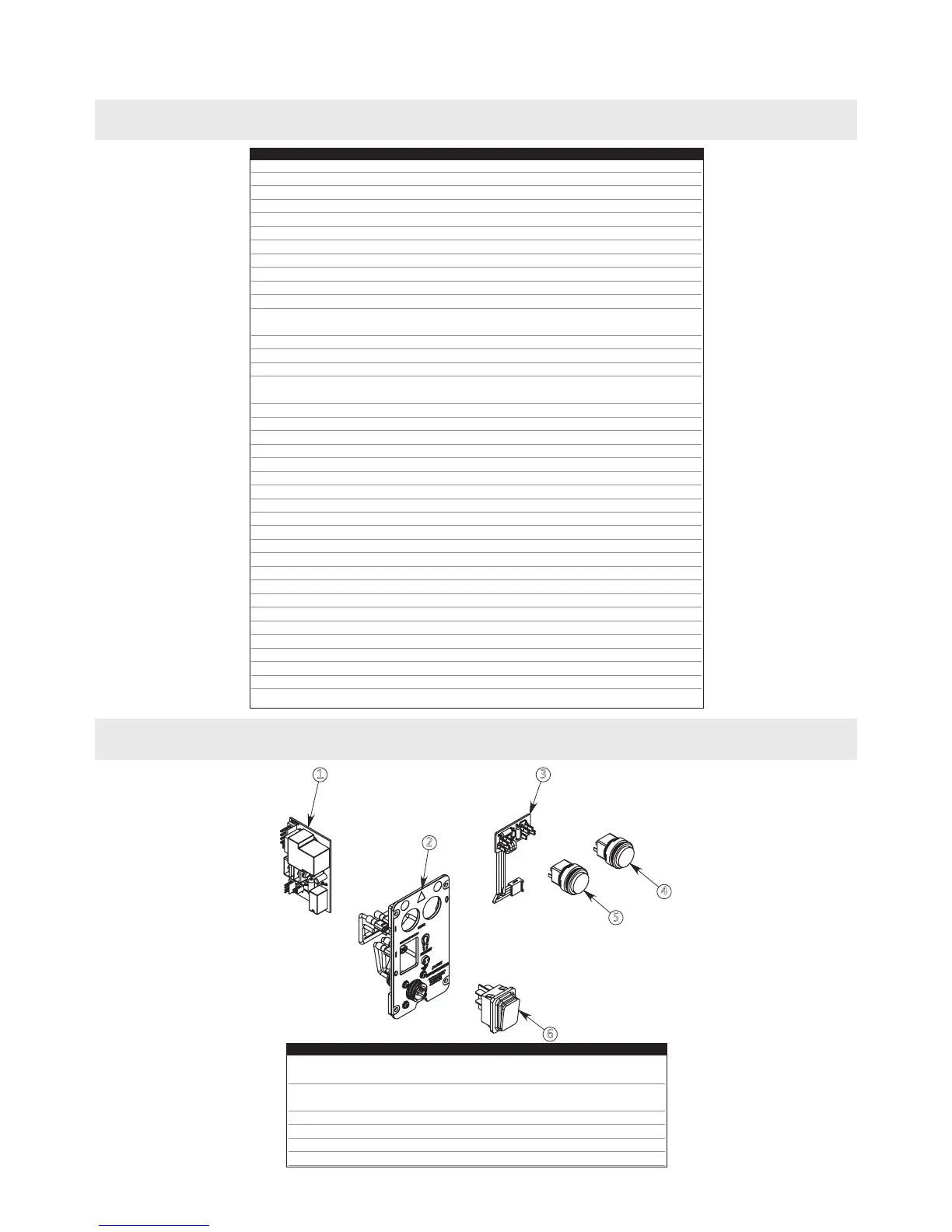

motor parts list
item description part # qty
1 PC BOARD, CONTROL PANEL 110V U55002 1
PC BOARD, CONTROL PANEL 220V U55003
2 PANEL PLATE ASSEMBLY, USA101 110V U59110 1
PANEL PLATE ASSEMBLY, USA101 220V U59111
3 PCB & WIRE HARNESS ASSEMBLY U55004 1
4 SWITCH, PUSH BUTTON RED OFF UH5504 1
5 SWITCH, PUSH BUTTON GREEN ON UH5502 1
6 SWITCH, ROCKER GREEN LIGHTED MAG UH5500 1
