You will require the information on the type label to use the 485 Data Module safely and when
seeking customer support from the SMA Service Line. The type label must remain permanently
attached to the 485 Data Module.
Symbol on the Type Label
4.3 Cable Gland
The cable gland provides a sturdy, tightly sealed connection of the cables to the inverter enclosure.
The cable gland also protects the inverter from dust and moisture intrusion.

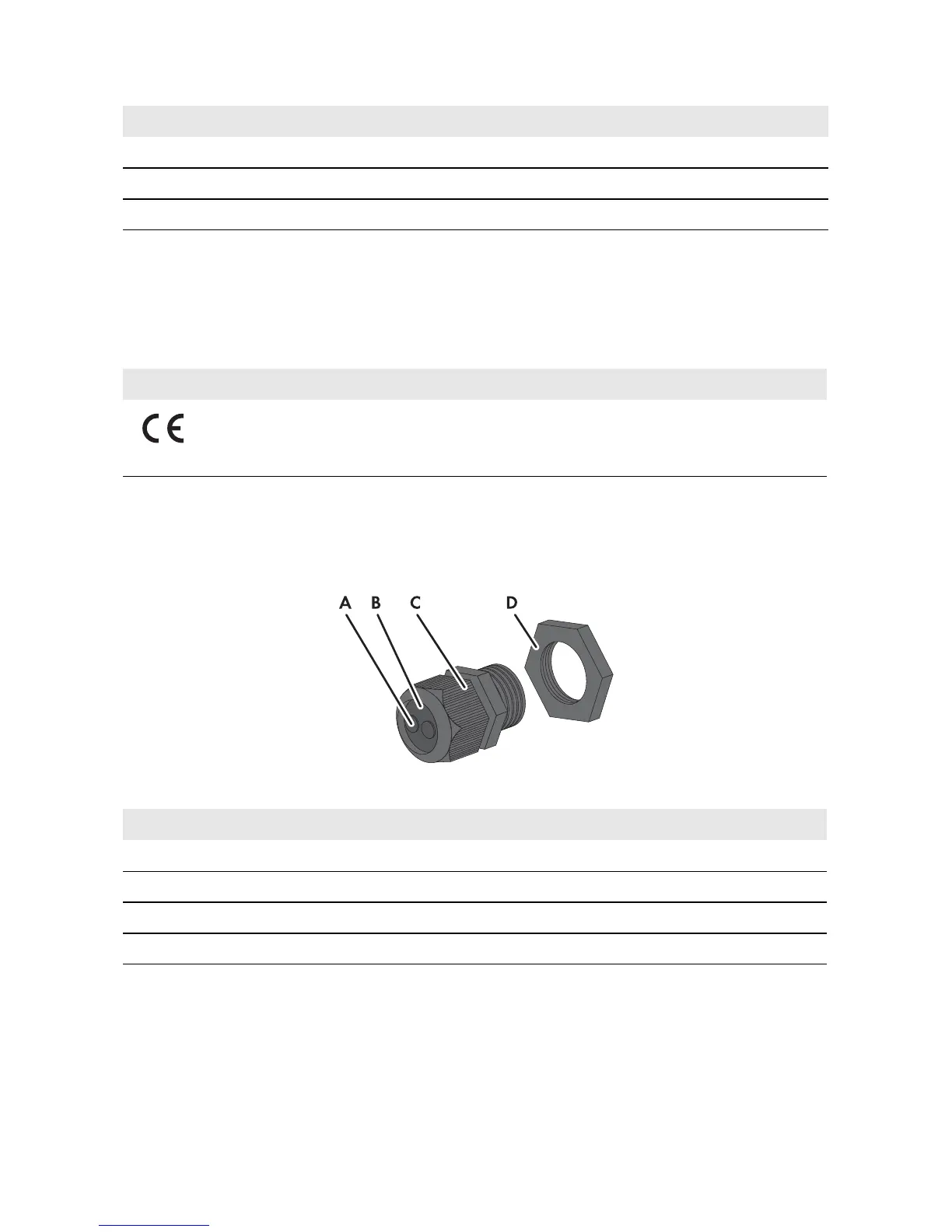

Figure5: Product description: Cable gland
Position Designation Explanation
A Serial No. Serial number of the 485 Data Module
B Version Hardware version of the 485 Data Module
CType Device type
Symbol Designation Explanation
CE marking The 485 Data Module complies with the
requirements of the applicable EC
directives.
Position Designation
AFiller plug
BSeal
CSwivel nut
DCounter nut
