SMA 485 Data Module - 5 Connection; Device Overview

SMA Solar Technology AG 5 Connection
Installation Manual 485i-Module-IA-en-19 11
5 Connection
5.1 Device Overview

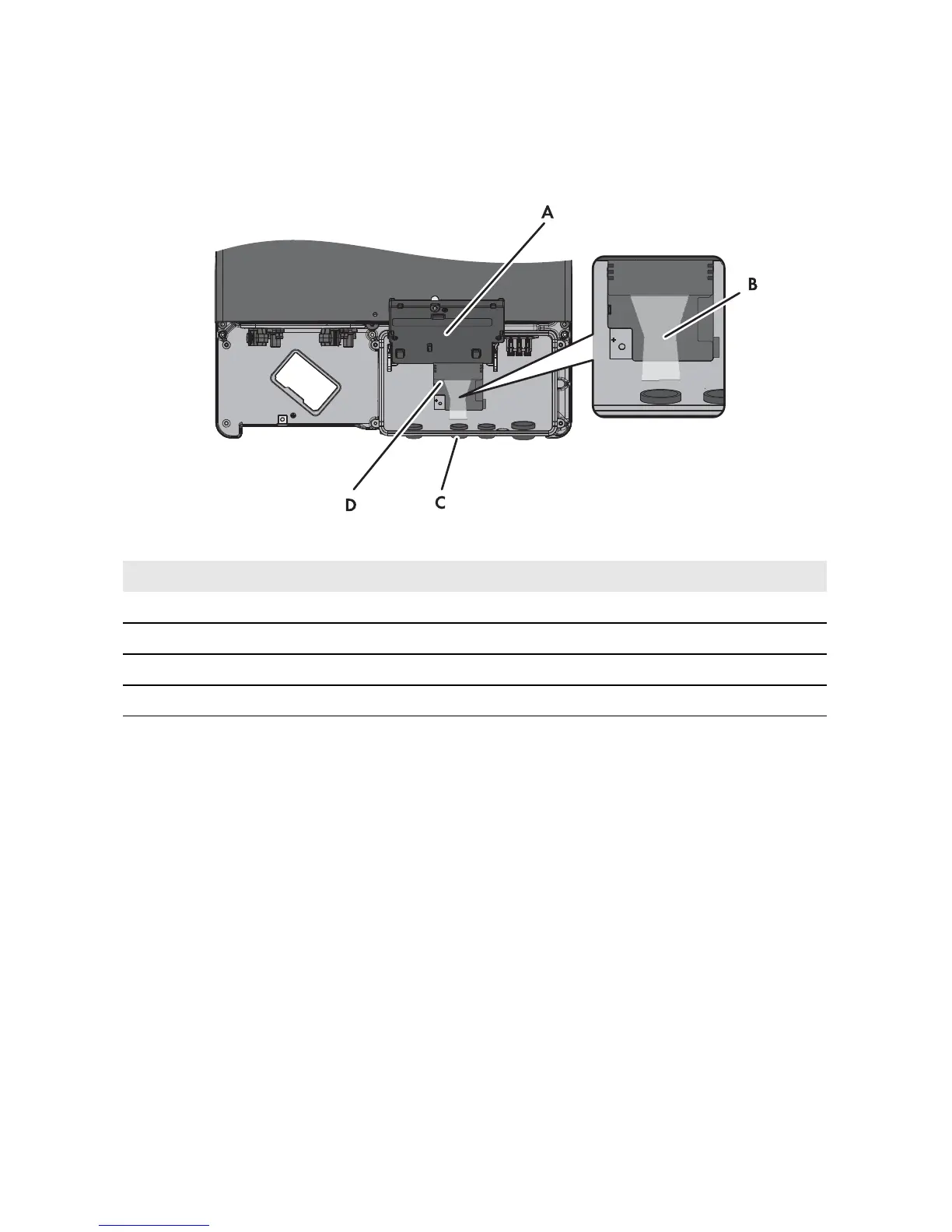

Figure6: Overview of the connection area
Position Designation
A Flipped up display with screw
B Cable route to the plugs of the 485 Data Module
C Inverter enclosure opening for cable gland
D Mounting position of the 485 Data Module in the inverter
