5 Connection SMA Solar Technology AG
12 485i-Module-IA-en-19 Installation Manual

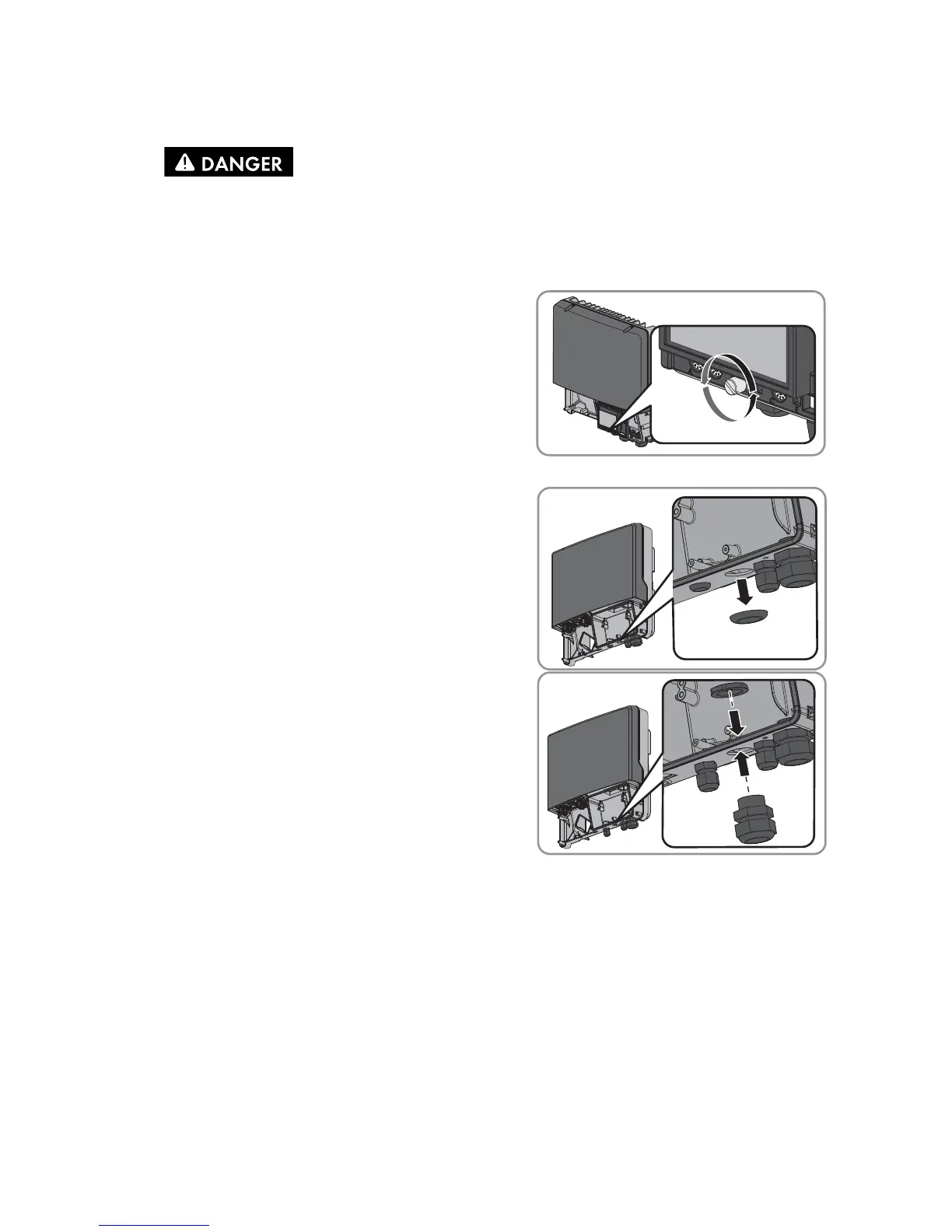

5.2 Installing the 485 Data Module in the Inverter
2. Release the screw of the display far enough to
allow the display to be flipped up.
3. Flip the display up until it snaps into place.
4. Push the pre-mounted filler plug out of the second
hole from the left in the inverter enclosure.
5. Attach the cable gland to the enclosure opening
using the counter nut.
1.
Danger to life due to electric shock when opening the inverter
Death or serious injuries
• Disconnect the inverter from all voltage sources on the AC and DC sides and open it (see
the inverter installation manual).
