SMA Solar Technology AG 5 Connection
Installation Manual 485i-Module-IA-en-19 13

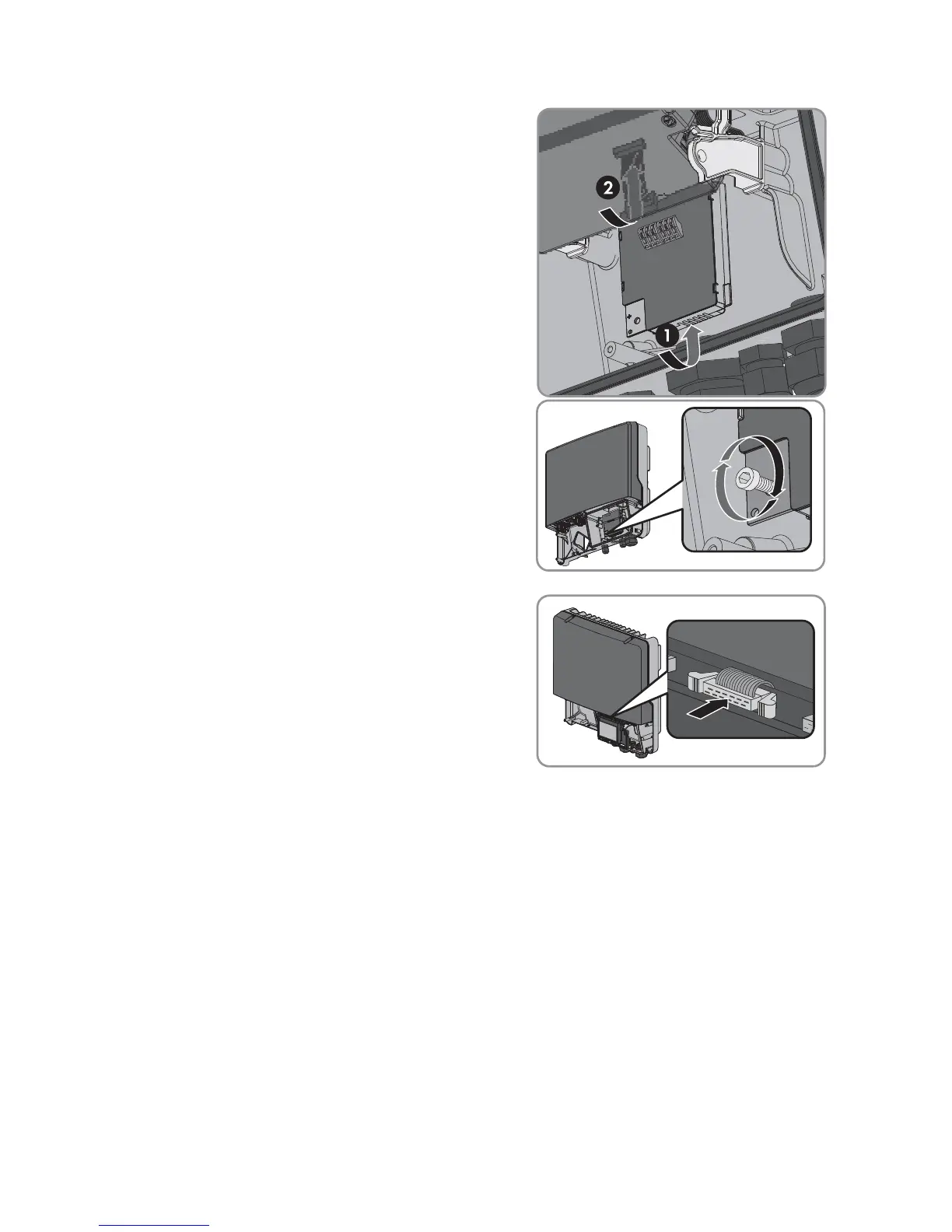

6. Insert the 485 Data Module and push the ribbon
cable upwards behind the display. The key on the
top edge of the 485 Data Module must fit into the
hole in the plastic retainer in the inverter.
7. 485 Data Module hand-tight using a hexagon
socket screw (AF 3, torque: 1.5 Nm).
8. Flip the display down.
9. Plug the ribbon cable plug onto the center
connector strip.
