4. Preparation (continued)
Contents
4.5 Preparing the SFM

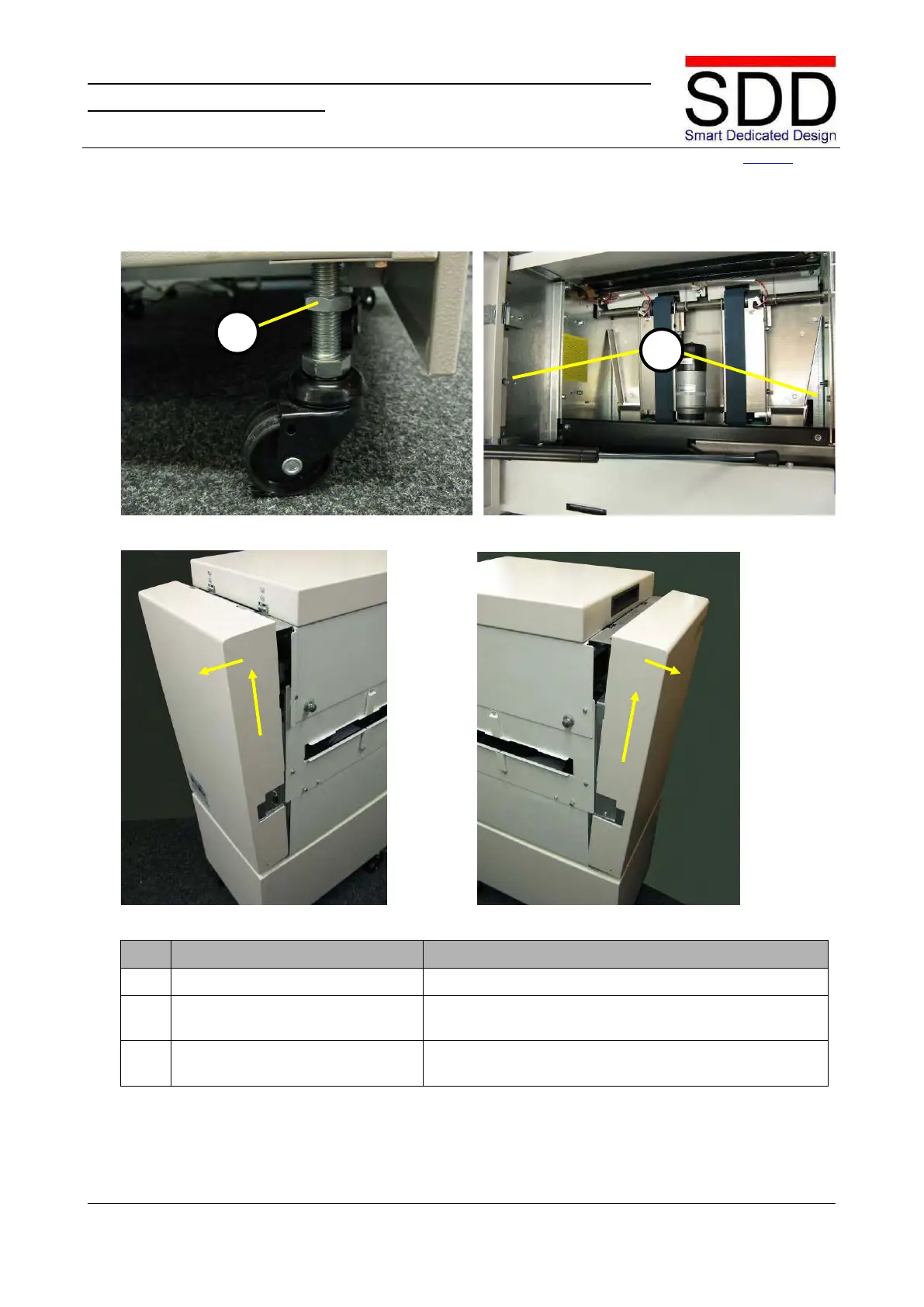

Fig. 4.5.1 Fig. 4.5.2
Fig. 4.5.3 Fig. 4.5.4
Step
Action
Remarks
1.
Loosen Upper Nuts
Loosen Upper Nuts [B] of all wheel bolts (Fig. 4.5.1).
2.
Loosen Covers
Open Top Cover and loosen bolts [B] but do not remove
them (Fig. 4.5.2).
3.
Remove Covers
Lift the Covers slightly up, swing from the top outward
and remove both from the machine (Fig. 4.5.3 & 4.5.4).
A
B
