5. Installation (continued)
Contents
5.2. Electrical Installation (continued)
5.2.5 Connecting STR to Canon Booklet Trimmer F1 / D1

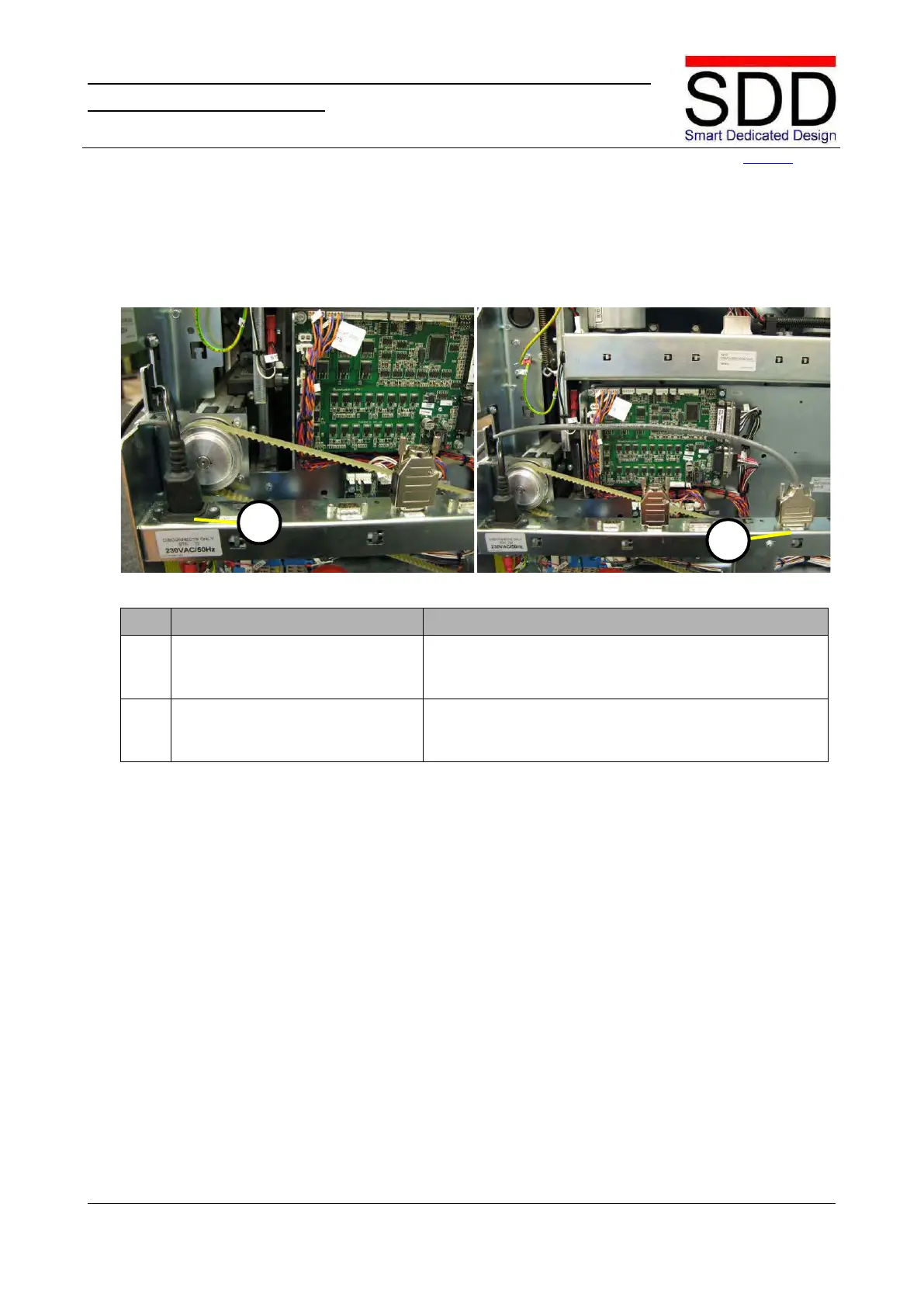

Fig. 5.2.5.1 Fig. 5.2.5.2
Step
Action
Remarks
1.
Connect Power Cable
Lead the Power cable through the slot on the front right
side into the STR and connect in socket U1 at [A] (Fig.
5.2.5.1).
2.
Connect Communication Cable.
Lead the Communication Cable through the slot on the
front right side into the STR and connect the sub-D
connector in socket J13 [B] (Fig. 5.2.5.2).
A
B
